A Five-Step Strategy to Combine Data Sources from Multiple Wearable Sensors


With the multitude of non-communicating wearable sensors, there is an urgent need to better combine wearable data streams in order to improve human health and well-being. A five-step process is proposed. The first step is to specify the human behavior that the data set will address. The second step is to critically assess primary measurement that allows the behavioral goal to be addressed. After this, other streams can be integrated in a hierarchical fashion based on their accuracy, precision and relevance. The third step is to perform a hierarchical synthesis of the multiple data streams. In the fourth step, the multiple data streams are integrated for practical use; we propose achieving this with wearable computers. The final step is that system retraining occurs, via Artificial Intelligence, so that an integrated wearable system can be individualized. A case study of Type 1 diabetes is used: this analysis and the proposed solutions illustrate the need for an urgent interdisciplinary debate to advance useful methods for combining data from divergent wearable sensors. Wearable fully integrated systems, programmed with Artificial Intelligence, will enable data from multiple wearable sensors to be optimized to improve individual well-being.

Share and Cite:

Levine, J. (2017) A Five-Step Strategy to Combine Data Sources from Multiple Wearable Sensors. Technology and Investment, 8, 33-43. doi: 10.4236/ti.2017.81003.

1. Introduction: The Wearable Sensor Market Is Growing

The $1 billion wearable sensor market is predicted to grow ten-fold over the next five years [1] . The wearable sensor market is growing for a variety of reasons [2] . Firstly, there is increasing consumer demand and availability of wearable sensors. Secondly, there is a growing acceptability for wearable sensor use in society. The most common of these are wearable sensors that monitor daily physical activity levels [3] . However, other sensors are gaining popularity such as the monitor sleep, intradermal variables and heart rate [4] . Thirdly, the cost of developing mass scalable electronics is declining, so the barrier to producing new compact wearable technologies has diminished. Fourthly, there is a growing awareness that the Internet of Things [5] will be important in society. This has propagated the advancement of big data analyses and the systems to perform these analyses [6] [7] . The wearable sensor market is expanding and it will be necessary to better integrate non-communicating wearable technologies to improve human well-being.

2. Wearable Sensors Generate Data That Vary in Format, Quality and Integrity in the Absence of a Common Analytical Approach

Wearable sensors have the capability of gathering data from different physiological variables and so could improve human well-being [2] . Data may be gathered using different technological modalities that may produce different types and quality of data, of variable value and validity [8] . Data streams may be even more heterogeneous because different companies produce sensors under variable stringencies and governed by different regulatory rule sets; for example in the U.S., subcutaneous continuous glucose monitoring requires FDA approval whereas monitoring daily movement requires no regulatory oversight [9] . Methods for analysis vary too; some data are filtered and analyzed on board the device whereas other devices stream raw data to a secondary data acquisition system [8] [9] . The quality, integrity and nature of different wearable sensors vary depending upon a multitude of factors.

3. Once Data are Gathered, the Applications of the Data are Multidimensional and Inconsistent

Some data, such as blood sugar data, may need to be accessed by both the user and a third party, such as a healthcare provider [9] . Data from movement- trackers, by contrast, is generally only accessed by users themselves for self- monitoring [3] . Despite data from diverse wearable sensors being of different types and applications, uniform safeguards are necessary [7] . Data integrity needs to be guaranteed, data particularly if health-related, needs to be private and secure and data transmission protocols need to be robust [6] [7] .

4. The Disorganization of Data Handling in the Wearable Sensor Field Makes Intelligent Analysis and Consistent Feedback Impossible

Because the entire process of data acquisition, transmission and analysis from wearable sensors is unfettered, it is impossible to integrate data for individual or third party use [8] . If airlines communicated with airports in a haphazard fashion, without agreed upon protocols, chaos would reign. Regardless of the challenge of terminal integration of multi-stranded data from wearable sensors, there have been few structured approaches to standardizing the data from wearable sensors and intelligently unifying data integration, analysis and feedback.

5. The Multiplicity of Wearable Sensors

Many wearable sensors exist and others are being developed for human use [2] . The wearable sensor field is at a critical juncture, because common approaches to integrating, analyzing and processing the multiple sources of data has not occurred. If people are to benefit, common approaches to data transmission, integration and processing will be needed.

6. Strategy to Build an Intelligent Multisensor System

In order to work through the complexity of how to integrate multiple disparate sensors it is necessary to develop a robust strategic approach. There are five steps that can be taken to integrate data from multiple wearables:

Step 1. Identify a specific problem that the data set will address

Step 2. Identify a hierarchy of data streams from wearable sensors:

1) Define a valid primary measurement to verify true events and exclude false alarms;

2) Define secondary measures in hierarchical order that contribute to the causation of true events and/or exclusion of false alarms:

a) Define the secondary measure with the highest hierarchical value that contributes to causation of true events and/or exclusion of false alarms;

b) Define the secondary measure with the second highest hierarchical value that contributes to causation of true events and/or exclusion of false alarms;

c) Define a secondary measure―with the third highest hierarchical value that contributes to causation of true events and/or exclusion of false alarms etc.

Step 3. Hierarchical Data synthesis

Synthesize data based upon a clearly defined problem that needs to be solved with an evidence-based understanding of the hierarchical value of the data sources.

Step 4. Practical integration of data streams

The data streams need to be integrated in a practical fashion that free-living people can apply outputs to their health and/or behaviors.

Step 5. System Retraining to achieve individualization

Re-training of the system needs to occur based on the presence of false positive and false negative events. Artificial Intelligence approaches can individualize the system’s algorithms.

7. Type I Diabetes Is a Chronic Disease That Serves as an Example of How Important It Is to Integrate Data from Multiple Wearable Sensors

There are a variety of reasons as to why Type I (Juvenile) diabetes is a valuable example of a chronic disease state by which we can examine the challenges and potential solutions as to how data from multiple disparate wearable sensors can be integrated [9] [10] [11] [12] [13] .

In Type I diabetes there is autoimmune destruction of the insulin producing cells in the pancreas [14] . Patients, often diagnosed in childhood, have lifelong dependency on exogenous insulin. Multiple aspects of a patient’s life affect insulin dosage; for example, if a patient overexerts him or herself without decreasing their insulin dose, they can develop low blood sugar values―hypoglycemia [15] . Hypoglycemia is a major cause of sudden death in patients with Type 1 diabetes [16] [17] . Conversely, if a patient eats too much their insulin dose may be inadequate and they become hyperglycemic (high blood glucose) [14] . It is known through multicenter trials that good control of blood glucose is associated with improved outcomes in type I patients [15] [18] . Therefore there is a lifelong need to maintain good glycemic control. Type I diabetes is a chronic disease state where wearable sensors could be useful because there are many aspects of daily living that can impact their activity level and food intake [9] .

7.1. Identification of a Specific Human Problem

We will examine the following clinical scenario: A physician is referred a 36- year-old woman with Type 1 diabetes because whilst at work she has multiple hospital admissions with low blood sugar―hypoglycemia (Figure 1. Panel A). Episodes of hypoglycemia are the commonest causes of acute harm to patients with Type 1 diabetes [15] . They can be caused by excessive insulin and/or inadequate caloric intake for the physiological state of the patient [16] [17] .

At the time of her evaluation the patient had lived with Type 1 diabetes for 23 years. She checked her blood glucose periodically with a lancet and adjusted her insulin injections accordingly. The doctor, on questioning the patient, discovered that the hypoglycemia events occurred only in the afternoons. The patient explained that in the afternoons she often had to hand deliver documents around the work campus. The doctor hypothesized that the low blood sugar events occurred because of high levels of physical exertion.

7.2. Primary Measurement Verifies That the Problem Exists

To verify that the patient indeed had low blood sugar values in the afternoons, the doctor fitted the patient with a wearable glucose monitor that measured the patient’s glucose continuously and aggregated a value every 15 minutes [19] [20] . The patient’s 15-minutely analog glucose data were converted to a digital signal (Figure 1. Panel B): When the patient had a glucose value that was high (>150 mg/dL), a +1 signal was generated. When the patient had a glucose value that was low (<90 mg/dL) a −1 signal was generated. All other glucose values were ascribed, ‘0’. This digital signal was transmitted to the doctor as a series of +1, −1 and 0 digits (Figure 1. Panel E). The data confirmed that the low blood sugar values occurred in the afternoon (Figure 1. Panel B).

Figure 1. Worked example of Type 1 diabetes and the integration of three wearable sensors.

7.3. Identify Sensor/s to Address the Primary Hypothesis

To address the hypothesis that, “low blood sugar events occurred because of high levels of physical exertion”, the doctor asked the patient wear a motion sensor to capture the patient’s daily physical activity. The patient’s daily physical activity values ranges from 6 to 22 Activity Units (AU)/min with a mean of 14 and standard deviation of 4 AU/min [8] [13] . The analog-to-digital converter for this sensor was set as follows; +1 was sent for >19 AU/min, −1 was sent <9 AU/min and all other values were assigned “0”. When the doctor (or algorithm) reviewed the outputs from the glucose monitor and the activity monitor side-by- side, +1 elevations in physical activity coincided with −1 depressions in blood glucose (Figure 1. Panels B and C). The doctor’s hypothesis was confirmed, that low blood sugar events occurred when the patient was physically exerting herself by hand-rushing documents across her work campus.

7.4. Identify sensor/s to Address a Secondary/Subsidiary Hypothesis

The patient improved by taking a larger snack before hand-rushing documents around her campus. She had far fewer low blood sugar events. However, during the summer, the doctor noticed that the patient was getting more low blood sugar values requiring treatment. The doctor hypothesized (secondary hypothesis) that the patient was getting more, low blood sugar events because of extremely high summer temperatures. The patient was asked to wear an ambient temperature sensor (Sensor 3) attached to the top of her glasses. A +1 signal was sent when ambient temperature increased by 3˚C above the rolling average for 12 hours previously, and a −1 one signal when ambient temperature decreased by 3˚C; all other outputs were 0. When the 3 digital signals were viewed alongside each other (Figure 1. Panels B, C, D), low blood sugars were influenced by high ambient temperature. The patient was advised to stay hydrated on summer afternoons at work.

7.5. Hierarchical Data Synthesis

In this example, three signals from three divergent wearable sensors were combined using an analog-to-digital conversion approach. The data format from the three sensors was different (glucose, movement and temperature), the data-ga- thering frequencies were different and data integrity was different. In the patient described above with Type 1 diabetes:

・ All 3 sets of data were transmitted together (Figure 1. Panel E) using a format that rendered the information unidentifiable, codified (without knowing the sensor configuration and the rules for +1/−1/0) and so secure.

・ The data were intelligently integrated to improve health.

・ Data of different veracity were not equally weighted. The driving data set (Sensor 1: blood glucose values) were of predominant importance because they were being used to drive the principal question. Sensor 2 addressed the primary hypothesis and so had secondary weighting. Sensor 3 addressed a subsidiary hypothesis and so had tertiary weighting.

・ The analogue-to-digital conversion described above illustrates an example of how variable data from multiple wearable sensors can be usefully combined.

The three wearable sensors in this example address a specific health problem. Exactly the same five-step approach can be used to address health questions for a person wearing 15 different sensors (Figure 2). Also, multiple different health questions can be addressed using the same sensor streams but with different prioritization and weighting.

・ The common (digitized) data format is the key starting point to integrate data from different sensors.

・ This approach is consistent with multiple companies simultaneously developing different sensors with different outputs (all outputs in this example were reduced to: +1/−1/0 format).

・ This approach enables disparate and complex data sources to be transmitted in a de-identified and secure fashion.

・ This approach enables intelligent design to drive the process for using wearable sensors to advance human welfare.

This approach for combining data from multiple wearable sensors is one simple method for combining data from multiple divergent sources. It was used here only to illustrate the challenges. Many other mathematical approaches can be used to intergrade medical signals. For example Fourier transformations are relevant in a broad series of chronic disease states such as, Alzheimer’s disease, cholelithiasis and breast cancer [21] - [26] . Similarly, the Gaussian function has been applied to cerebral ischemia, rheumatoid arthritis and chemotherapy efficacy in cancer treatment [27] [28] [29] [30] .

Regardless of the mathematical paradigm/s being applied to multiple streams of data, an organized and hypothesis driven approach is recommended.

7.6. Data Integration (Figure 2)

Although the need for integrated wearable technologies in health is discussed [4] , practical solutions are rarely expounded upon. However, relatively simple solutions do exist for integrating data from multiple wearable sensors with different data formats. For example, the Raspberry Pi 3 (https://www.raspberrypi.org/products/raspberry-pi-3-model-b/) [31] . The com- puter measures 86 × 17 × 54 mm and weighs 42 g. The system runs Linux and enables multiple inputs with high-level data processing under the ARMv8 (1.2 GHz 64-bit quad-core) processor. The Pi 3 computer has both Wi-Fi (802.11n) and Bluetooth (4.1 and Low Energy) connectivity. There are 4 USB ports, 40 GPIO pins, and a Micro SD slot. Coin cell batteries power the unit, enabling continuous use for 20 days.

Practically, complex algorithms can be written in Linux so that complex analytics can run on the fly. In medical care scenarios, such systems can communicate with the medical teams in real time, potentially using the cell phone network, to ensure medical oversight (Figure 2). It is envisaged that a wearable

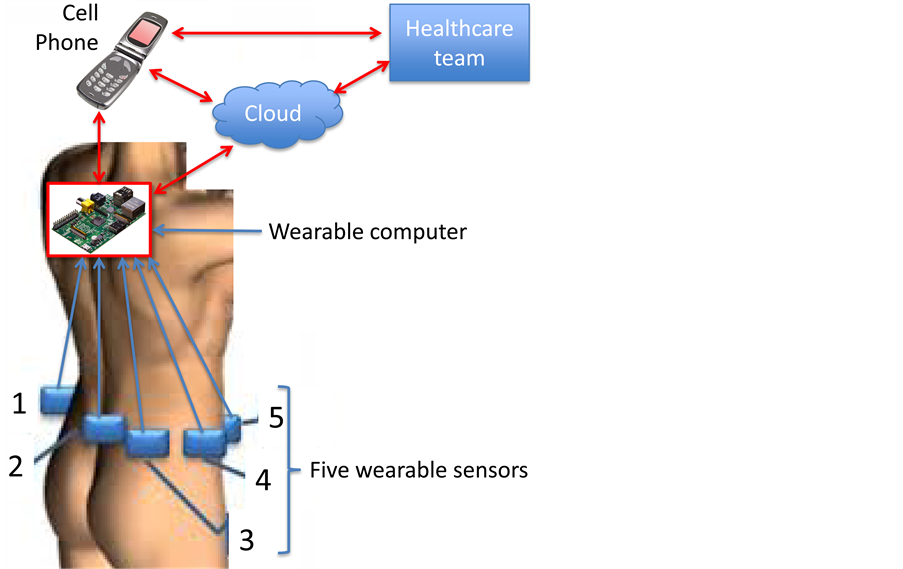

Figure 2. Example of how a multiple-sensor system can be practically integrated using a wearable computer that has WiFi and Bluetooth capability.

computer could integrate multiple inputs for multiple wearable sensors simultaneously. The Pi3 can drive outputs too, such as a personalized warning signal (e.g. “Your blood sugar is decreasing, eat something now!”) or even drug delivery [32] . Integrated signals can be used to improve personal behaviors or health [33] .

7.7. System Training

Artificial intelligence (AI) is in its infancy. Using a variety of metadata learning tools such as multi-layer perceptron neural network learning, it will be possible for multifaceted systems to improve their data analysis autonomously [34] [35] [36] . This approach is already being used to help patients with epilepsy, analyze EKGs and work out how to optimize the integration of genetic data with phenotype [34] [35] [37] [38] . AI is particularly relevant for integrating wearables because these types of complex analytics are necessary to improve true positive rates and decreases false negative rates; reflective of improved positive predictive power.

8. Conclusion

This paper illustrates the need for an urgent interdisciplinary debate to advance useful methods for combining data from divergent wearable sensors to help people. Wearable fully integrated systems, programmed with Artificial Intelligence, will enable data from multiple wearable sensors to be optimized for the individual. Integrated wearable systems may assist in the care of patients with chronic diseases such diabetes, cardiac and neurological conditions. Thoughtful integration of wearable sensors has the potential to improve the well-being and health of many people.


This work was funded by NIH grants, R42 DK085738-02, 5R01DK085516-05 and R015R01HL114024-1 and a CODE Award from Mayo Clinic Center for Innovation.

Conflicts of Interest

The authors declare no conflicts of interest.
