First Principle Study of Cubic SrMO_{3} Perovskites (M = Ti, Zr, Mo, Rh, Ru) ()

Avinash Daga, Smita Sharma, K. S. Sharma

.

**DOI: **10.4236/jmp.2011.28095
PDF
HTML
8,378
Downloads
15,580
Views
Citations

.

Lattice parameter and corresponding total free energy have been computed for cubic SrMO_{3} perovskites (M = Ti, Zr, Mo, Rh, Ru) using the first principle approach within Density functional theory. The results have been calculated using local density approximation (LDA) method. It is found that the calculated lattice parameter for all transition metal oxides are in good agreement with the available experimental data. The total free energy corresponding to this lattice constant has been calculated along with different components of the total free energy. All these calculations have been carried out using ABINIT computer code.

Keywords

Share and Cite:

A. Daga, S. Sharma and K. Sharma, "First Principle Study of Cubic SrMO_{3} Perovskites (M = Ti, Zr, Mo, Rh, Ru)," *Journal of Modern Physics*, Vol. 2 No. 8, 2011, pp. 812-816. doi: 10.4236/jmp.2011.28095.

1. Introduction

Transition metal oxides (TMO) have been for a long time the subject of intense experimental and theoretical study. Especially d-band TMO are of interest because of their catalytic properties. They form a large, rich and still not well understood class of compounds. Among the several structures of types exhibited by ABO_{3} oxides the perovskite structure is probably the most well known and widely investigated. Perovskites SrMO_{3} attracts much attention from physicists and material scientists because of the unusual combination of their magnetic, electronic and transport properties [1,2].

Strontium titanate, SrTiO_{3}, is a generic representative of transition metal oxides [3] which have perovskite crystalline structure. It is a cubic perovskite at room temperature with a tetragonal phase transition at 105 K. Another insulating perovskite is the strontium zirconate, SrZrO_{3 }[4], with 4d-electrons, which is of interest because of its high temperature electronic properties. It can be used in high-voltage capacitor applications because of its high breakdown strengths as well as high dielectric constant. In addition to this, both SrTiO_{3} and SrZrO_{3} are suitable for use in high-temperature applications such as fuel cells, steam electrolysis and hydrogen gas sensors.

Unlike SrTiO_{3}, SrZrO_{3} shows first orthorhombic (Pnma) to orthorhombic (Cmcm) at 970 K, then to tetragonal (I4/mcm) at 1100 K, and then to cubic (Pm3m) at 1400 K. This compound has a rather high melting temperature of about 2920 K; consequently it is cubic in a wide range of temperature where most of its useful applications take place.

Until recently, 4d transition metal oxides (TMO) have attracted less attention because they had the reputation of containing high density of impurities and crystalline defects and having more extended d-orbitals compared to 3d TMO they are believed to have insignificant electronelectron correlation. Yet, numerous studies have shown that this is no longer the case for some promising TMO such as ruthenates and molybdates. These oxides are observed to exhibit unconventional superconductivity [5] and research is going on to understand the mechanism [6] of this new quantum order due to strong electron-electron interaction. In addition to this, non-Fermi liquid behavior has been observed in SrRuO_{3} [7]. Pseudo gap formation [8], metal-insulator transitions [9,10] and high-voltage applications are the other significant properties which draw a considerable attention to 4d TMO.

In the present study we deal with the bulk electronic properties of SrMO_{3}-type perovskites where M stands for Ti, Zr, Mo, Rh and Ru respectively. We have chosen perovskite crystals of a very simple, cubic Pm3m symmetry, in order to keep all computational conditions simple and identical.

The density functional theory (DFT) is an extremely successful approach for the description of ground state properties of metals, semiconductors, and insulators. The computer implementations of DFT have been found to be a highly productive tool for studying complex solid state systems. Among these, the plane wave pseudopotential technique which is based on the total energy of the system has become popular as the method of choice for computational solid state physics. The success of this technique is that it has allowed us to better understand materials and processes. It has deepened the interpretation of experimental findings. It has offered new possibilities to design novel materials and devices by giving precise quantitative physical predictions.

In order to perform first-principles DFT calculations we used the ABINIT computer code. This code is open source ab initio electronic structure calculation software and has been under continuous development.

The total energy of an atomic structure can be of interest when one is looking for specific equilibrium configurations and when minima of the total energy with respect to atomic positions and/or the shape and size of the unit cell is needed. In this work we have made firstprinciples pseudopotential calculations of lattice parameter and total energy along with its decomposition into various components for transition-metal oxides SrMO_{3} (M = Ti, Zr, Mo, Rh & Ru ) by means of the Local density approximation (LDA) within the density functional theory.

2. Calculation Method

The simplest and easiest way to implement density functional approximation is a local one, in which the functional is a simple integral over a function of the density at each point in space.

In this approximation, is a sum of contributions from each point in space depending only upon the density at each point independent of other points and given by

(1)

where is the exchange-correlation energy per electron. The above relation is called as the local density approximation (LDA). In the present study we have used pseudopotential method based on density functional theory in the local density approximation (LDA).

Study of the electronic and structural properties of a solid involves evaluation of the total energy of the system. It is essential for every ab initio calculation, because most of the physical properties depend on the total energies or on the differences between these energies. As an example, lattice parameter of a crystal is the parameter that minimizes the total energy.

The ABINIT code, which is based on the DFT using plane waves and pseudopotentials, has been utilized for the total energy and lattice parameter computation. Plane waves are used as a basis set for the electronic wave functions. In order to solve the Kohn-Sham equations, conjugate gradients minimization method is employed as implemented by the ABINIT code. The exchangecorrelation effects are taken into account within the Perdew-Wang scheme as parameterized by Ceperly and Alder. Self consistent calculations generate the DFT ground state, with associated energy and density. Broyden algorithm (with sudden stop of atoms) allowed finding the equilibrium configuration of the nuclei, for which the forces vanish.

ABINIT program admits many different types of pseudopotentials e.g. Troullier-Martins type, Goedecker type, Hartwigsen-type etc. which can be used suitably. We have used Hartwigsen-Goedecker-Hutter pseudopotential included in the ABINIT package for our calculations. Hartwigsen, Goedecker, and Hutter presented a generalized form of pseudopotential, in separable form by construction, which was numerically fitted for elements up to Rn.

The considered SrMO_{3} perovskites are assumed to have ideal cubic structure (e.g. Pm3m) where atomic positions in the elementary cell are M: 1a (0, 0, 0); O: 3d (0, 0, 1/2); and Sr: 1b (1/2, 1/2, 1/2). The electronic configurations are taken Ar3d^{2}4s^{2} for Ti, Kr4d^{2}5s^{2 }for Zr, Kr4d^{5}4s^{1} for Mo, Kr4d^{7}5s^{2 }for Rh, Kr4d^{6}5s^{2 }for Ru, Kr5s^{2} for Sr and He2s^{2}2p^{4} for O. Here, the noble gas cores are distinguished from the sub-shells of valence electrons.

All of the calculations involve 5-atom cubic unit cell arranged in a perovskite structure. A dozen of input variables are needed to run the ABINIT code for the calculations. The main input variables have been listed in Table 1. First of all space group number of the perovskite is mentioned in the input file by “spgroup” parameter. Then the definition of the unit cell is included in the input file by “acell” parameter which gives the length scales by which dimensionless primitive translations are to be multiplied and is specified in Bohr atomic units. In order to define the atom types we include input variables “ntypat” and “znucl”, where “ntypat” gives the number of types of atoms and “znucl” gives nuclear charge Z of the elements.

To define various atoms we use variables “natom”

Figure 1. Cubic perovskite single unit cell.

Table 1. Main input variables of SrMO_{3.}

which gives the total number of atoms in the unit cell; “typat” which is an array that gives an integer label to every atom in the unit cell to denote its type; “xred” which gives the atomic locations within unit cell in coordinates relative to real space primitive translations. The array “typat” must agree with “xred” and “natom”.

In order to include exchange correlation functional we use “ixc” which is integer for LDA, Teter Pade parameterization. The plane wave basis set can be defined by “ecut” which is used for kinetic energy cutoff which controls number of plane waves at given k-points.

We get a good convergence for the bulk total energy calculation with the choice of cut-off energies at 25 Ha for SrTiO_{3}, at 35 Ha for SrZrO_{3, }at 45 Ha for SrMoO_{3}, at 50 Ha for SrRhO_{3} and at 60 Ha for SrRuO_{3} using 4 × 4 × 4 Monkhorst-Pack mesh grid.

We then define the number of self-consistent field cycles (SCF) by variables “nstep” which gives the maximum number of SCF iterations and “toldfe” which sets a tolerance for absolute differences of total energy that reached twice successively, will cause one SCF cycle to stop. Apart from these variables input files also include variables for optimization of the lattice parameters and variables defining k-points grids.

3. Results and Discussions

In order to predict the lattice constant a series of total energy calculations are needed. Energy versus lattice constant curve is obtained from these calculations. Then the theoretical lattice parameter is the one which corresponds to the minimum of energy.

The lattice constants of the selected perovskites SrMO_{3}, where M = Ti, Zr, Mo, Rh & Ru were calculated under constrain of cubic symmetry. Energy versus lattice constant curve for all the SMO_{3} perovskites under study are shown in the Figures 2-6.

The corresponding “acell” parameter for which minima of energy occurs is the lattice parameter for each perovskite. The results and some available experimental and theoretical data are summarized in Table 2.

The calculated lattice parameter for SrTiO_{3} is within 0.1% of the experimental results. It is also observed that calculated lattice parameter for SrZrO_{3} is within 0.8%; for SrMoO_{3} it is within 0.6% and for SrRhO_{3} it is within 0.3% of the experimental results. It is however seen that calculated lattice parameter for SrRuO_{3} is exactly in accordance with the available experimental results. Thus the calculated values are in accordance with the experimental results.

The difference in calculated and experimental values of the lattice parameter for all the perovskites under con-

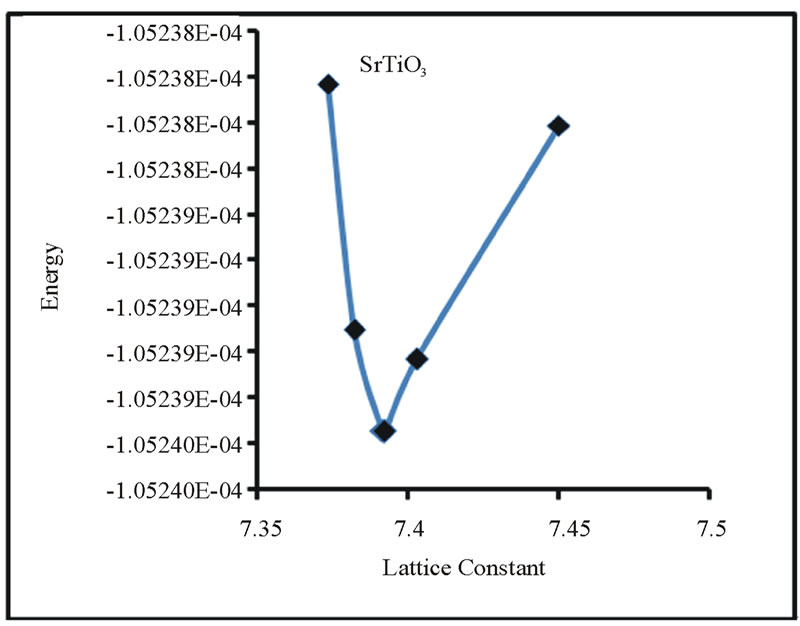

Figure 2. Total Energy versus acell for SrTiO_{3}.

Figure 3. Total Energy versus acell for SrZrO_{3}.

Figure 4. Total Energy versus acell for SrMoO_{3}_{.}

Figure 5. Total Energy versus acell for SrRuO_{3}_{.}

Figure 6. Total Energy versus acell for SrRhO_{3}_{.}

Table 2. Lattice parameter data of SrMO_{3}.

siderations is not more than 0.8% which show the relevance of this approach.

In the case of SrTiO_{3}, SrRhO_{3} & SrRuO_{3} comparisons of our results with the theoretical work of Mete et al. [11] and with the calculated values of Shein et al. [13] suggest that our pseudopotentials are as reliable and perform slightly better. Since the calculated lattice parameters are in good agreement with the experimental results, the corresponding total energy may be assumed to be correct The computed values of total free energy and the different components of the total energy for the all perovskites have been assembled in Table 3. The different components of total energy are kinetic energy, Hartree energy, exchange and correlation(XC) energy, Local pseudopotential energy, non-local pseudopotential energy, local pseudopotential “core correction” (PspCore) energy and Ewald energy.

4. Conclusions

The structural and electronic properties of five transition metal oxides, SrZrO_{3}, SrTiO_{3}, SrMoO_{3}, SrRhO_{3}, and SrRuO_{3} respectively with cubic perovskite structure are studied using an ab-initio pseudopotential method using ABINIT code.

Lattice parameters are found to compare well with the available data in the literature for all the perovskites showing the relevance of this approach. This approach can be further used in calculation of charge densities and band structures of these perovskites. A detailed description of their total free energy and its different components are given.

5. Acknowledgements

The authors (Avinash Daga and Smita Sharma) are grateful to the Principal, Dungar College Bikaner for pro-

Table 3. Components of total free energy of SrMO_{3.}

viding necessary facilities for this work. K.S. Sharma is grateful to the Director, International College for Girls (Autonomous) for the similar facilities provided for this work.

Conflicts of Interest

The authors declare no conflicts of interest.

[1] | [1] S. Takeno, T. Ohara, K. Sano and T. Kawakubo, “Novel Compositional Accommodation Mechanism in SrNbO3 by Analytical Electron Microscopy,” Surface Interface Analysis, Vol. 35, No. 1, 2003, pp. 29-35. doi:10.1002/sia.1488 |

[2] | A. L. Shaula, V. V. Kharton, N. P. Vyshatko, E. V. Tsipis, M. V. Patrakeev, F. M. B. Marques and J. R. Frade, “Oxygen Ionic Transport in SrFe1?yAlyO3?δ and Sr1?xCaxFe0.5Al0.5O3?δ Ceramics,” Journal of the European Ceramic Society, Vol. 25, No. 4, 2005, pp. 489-499. doi:10.1016/j.jeurceramsoc.2004.03.011 |

[3] | B. K. Moon and H. Ishiwara, “Formation and Electrical Proper-ties of Heteroepitaxial SrTiO3/SrVO3?x/Si(100) Structures,” Applied Physics Letters, Vol. 67, No. 14, 1995, pp. 1996-1998. doi:10.1063/1.114765 |

[4] | M. Yoshino, K. Nakatsuka, H. Yukawa and M. Morinaga, “Local Elec-tronic Structures around Hydrogen and Acceptor Ions in Perovskite-Type Oxide, SrZrO3,” Solid State Ionics, Vol. 127, No. 1-2, 2000, pp. 109-123. doi:10.1016/S0167-2738(99)00274-X |

[5] | Y. Maeno, H. Hashimoto, K. Yoshida, S. Nishizaki, T. Fujita, J. G. Bednorz and F. Lichtenberg, “Superconductivity in a Layered Perovskite without Copper,” Nature Vol. 372, 1994, pp. 532-534. doi:10.1038/372532a0 |

[6] | T. Taki-moto, T. Hotta, T. Maehira and K. Ueda, “Spin- Fluctua-tion-Induced Superconductivity Controlled by Orbital Fluctuation,” Journal of Physics: Condensed Matter, Vol. 14, No. 21, 2002, pp. L369-375. doi:10.1088/0953-8984/14/21/101 |

[7] | P. Kostic, Y. Okada, N. C. Collins, Z. Schlesinger, J. W. Reiner, L. Klein, A. Kpitulnik, T. H. Geballe and M. R. Beasley, “Non-Fermi-Liquid Behavior of SrRuO3: Evidence from,” Physical Review Letters, Vol. 81, No. 12, 1998, pp. 2498-2501. doi:10.1103/PhysRevLett.81.2498 |

[8] | Y. S. Lee, J. S. Lee, K. W. Kim, T. W. Noh, J. J. Yu, Y. K. Bang, M. K. Lee and C. B. Eom, “Pseudogap Formation in Four-Layer BaRuO3 and Its Electrodynamic Response Changes,” Physical Review B, Vol. 64, No. 16, 2001, Ar-ticle ID: 165109. doi:10.1103/PhysRevB.64.165109 |

[9] | J. S. Lee, Y. S. Lee, K. W. Kim, T. W. Noh, K. Char, J. Park, S. J. Oh, J. H. Park, C. B. Eom, T. Takeda and R. Kanno, “Optical Investigation of the Electronic Structures of Y2Ru2O7, CaRuO3, SrRuO3, and Bi2Ru2O7,” Physical Review B, Vol. 64, No. 24, 2001, Article ID: 245107. doi:10.1103/PhysRevB.64.245107 |

[10] | T. Katsufuji, H. Y. Hwang and S. W. Cheong, “Anomalous Magneto Transport Properties of R2Mo2O7 Near the Magnetic Phase Boundary,” Physical Review Letters, Vol. 84, No. 9, 2000, pp. 1998-2001. doi:10.1103/PhysRevLett.84.1998 |

[11] | E. Mete, R. Shaltaf, and ?. Ellialt?o?lu, “Electronic and Structural Properties of a 4d perovskite: Cubic phase of SrZrO3,” Physical Review B, Vol. 63, No. 3, 2003, Article ID 0304703. |

[12] | T. Mitsui and S. Nomura, “Numerical Data and Functional Relations in Science and Technol-ogy-Crystal and Solid State Physics,” Springer-Verlag, Berlin, 1982. |

[13] | I. R. Shein, V. L. Kozhevnikov and A. L. Ivanovskii, “First-Principles Calculations of the Elastic and Electronic Properties of the Cubic Perovskites SrMO3 (M = Ti, V, Zr and Nb) in Comparison with SrSnO3,” Solid State Sciences, Vol. 10, No. 2, 2008, pp. 217-225. doi:10.1016/j.solidstatesciences.2007.09.013 |

[14] | A. J. Smith and A. J. E. Welch, “Some Mixed Metal Oxides of Perovskite Structure,” Acta Crystallographica, Vol. 13, 1960, pp. 653-656. doi:10.1107/S0365110X60001540 |
