Emulating a System Dynamics Model with Agent-Based Models: A Methodological Case Study in Simulation of Diabetes Progression ()

Jack Schryver^{}, James Nutaro^{}, Mallikarjun Shankar^{}

Computational Sciences and Engineering Division, Oak Ridge National Laboratory, Oak Ridge, USA.

**DOI: **10.4236/ojmsi.2015.34019
PDF
HTML XML
3,692
Downloads
5,255
Views
Citations

Computational Sciences and Engineering Division, Oak Ridge National Laboratory, Oak Ridge, USA.

An agent-based simulation model hierarchy emulating disease states and behaviors critical to progression of diabetes type 2 was designed and implemented in the DEVS framework. This model was built to approximately reproduce some essential findings that were previously reported for a rather complex model of diabetes progression. Our models are translations of basicelements of this previously reported system dynamics model of diabetes. The system dynamics model, which mimics diabetes progression over an aggregated US population, was disaggregated and reconstructed bottom-up at the individual (agent) level. Four levels of model complexity were defined in order to systematically evaluate which parameters are needed to mimic outputs of the system dynamics model. The four estimated models attempted to replicate stock counts representing disease states in the system dynamics model while estimating impacts of an elderliness factor, obesity factor and health-related behavioral parameters. Health-related behavior was modeled as a simple realization of the Theory of Planned Behavior, a joint function of individual attitude and diffusion of social norms that spread over each agent’s social network. Although the most complex agent-based simulation model contained 31 adjustable parameters, all models were considerably less complex than the system dynamics model which required numerous time series inputs to make its predictions. All three elaborations of the baseline model provided significantly improved fits to the output of the system dynamics model, although behavioral factors appeared to contribute more than the elderliness factor. The results illustrate a promising approach to translate complex system dynamics models into agent-based model alternatives that are both conceptually simpler and capable of capturing main effects of complex local agent-agent interactions.

Share and Cite:

Schryver, J. , Nutaro, J. and Shankar, M. (2015) Emulating a System Dynamics Model with Agent-Based Models: A Methodological Case Study in Simulation of Diabetes Progression. *Open Journal of Modelling and Simulation*, **3**, 196-214. doi: 10.4236/ojmsi.2015.34019.

1. Introduction

Systems science methodologies have received increased attention in recent years in response to elevated pressures to more accurately represent complexity and actual behaviors of large-scale systems such as healthcare delivery markets. However, in the current state-of-practice of system science modeling, there exist few examples of methodologies to translate models from one type to another. Moreover, there is little guidance regarding the amount of complexity required to emulate the actual system being modeled. This situation limits the ability to approach systems science models of complex systems simultaneously from the perspectives of multiple methodologies. Our objectives here are two-fold. First, we focus on the translational barrier separating system dynamics and agent-based simulation (ABS) models. We demonstrate by example a methodology to develop a parsimonious ABS model of diabetes mellitus type 2 disease progression (ABSDM2). We show how basic elements of a validated system dynamics (SD) model of diabetes type 2 (SDDM2) can be transferred into the ABS domain in order to mimic the elementary dynamics of a health system in multi-agent space. Our baseline ABSDM2 model is referred to here as the uncoupled model because stocks and flows are assigned levels and rates according to static parameters unrelated to age, obesity and health behavior dynamics. The second objective is to formulate a principled approach to systematically enlarge model complexity to better account for available health system data, while at the same time constraining the growth of complexity of the models beyond their ability to adequately explain more data. We accomplish this objective by carefully defining a simple hierarchy of parameterized models of increasing depth or detail. The entire model system consists of three child model types, each of which have a different nesting relationship to a parent uncoupled model, as illustrated in Figure 4. Each child model inherits the basic structure of the uncoupled model, but adds model detail in different ways by focusing on different factors. Estimating parameter values for the four models was accomplished with the assistance of a global search procedure (simulated annealing).

In evaluating parameterized ABSDM2 models, we not only measure the extent to which they reproduce target behaviors as stocks and flows, but also examine the time histories of specific state variables in terms of their interpretability in light of observed trends in health status and health behavior in the SDDM2 model. These state variables (i.e., elderliness, obesity prevalence, healthy behaviors) are not quantitatively fitted to data measuring similar quantities; however, they do play a role in determining diabetes mellitus type 2 (DM2) progression. We pursue these objectives in the healthcare domain by examining the progression of DM2 in the general US adult population from 1980 to 2000. The next sections describe SD and ABS methodologies in some detail followed by a detailed description of the ABSDM2 model. After describing the methodology used to fit model hierarchy parameters to the outputs of the SDDM2 model, results are presented and explained with an emphasis on determining which factors are required to adequately reproduce the outputs of the SDDM2 model. The methodology is further illustrated with a counterfactual example. We conclude with a few general observations.

2. Systems Science Methodologies

The US adult healthcare system is an example of a large-scale complex system that is amenable to systems science approaches to analytics. Systems science methods “are designed to address complexity, that is, change over time, nonlinear relationships, bidirectional relationships (feedback loops), time-delayed effects, and emergent properties of the system―phenomena that are observed at the system level but cannot usually be causally linked to a single individual component of the system.” [1] . Two important members of this family of methodologies are agent-based simulation and system dynamics modeling.

A fundamental dynamic in healthcare delivery systems is the behavioral interaction between patient and physician (provider). This basic interaction can itself be further analyzed for various dynamic behaviors, predispositions, intervention choices, etc. A generalization beyond the patient-provider interaction has diverse additional components as described in Figure 1. The figure, itself a more detailed elaboration of the workflow defined in [2] , shows behaviors, influences, and other elements of a healthcare “knowledge core” which can be called out as modules and parameters in an individual simulation model. Each interaction between agents has its own characteristics, and modeled actions to be taken. Because many aspects of the healthcare system are not known in detail, the ABS must be constructed modularly in order to allow testing many different component models. This is done quite naturally by defining a family of embedded models that proceeds from the conceptually simple to more complex models.

A SD model is an aggregated description of a complex dynamic system consisting of a causal structure un-

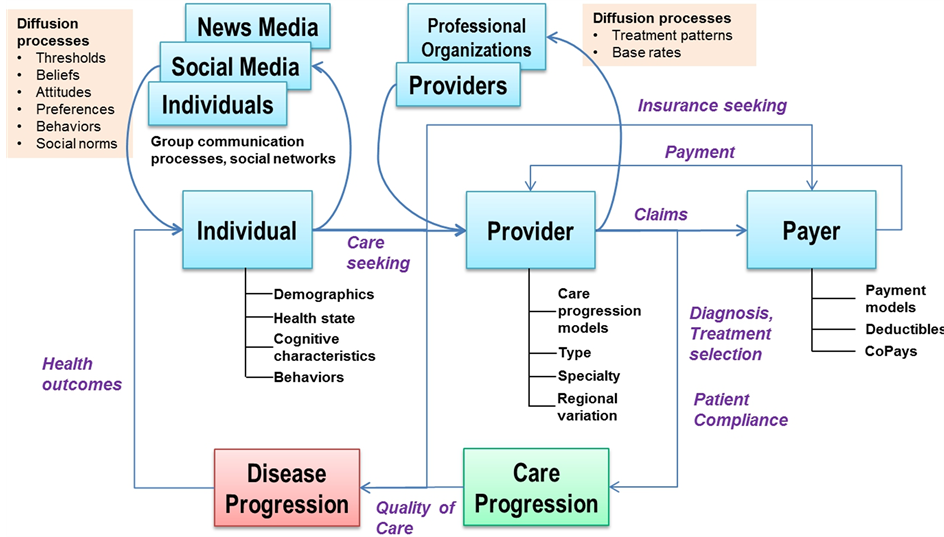

Figure 1. High-level modeling flow of healthcare delivery.

dergirded by “an interlocking set of differential and algebraic equations” [3] . Causal factors, other influences and inputs are integrated and refined by the analyst in the form of stock and flow diagrams in order to capture the essential causal structure of the system. The flows between stocks not only denote direction of causality, but outline complex feedback loops of the system. There are many software packages available to implement SD models.

The SD approach to modeling healthcare for chronic conditions is already fairly mature (e.g., see [4] -[6] ). Behaviorally significant states of diseases such as DM2 have previously been represented at a resolution appropriate for a SD model; here we build upon this work, focusing our efforts on behavioral and cognitive issues, albeit rudimentary, which have received scant attention in previous attempts to model DM2 and other chronic conditions. To demonstrate some of the advantages of policy simulation using agent-based simulation, we translated a well-known SD model of DM2 [7] into an agent-based model, and augmented the basic model with behavioral and cognitive components.

An ABS model is a “collection of autonomous decision-making entities called agents. Each agent individually assesses its situation and makes decisions on the basis of a set of rules” [8] . Instead of presenting an aggregated view of a complex system, it disaggregates the system, populating it with individual entities from the bottom-up, thereby allowing the system-level behavior to emerge from interactions among individual agents. The ABS approach benefits greatly from adopting principles of object (agent)-oriented design.

The ABS paradigm can provide a general framework to simulate healthcare systems by adhering to a more disciplined approach to ABS design methodology. Our ABS model for healthcare delivery systems relies on increasingly recognized ABS strengths [9] [10] including: 1) ability to capture and measure emergent behavior of complex systems (bottom-up instead of top-down); 2) fewer required distributional assumptions regarding times to transition between states; 3) allowance for local interactions between individual agents―non-homogeneous effects of diffusions; and 4) ability to handle health disparities and geographic variation at unprecedented resolution. It also incorporates most features on the recently formulated SIMULATE checklist, including systems, interactions, understanding, loops, agents, time and emergence [11] .

It is increasingly being recognized that SD and ABS approaches are complementary methodologies sharing a great deal of mutual ground in the kinds of systems for which they provide suitable modeling architectures [12] . SDM and ABS modeling domains converge if systems being modeled contain large numbers of active objects with at least limited agency, internal or private states, and discrete external behavior. In examining correspondences between SD and ABS approaches, one set of investigators concluded that ABS “is more general and powerful because it enables to capture more complex structures and dynamics,” and that it “provides for construction of models in the absence of the knowledge about the global interdependencies.” [13] . This is consistent with our position because we use a smaller number of structures to capture mean and covariance structures in time series health data. For example, it has been recently demonstrated how the often-used Bass diffusion model in aggregate SD models can be mimicked by a simple disaggregated ABS model where the locus of diffusion is at the individual level, and that can easily be generalized to more complex types of diffusion in order to capture multiple social influence states, heterogeneity and social structure [14] .

3. Agent-Based Simulation Implementation Approach

We elected to adopt modern software engineering best practices and methodologies that are grounded in mathematical systems theory to develop an ABS model that is robust, scalable and modular. Accordingly, we selected the Discrete Event System Specification (DEVS) formalism, itself a simulation framework derived from systems theory that defines a system as a mathematical object and provides strong guarantees for reproducibility and model verification [15] -[17] . Although DEVS has been implemented primarily as a discrete event simulation engine, it is general enough to be cast as an agent-based orientation. We used a Java implementation of the “adevs” framework to develop the models introduced in this paper^{1}.

Many existing agent-based simulation environments are founded on an underlying discrete time model as an approximation of continuous time, e.g., events and agent updates occur at equal-step discrete time intervals (e.g., the positive integers). The risk in adopting the discrete time approach is that it can trigger systematically inaccurate behaviors, diverging from the “correct” solution as the resolution of an ABS model is decreased [18] . Furthermore, there is little formal guidance concerning appropriate fixed time steps for a discrete time model in a given problem space. In order to avoid the possibility of divergent behavior we designed our ABS models such that events are scheduled in a continuous time frame, often resorting to random draws from continuous distributions such as the exponential distribution to define a time advance for scheduling a change of state. We expect that discrete event scheduling in continuous time may be particularly critical for handling diffusion of innovations or beliefs through social networks, which may diverge considerably if the fixed time step is too long. Additionally, true discrete event updating allows for asymmetric updating of agent profiles to be implemented naturally, thus avoiding scheduling issues arising from simultaneous updates of multiple (or all) agents. Although it is perfectly legal for agents to update simultaneously in discrete simulation time, logically they must update according to a strict sequence. Determining a proper update sequence is an open problem in discrete simulation. Random update orders are sometimes used to avoid systematic bias, but they are still vulnerable to introduction of additional uncertainty into simulation execution.

4. ABS Model of Diabetes Mellitus Type 2

We investigate systems science methods in order to illuminate the fine-grained dynamics of public healthcare systems. Two leading methodologies in this space are SD and ABS [19] . We build upon our research in translating a simple workforce model from an SD formalism to an ABS model [18] . First, in order to study similarities and differences between ABS and SD in the healthcare domain, we developed a basic ABS model of diabetes using an agent-oriented DEVS framework in order to reproduce the outputs of the SDDM2 model described in [7] . We selected this particular diabetes SD model because its acceptance within the healthcare simulation community and extensive validation with historical time series data. In our initial ABSDM2 there is only one agent class―the individual or diabetes patient. The model is designed in such a manner as to allow additional agent classes, e.g., primary providers, secondary providers, hospitals and payers, to be added at a later time. However, in order to address current objectives, a single agent class is sufficient.

4.1. Model Structure

The SDDM2 model incorporates seven stocks or diabetes states: normoglycemic, undiagnosed prediabetes, diagnosed prediabetes, undiagnosed uncomplicated diabetes, diagnosed uncomplicated diabetes, undiagnosed complicated diabetes, and diagnosed complicated diabetes. The distinction between undiagnosed and diagnosed states is important because health behavior presumably can be affected by diagnosis. A total of eighteen flow rates govern the dynamics of the model, including the possibility of transiting to death from any stock. Most state transitions are progressive, but there is the possibility of recovery from prediabetes. Stocks and flow rates are depicted in Figure 2 from [7] . An unpublished report by the same authors [20] contains a more detailed description of the input data to the SDDM2 model; this data was used to calibrate our ABSDM2 models.

In order to ingest stock and flow information into our ABSDM2 model, we abandoned the “tanks with liquid” metaphor from SD theory, disaggregating each stock into a population of discrete individuals, agents or patients, each with an internal state indicating their degree of DM2 [13] . The idea here is to substitute agent states for stocks. Instead of estimating continuous flow rates at global levels of abstraction, time delays for individual agents are drawn from probability distributions in order to determine when agents transition from one state (stock) to another. Mean delay time in ABS models is analogous to flow rate in SD modeling. Although any continuous distribution could be used to model delay time, for simplicity we selected the exponential distribution.

Three other important state variables were introduced into our ABSDM2 model hierarchy: obesity (true or false), healthy behaviors (true or false) and elderly (true or false). Taking all combinations of these variables, every patient agent was initialized into one of eight possible obese/behavior/elderly states. We defined several transitions between the four compositional obesity/health-behavior states as shown in Figure 3. The obesity/health-behavior state transition model is unique to the ABSDM2 modeling system and is not represented in the original SDDM2 model. The state names from left to right are healthy/not-obese, not-healthy/not-obese, not-healthy/obese, and healthy/obese. Since only a single transition may be scheduled for future enactment, if more than one is possible, the transition time associated with the lowest random draw is selected. For example, the next transition from not healthy/not obese (~H~O) is min (t_{2}, t_{3}). Since asynchronous updating was imple-

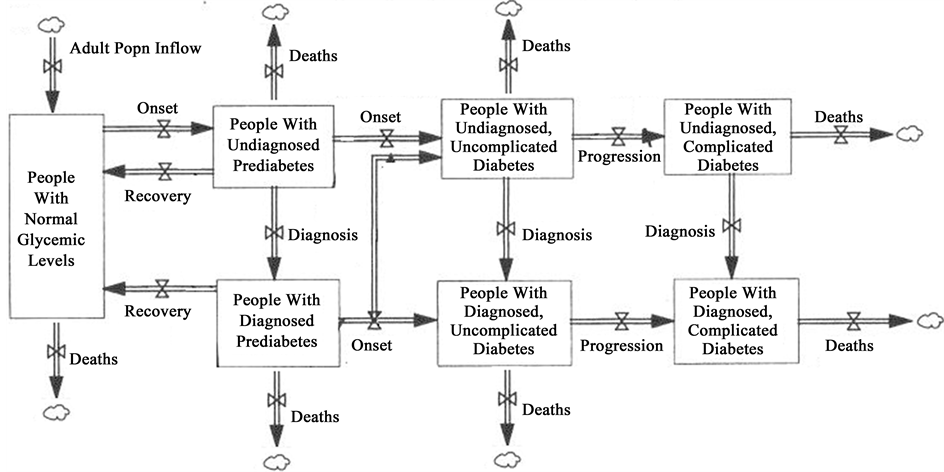

Figure 2. Stock and flow diagram for diabetes mellitus type 2 model (modified from [7] ).

Figure 3. Obesity-health behavior state transition model with formulas for expected transition times.

mented in the ABSDM2 model, random state transition times are used instead of state transition probabilities executed at constant time intervals. Furthermore, state variables can dynamically influence state transition times, i.e., disease state and behavior are coupled. Most significantly, these states are allowed to affect the disease condition trajectory; for example, sudden onset of obesity or crossing the elderly threshold can retroactively speed up the transition time for disease progression, just as adoption of healthy behaviors can slow disease progression midstream. An HO state change leads to a call of the disease state method where a revised transition time is computed. If the re-calculated transition time has already been exceeded, then disease state change will occur at the current time tick.

Figure 3 confirms that expected times to transition between H and ~H depend critically on the individual agent intent to perform healthy behaviors. Obesity transitions are merely lag functions. Actual time transitions are random draws from exponential distributions that utilize fitted model parameters β_{1}, β_{2}, δ_{1} and δ_{2}. In addition, the state transition model requires two conditional probabilities for initialization: the probability that an individual engages in healthy behaviors given they are obese, and the probability that an individual engages in healthy behaviors given they are not obese. The initial obesity fraction of the adult population is given in [20] . Consequently, the obesity-health behavior state transition model possesses six adjustable parameters.

There exists little guidance with respect to nominal computational models for intent formation and change in the agent-based simulation literature. Accordingly, we selected a parsimonious approach in keeping with our model development effort as a whole by defaulting to a linear model. The intent to engage in healthy behaviors in our model hierarchy is derived from a simplified implementation of the Theory of Planned Behavior, a popular qualitative account of intent formation. Intentis calculated using a linear weighted combination of the strength of a randomly selected inherent individual attitude with respect to healthy behaviors (0 ≤ A ≤ 1), a randomly selected individual social influence parameter (0 ≤ α ≤ 1) and the perceived normative behavior of one’s peer group. This latter factor gauges the consistency of social influence on the individual. Every agent is embedded in a random social network where each agent begins a simulation run with a constant number of contacts. The contact list grows and shrinks randomly as agents die and new agents are added to the network. Contacts for new agents are determined by random draw. Social influence develops from the strength of belief that a preponderance of contacts in an agent’s social network is engaging in healthy lifestyle behaviors. The number of contacts for each agent is a user-selected variable in the model; the default number is set at five. Agents notify their contacts immediately whenever they experience a change of healthy behavior status, but agents only assess behavior norms in their contact list periodically―an exponentially distributed variable with a mean of 0.25 years. In the current version of the model, social influence due to perceived norms (0 ≤ S ≤ 1) is simply the proportion of contacts engaging in healthy behaviors. Behavioral intent (0 ≤ I ≤ 1) is then equal to

, (1)

where (1 − α) is positive individual susceptibility to social influence. Independent influences on diabetes state are simply combined multiplicatively to calculate the mean value of the actual transition time μ_{ijk} from state i to state j in transition mode k as

, (2)

where the b_{ij} are eighteen (minus one degree of freedom)baseline mean transition times as depicted in the stock and flow diagram in Figure 2. Multiplicative factors for elderliness (E_{k}) and obesity (B_{k}) are given by

(3)

and ε_{k}, θ_{k} > 0 are model parameters that must be estimated from data. They proportionally increment or decrement by a constant factor adjustments to exponentially-distributed mean transition times in order to accommodate obesity and elderliness. Equivalently, these parameters arithmetically add or subtract adjustments to log mean transition times. Our motivation for proportional adjustment was to first try the simplest available method to implement the model. Elderliness and obesity factors are subscripted by k which denotes an element belonging to the set of transition modes M = {onset, progression, recovery, death}. Following the convention in [20] , the threshold for transition to elderly was set at age 65. Actual transition times are stochastic variables, the values of which are determined by random draws from an exponential distribution where the mean value is equal to the mean baseline transition time. For example, the actual time to transition from undiagnosed prediabetes to normoglycemia is an exponential random draw where the mean value is baseline recovery time X elderly recovery factor X obesity recovery factor. Adjustment factors E_{k}, B_{k} in excess of unity increase time to transition, whereas a value less than unity decreases time to transition. In the full agent-based model a total of 17 adjustable parameters are baselines for actual transition times, eight parameters specify adjustments for elderliness and obesity, and another six parameters are required to calculate the six obese/behavior state transition times and probabilities in Figure 3.

The SDDM2 model is actually quite detailed, containing multiple exogenous influences to the model in the form of 40 constant inputs and eleven complete time series inputs obtained from real data. These counts omit costs and unhealthy day calculations which were not replicated in our models. Some of these inputs represent details of diabetes care not included in our models, such as healthcare access, diabetes testing fractions, managed care fractions, and ability to adopt healthy lifestyles or self-monitor. Note that some of these quantities are difficult to estimate from external data sources because they measure internal cognitive states, e.g., ability to adopt healthy lifestyles. The constant and time series inputs account for 40 + 11 × 20 = 260 fixed parameters in the SDDM2 model. By way of contrast, the only time series inputs in our models were new adult rate and transition time for diagnosed pre-diabetes switching on at the 15^{th} year. The new adult rate was represented as a piecewise linearized time series from 1980 to 2000. Constant inputs to our models included initial stock levels, and initial obese, healthy behavior and elderly proportions. Instead of using a large number of inputs to capture model dynamics, we sought to reproduce outputs of the SDDM2 model by adjusting a smaller number (31 in the full agent-based model) of adjustable parameters to minimize the discrepancy between our model outputs and the SDDM2 outputs.

4.2. Initial Age Distributions

Elderliness (age > 65) of agents is an important determinant of diabetes state transition rates in the SDDM2 model. In order to determine when an agent crosses the elderly threshold, the agent class needs to keep track of its age from the beginning of a simulation run. We sought to fix the initial ages of agents in the seven stocks by random draws from a continuous distribution. We first attempted to fit the data to a lognormal age distribution, but a two-parameter Weibull provided much better fit to the grouped age data from the US census. Table 1 summarizes intermediate calculations and final values for the Weibull parameters for each stock. Age group proportions were first estimated for each stock using data from the online-only appendix Table A1 in [21] . These estimates are for 1988 to 1994; more precisely, they represent the probability of each stock given an age group. After retrieving base rates for the age groups from 1980 US census data and the initial probabilities for each stock from [22] , Bayes theorem was used to compute conditional probabilities for each age group. A normalization step was required to ensure that all probabilities summed to unity. Finally, grouped age data was fit to the Weibull distribution in order to obtain smooth distributions for initial age. The scale and shape parameters are shown here in the far-right column of Table 1.

4.3. Implementation in DEVS Framework

The agent model comprises five classes to separate clusters of agent characteristics and behaviors. The model diagram in Figure 4 shows inputs, outputs and wiring of the basic objects in the base model. Diabetes state management (movement between stocks) occurs in the Diabetes object, and the current obesity health behavior state (Figure 3) is managed from ObeseBehav. Other classes were developed to maintain specific functions: 1) the Observer collects critical time series output data and writes these data to a file; 2) Age notifies agents when they become elderly and when they are eligible to diagnose for pre-diabetes in 1995; and 3) the Poll object requests at exponentially-determined intervals (mean = 0.25 year) a new assessment of social norms prevalent in its social network from the agent. The assessment is performed by the ObeseBehav object. No communication occurs between Diabetes and ObeseBehav objects in the uncoupled (baseline) model, but behavioral models require the ObeseBehav object to transmit its state to the Diabetes object because state transition times depend on obesity state. Both these objects communicate their states to the Observer at annual intervals. The dark lines breaking the Agent borders (defined by the green dashed lines in Figure 4) communicate state information between agents in the same network in order to obtain updates on changing social norms about healthy behaviors. The agent network superstructure is denoted in the orange box, where agents share information with each other.

Table 1. Best weibull distribution fits to age groups by stock from US census data.

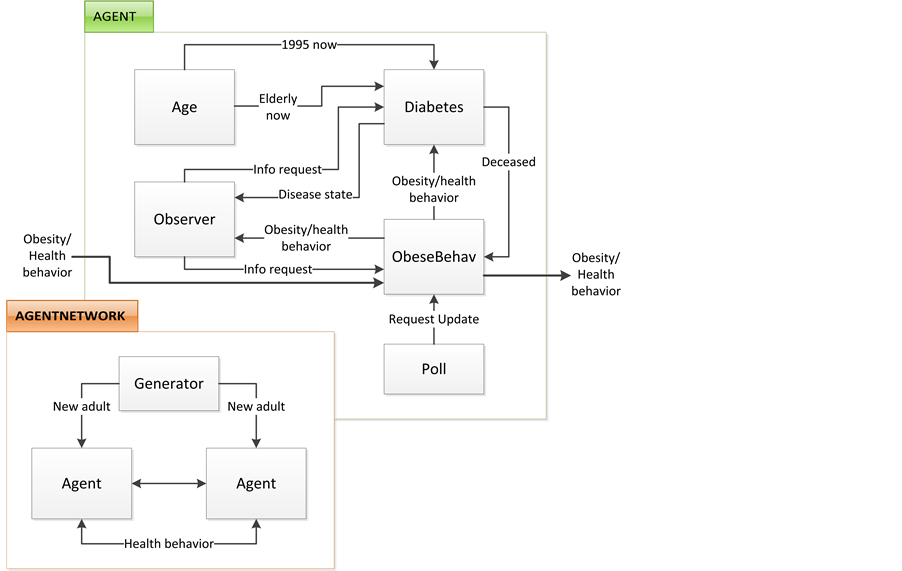

Figure 4. Base model diagram for agent-based simulation diabetes type 2 (ABSDM2).

4.4. Optimization of ABSDM2 Parameters

We optimized the values of (up to) 31 adjustable parameters for each agent-based model through application of a global optimization algorithm, simulated annealing [22] [23] while taking goodness of fit of simulation stock counts to SDDM2 model outputs at yearly intervals as the objective function. Annual stock counts were replicated as closely as possible by optimizing the adjustable parameter values over two phases of a simulated annealing procedure. During the initial optimization phase, a population of one-tenth the size of the test population was used to search for a neighborhood likely to contain a near-global minimum in the 31 adjustable parameter space. Since a single run of the model required on average approximately six seconds for the reduced population size, we completed 12,000 iterations for each model type from random initial values. Then, we used the parameter values from the best-fitting model from the restricted population to fine-tune the parameter values during the second optimization phase. The second phase used a full initial population size (0.1 percent of the US population) of 1628 agents (distributed among the seven stocks).

During both optimization phases simulation performance was based on the output of a single run. Since the model is stochastic, it would be most desirable to use a score based on the mean of a random sample of simulation runs. This procedure should reduce search time by achieving noise reduction in the model output. However, it was concluded that the amount of noise generated over a single 20 year simulation run did not justify increasing the wall clock time to complete the optimization runs by an order of magnitude or more.

The new adult entry rate was linearized into three segments using US census data from 1980 to 2000. New agents were generated at a constant rate of one agent per 0.046 days from 1980 to 1990 (2241 agents per year), 0.0412 from 1990 to 1995 (2428 agents per year), and 0.0403 (2479 agents per year) from 1995 to 2000.

4.5. ABSDM2 Model Hierarchy

The SDDM2 model is a large model that closely replicates historical DM2 outcomes data. However, the sheer magnitude of the number of inputs makes it difficult to determine which inputs are really necessary to produce a good fit to DM2 outcomes. It could be argued that large sections of the model are not really required to obtain a reasonably good fit. In developing an agent-based model system for DM2, we intended to systematically test the importance of various parameter types. With this goal in mind, a model hierarchy was created with the baseline (uncoupled) model at the root (Figure 5). The modeling system implemented the 31 adjustable parameters listed in the Appendix. The uncoupled model had seventeen adjustable parameters to replicate the stock and flow dynamics in Figure 2, but it was not connected to calculations for obesity and healthy behaviors. The three child models inherited the seventeen flow parameters from the uncoupled model. The elderly model required four adjustable parameters to modify flow dynamics factors for onset, recovery, progression and death due to aging. The behavior model also required estimates for four diabetes factors, and six parameters associated with the obesity-health behavior state transition model including four transition time parameters and two conditional probabilities. It would be possible to create a behavior + elderly model simply combining estimated parameters from the other three models, using polymorphic inheritance to fill in the values of the adjustable parameters. However,

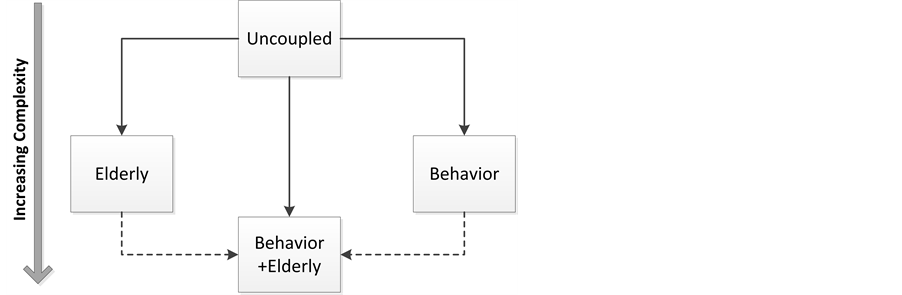

Figure 5. Model hierarchy with three offspring from the uncoupled model. Solid arrows indicate parent/child relationship. Dashed arrows denote a conceptual hierarchical relationship but the absence of a parent/child relationship with formal inheritance properties.

this method would not permit elderly, obesity and healthy factors to interact with each other. Therefore, the behavior + elderly model required re-estimation of all fourteen new parameters introduced in the elderly and behavior models.

5. Simulation Results

The four ABSDM2 models were optimized to minimize the Chi-Square statistic using GenSA, an R package for generalized simulated annealing [24] . The Chi-Square test was selected as a goodness-of-fit measure instead of ordinary least squares to assign greater weight to low population stocks while somewhat relaxing penalties for proportional errors in high population stocks. The four optimized models were then executed and statistics collected for the 20-year simulated time intervals.

Chi-square goodness-of-fit scores were assessed to ascertain whether adding model parameters significantly improved goodness-of-fit. Results are summarized in Table 2. A total of 160 stock counts were observed over the 20 year run, but only 140 counts can statistically be considered freely-adjustable cells in the data matrix. The uncoupled model had degrees of freedom = (140 − 17) = 123, and the value of the test statistic is χ^{2}(123) = 516.4, p < 0.0001. Therefore we can reject the null hypothesis that the uncoupled model explains the stock count data. In fact, all the models can be rejected under the null hypothesis that the model adequately explains the data. However, we tested to see if the elderly model significantly improves goodness-of-fit by setting the degrees of freedom equal to the six additional parameters estimated from the obtained stock counts, and taking the difference between Chi-Square statistics, i.e., χ^{2}(6) = 516.4 − 496.2 = 20.2, p = 0.003. Similarly, for the behavioral model we have χ^{2}(8) = 516.4 − 328.0 = 188.4, p < 0.0001, and the test statistic for the behavioral + elderly model is χ^{2}(14) = 516.4 − 361.5 = 154.9, p < 0.0001. We therefore conclude that the elderly, behavior and behavior + elderly models each significantly improve the goodness-of-fit over the uncoupled model, thereby providing successively better approximations to the SDDM model.

Another method of assessing model performance is to index the percent improvement in the Chi-Square statistic with respect to the parent model. Since the uncoupled model has no formal parent, we compare its Chi-Square statistic with a zeroth-order model that assumes constant stock levels set at mean values for each stock over the 20-year simulation run. The zeroth model has a Chi-Square statistic equal to 41,104.6; accordingly, the percent improvement over the uncoupled model is 98.7%, a dramatic gain. The percent improvement of the elderly model is small (3.9%), but behavior and behavior + elderly models both register moderately strong percentage improvements, 36.5% and 30% respectively. Again, we confirm that behavior-specific parameters add substantially to model performance, but elderly-specific parameters alone do not.

5.1. Predicted Stock Proportions and Counts

Overall, ABSDM2 models tracked stock proportions in the SDDM2 models quite well. Stock proportions for 20-year runs are plotted for all four models in Figures 6-13. Normoglycemic proportions declined steadily in the SDDM2 model as shown by the solid black line in Figure 6. For the first 15 years of simulation, all four models tracked that proportion reasonably well, although the behavior + elderly model tracked normal populations most closely. However, during the final five years of the run, all four models showed a reversal in the decline, posting real increases in normoglycemic proportions.

The apparent explanation for the increase in predicted normoglycemics is seen in the diagnosed pre-dia- betes stocks shown in Figure 7. The SDDM2 rate increase in this population is quite large compared to the four

Table 2. Optimization performance of four ABSDM2 models.

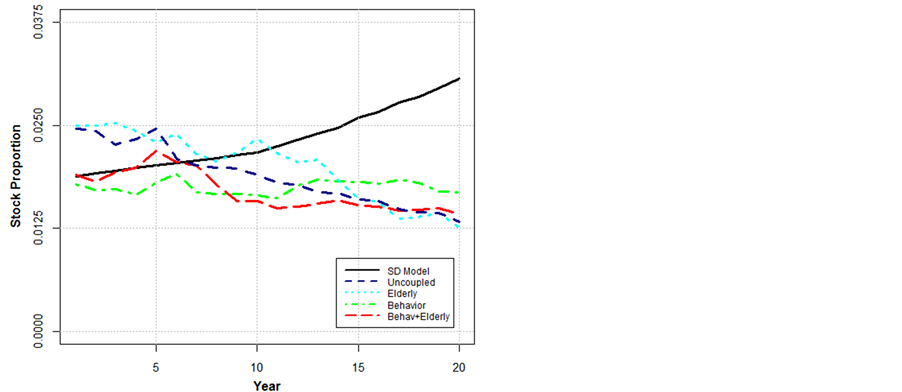

Figure 6. Normoglycemic stock proportions from 1980 to 2000.
