Electrochemical Investigation of P-Tert-Butylcalix[6]Arene Modified Gold Electrode for Ionic Detection


The aim of this work was to study the electrochemical behavior of gold electrode which was modified with p-tert-butylcalix[6]arene membrane and this in the presence of different nickel ions based concentrations in order to form a nickel electrochemical sensor. For that, impedance-spec- troscopy characteristics have been investigated. The obtained results were then modeled by appropriate equivalent circuit aiming at elucidating the electrical properties of the modified gold transducer. A correlation between the present impedimetric results and previous potentiometric ones was achieved traducing then a fast ionic transfer.

Share and Cite:

Sakly, H. , Ouada, H. and Renault, N. (2014) Electrochemical Investigation of P-Tert-Butylcalix[6]Arene Modified Gold Electrode for Ionic Detection. Materials Sciences and Applications, 5, 496-503. doi: 10.4236/msa.2014.58054.

1. Introduction

An intensive evolution in the field of the development in the determination of chemical species in solution has been observed during the last two decades. This tendency is especially noticeable in environmental monitoring and industrial process control, which requires continuous and on-site measurements [1] [2] . In order to satisfy the need of chemical, industrial and environmental analyses, the interest in chemical sensors has increased sharply [3] .

An electrochemical sensor is based on two essential components: a transducer and a sensing membrane.

Among various transducers, electrochemical transduction strategies are based on detection of changes in electron transfer caused by the chemical reactions or specific interactions between recognition elements and analytes. In particular, this detection is accomplished by using amperometric, potentiometric, conductometric (at constant voltage), or impedimetric (at alternating voltage) devices [4] -[7] .

Owing to their recognition properties, calixarenes [8] -[10] with their natural basket-shaped cavities have already found application in the design of chemical sensors using an electrochemical transduction [11] -[13] .

Their cavitary structure, allows them to form complex inclusions with various chemical species. The selectivity of calixarenes depends on the nature of the polar or unpolar functional groups on the edge of the cavity but also on the size of the cavity.

The direct result of this potential of calixarenes was using them for creating electrochemical sensors. The selective recognition of some cations is undoubtedly the most developed use of calixarenes. There are commercial selective electrodes which determine the sodium level in blood but the calixarenes also form complexes with potassium, cadmium, lanthanide, actinide, silver, lead, calcium, copper, zinc, mercury, being used for detecting the level of air or water pollution, in toxicology or clinical analysis [14] -[16] .

Besides its use as transduction principle in the field of chemical sensors [17] , the electrochemical impedance spectroscopy technique has become of compulsory use to describe and investigate kinetics and electrochemical interfaces of any electrode system [18] -[20] . This technique allows to characterize both resistive and capacitive proprieties of materials based on perturbation of a systems at equilibrium by a sinusoidal excitation signal of small amplitude, the measurement are carried out at different frequencies analyses of the system response contains informations concerning the interface [21] [22] .

Starting from the fact that nickel interact selectively with p-tert-butylcalix[6]arene [23] , this study intends to investigate the electrochemical behavior of p-tert-butylcalix[6]arene modified gold electrode using the impedimetric characterization. A correlation between the present results and the potentiometric ones previously reported is proposed.

2. Materials and Methods

2.1. Materials

In this study, gold electrodes were used as transducer and p-tert-butylcalix[6]arene (C6) membrane as ionophore.

Calixarenes are macrocycles formed by cyclooligomerization of phenol and formaldehyde. In such molecules, the lower rim is already functionalized with hydroxyl groups, and the upper rim bears alkyl groups: the tertbutyl. Now they can be synthesized in a rich variety of ring sizes and substitution patterns. Their ability to complex cations, anions, and neutral molecules has made them a standard among supramolecular host molecules [8] .

Calixarene solubility in many organic solvents, such as chloroform, enables their deposition on gold substrates using the spin-coating method. Therefore, all coatings were performed with a spinning velocity of 2500 rpm and a spinning time of 60 s.

The active surface (S) of the gold working electrode was about 0.3 cm2. Gold electrodes were cleaned for about 5 min in a sulfochromic mixture [24] . After this treatment the electrodes were rinsed with ultra pure water in order to remove any impurities. Calixarene spin coated gold electrodes were then conditioned in a 10−3 M solution of the nickel ion for 15 h before measuring.

As electrolyte, ammonium acetate () was used in order to avoid any interference from the electrolyte ions in the ionic equilibrium at the sensitive interface and thus any interference with the ions to be analyzed. As the calixarene cage is hydrophobic and the ion is hydrophilic, the latter cannot enter in the cavity of the calixarene. Moreover, the electrolyte (pH 7) allows preservation of the intramolecular hydrogen bonds between the hydroxyl groups which are responsible for the calixarene conformation [25] .

2.2. Methods

The electrochemical experimental measurements within this study were performed using computer controlled electrochemical system (Voltalab 40 impedance analyzer from Radiometer Analytical SA, Villeurbanne, France). All the experiments were performed with a 10 mV signal for the amplitude modulation and a frequency range of 100 mHz - 100 KHz, the impedance data were calculated with a computer program.

These measurements were performed at room temperature 23˚C - 25˚C.

The analysis of the impedance data was done by using the Z-View2 software, and then the equivalent electric circuits were obtained. The parameters of the equivalent circuit were optimised to ensure the best fit of the experimental data over the entire frequency range [26] .

For the electrochemical sensor characterization, the C6 modified gold electrode (the working electrode) has been mounted into a plexiglas measuring electrochemical cell in contact with the analyte solution: the ammonium acetate (). A saturated calomel electrode (SCE) was used as a reference electrode and a platinum grid as a counter electrode. The latter presented a large dimension in order to neglect counter electrode impedance in Randles electric circuit [27] .

Freshly prepared nickel standards from 10−6 M to 10−1 M were used in order to determine the electrochemical behaviour of the modified transducer.

Water contact-angle measurements have been performed before and after the functionalization process of the gold electrode with a model contact angle instrument (Digidrop) from GBX (Romans, France) [28] . Every reported contact angle measurement represents an average value of at least four separated drops on different areas of the given wafer. The size and volume of the drops were kept constant since it is known that variations in the volume of the drops can lead to inconsistent contact angle measurements [29] .

3. Results and Discussion

3.1. Contact Angle Measurements

In order to check the effectiveness of the functionalization process, contact angle measurements, obtained with water as test liquid, have been carried out for the modified gold electrode. The wetting properties have been compared before and after the functionalization process (Table 1).

We notice that the contact angle increases after functionalization proving that the C6 molecules have been well deposited on the gold electrode surface.

3.2. Electrochemical Characterization of the Calixarene Modified Gold Electrode

Sensing properties and selectivities of C6 towards nickel were largely investigated in previous paper [3] . Both complementary character of the macrocyclic cavity (shape, size, number of bonding sites) and the cationic target determine the structure of the complex formed.

In the first time, experimental conditions were optimized in terms of voltage and frequency; for a polarisation −0.9 V/SCE and a frequency range of 100 mHz to 100 kHz.

The impedance measurements realized before and after the membrane deposition presented in the complex plane are shown in Figure 1.

We can see that at high frequencies the impedance is not modified however, at low frequency, the impedance of the electrochemical system decreases; this renders possible the observation of the ion exchange sensitivity influence especially at low frequency.

A comparison of complex impedance plots of nacked gold electrode and C6 covered gold electrode shows the effect of the absorbed C6 layer on the ac response. For a C6 covered electrode, Rct, which is the diameter of the semicircle at high frequency, is clearly greater than Rct due to an inhibition of C6/gold electrode to electron transfer.

In the presence of nickel ions (Figure 2), we can notice that at high frequencies the impedance of C6 modified gold electrode is not modified. However, at low frequency, the impedance of the electrochemical system decreases significantly with increasing concentrations of Ni2+.

In the Nyquist diagram (Figure 3), the approximate form is a semi-circle, which indicates that the electrochemical system can be represented by a parallel circuit of resistive and capacitive components. These components correspond to the membrane resistance (Rm) (significant part of the sensor) and capacitance (Cm). It seems that the C6 film creates a barrier to ion transfer, preventing thus their access to the gold electrode.

Such electrical behaviors of the C6 based impedimetric sensor was interpreted by computational analysis using the Zview program [26] , and expressed by the following equivalent circuit: [R1(CPE1R2)] where R1 stands for the aqueous solution resistance, R2 for the film resistance and CPE1 for constant phase elements [30] -[32] . The latter is a non-ideal capacitance that takes into account the interfacial irregularities (porosity, roughness, and

Table 1. Contact angle before and after functionnalization process of gold electrode.

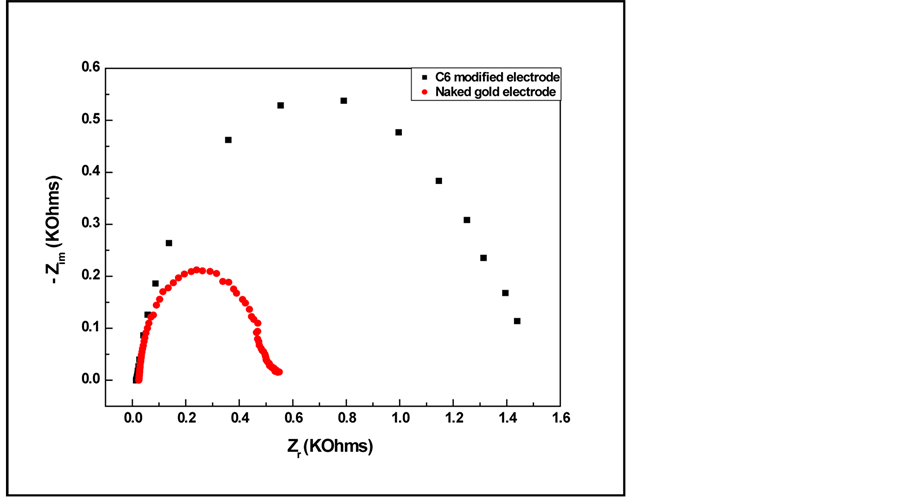

Figure 1. Nyquist plots for naked gold electrode and C6 modified gold electrode.

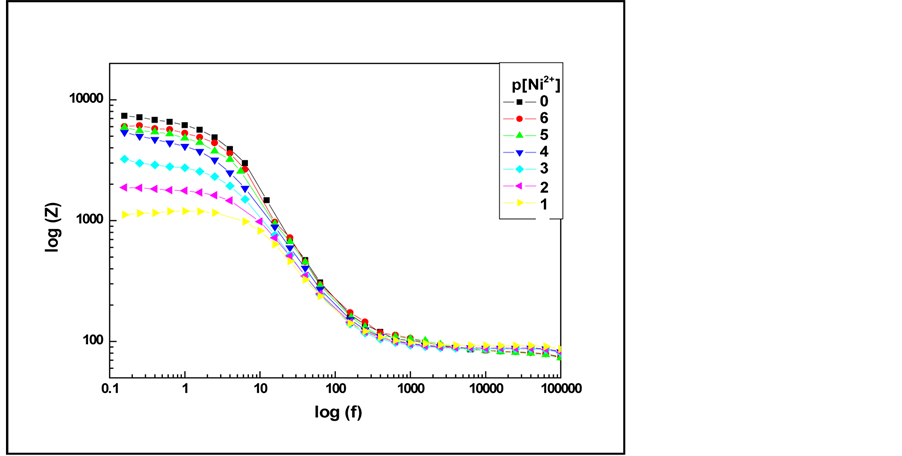

Figure 2. Evolution of Bode spectra of C6 modified gold electrode vs. concentrations of Ni(II).

geometry). Its impedance is defined as ZCPE = −1/(jωQ)n. The pure resistances, Warburg terms, capacitances and inductances corresponding to n = 0, 0.5, 1, −1, respectively.

In our case, according to the result of the fit n is close to 1 then CPE1 is a pure specific capacitance attributed to the calixarene film itself.

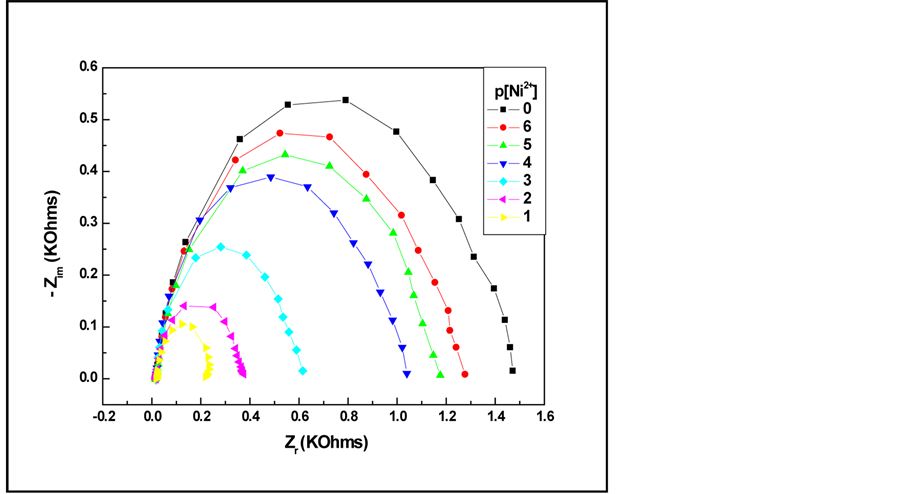

Figure 3. Evolutions of Nyquist spectra of C6 modified gold electrode vs. concentrations of Ni(II).

It is important noteworthy that the semi-circle decreases when increasing concentrations of nickel (in the range from 10−6 M to 10−1 M). This sequential change of the impedance with the cologarithm of nickel concentration (p[Ni2+]) indicates that the modified gold electrode is p[Ni2+] sensitive.

When p[Ni2+] increases, the concentration of Ni2+ at the electrode decreases and the thickness of the electrical double layer increases due to the lower charged ion concentration, resulting in the decrease of the double layer capacitance.

To obtain the calibration curve of the Ni2+ sensor, we have plotted the variation of Rm versus Ni2+ concentration in a semi-logarithmic scale (Figure 4). Rm corresponds to the membrane resistance obtained from the fit at different concentrations of the detected ion.

By linear curve fitting, the detection sensitivity is determined by the slop of the line to be −1116 KOhm per decade concentration of nickel.

From the obtained data, it is seen that the impedimetric calixarene sensor presents a linear dependence of the sensor signal with a detection limit of about 10−6 M.

3.3. Comparison of Proposed Sensor with Other Reported Sensors

At this stage, a comparative study was established using previous results obtained with other transducers such as Electrolyte/Isolant/Semiconductor (EIS) heterostructures in which the semiconductor has a flat (Si/SiO2/C6/ Electrolyte) or a porous structure (Si P/SiO2/C6/Electrolyte) with respect to some characteristics such as low detection limit and linear range. The mentioned comparisons are shown in Table 2.

As it is clear, by using gold electrode as transducer the detection limit is larger than those obtained with flat or porous heterostructures.

Besides, the closer Nernstian responses (with respect to the Nernst law) [33] that were obtained with the previously studied potentiometric sensors could be correlated with the present impedimetric sensor. Indeed, the appearance of a single semi circle in impedance plots traduces the Nernstian response. This phenomenon is interpreted by a fast ion exchange that occurs at the p-tert-butylcalix[6]arene/electrolyte interface, correlated to the high conductivity of the film.

4. Conclusions

Electrochemical characterizations of a C6 modified gold electrode have been reported in this work. Impedance

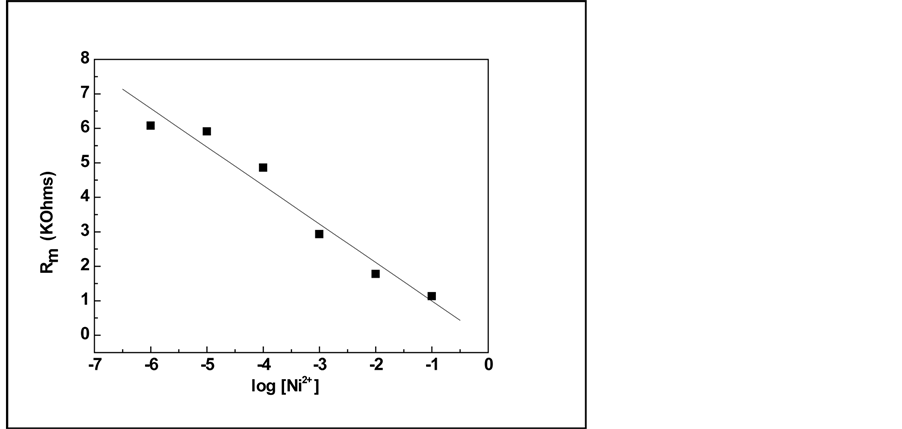

Figure 4. Variation of the p-tert-butylcalix[6]arene membrane resistance against the nickel concentration.

Table 2. Comparison of proposed sensor with some recently reported works.

spectroscopy was used to characterize the proposed structure.

It was shown that by using gold electrode as transducer the detection limit is larger than those obtained with flat or porous heterostructures.

On the other hand, and by combining our impedimetric results with potentiometric ones that were previously reported, a good correlation is obtained. The nernstian response is correlated with the appearance of a single semi circle in Nyquist plots. This phenomenon traduces thus a fast ionic exchange taking place at the calyx[6] arene/electrolyte interface.
