Regeneration of the Catalysts by Supercritical Fluid Extraction


The decontaminating of catalysts nickel on kieselguhr, activated aluminum oxide and palladium catalyst LD-265 agent’s nature was analyzed. The possibility of catalyst’s regeneration was examined using supercritical CO2 extraction. Regeneration of coked catalysts was carried out at 70oC and 150oC in the pressure range 10 - 30 MPa by pure and modified supercritical CO2. Methanol and dimethylsulfoxide were used as modifiers (co-solvents) of supercritical CO2. The kinetics of supercritical CO2 regeneration process was studied. The activity of regenerated catalysts was measured.

Share and Cite:

Gumerov, F. , Sagdeev, A. , Gallyamov, R. , Galimova, A. and Sagdeev, K. (2014) Regeneration of the Catalysts by Supercritical Fluid Extraction. International Journal of Analytical Mass Spectrometry and Chromatography, 2, 1-14. doi: 10.4236/ijamsc.2014.21001.

1. Introduction

Catalysts are one of the most high-tech and fast enough renewable products. Catalysts efficiency and the duration of their work determine the level of chemical technologies. Often due to the lack of effective methods of catalyst regeneration, many of these products are destroyed after a single use. Therefore, catalyst regeneration is one of the main problems in providing technical and economic efficiency of the vast majority of oil refining and petrochemical processes.

At chemical plants, the coke deposited on catalysts is traditionally removed by oxidative regeneration, which consists in the controlled burnout of coke by gaseous mixtures containing oxidizers (oxygen) at catalysis temperature or higher. However, the regeneration with an oxygen containing gas or thermal treatment with direct steam are multistage, time and energy consuming processes.

In our opinion, one promising method for regenerating catalysts is a supercritical fluid extraction (SCFE). The supercritical fluid (SCF) technology has significant advantages over traditional methods. In this case, the working media in the supercritical fluid state uniquely combines solubility, traditionally inherent in liquid organic solvents, as well as the low viscosity and high diffusion characteristic of gaseous media. The latest provides high mass transfer characteristics of the processes involving supercritical fluids [1] .

Despite the fact that as the SCF solvent and extractant used wide range of compounds in a supercritical fluid state, nevertheless the supercritical carbon dioxide (SC CO2) is the most popular and widely demanded. This is because CO2 has a convenient critical parameters (Tc = 304.14 K, Pc = 7.378 MPa), it is inert, nonflammable and nonexplosive, as well as eco-friendliness of the obtained product and the production as a whole.

Regeneration process of catalysts and adsorbents using supercritical fluids in comparison with the traditional approach is milder conditions of the process, high efficiency and lower energy costs. Consequently catalysts under the new approach pass through more regeneration cycles. The scientific literature shows the interest to this process both the researchers [2] -[4] , and the industrial implementations of this SCF method [5] [6] .

The aim of the present work is to explore the possibility of regeneration of spent catalyst from the enterprise of “Nizhnekamskneftekhim” (nickel on kieselguhr, activated aluminium oxide, palladium catalyst LD-265) in a supercritical carbon dioxide medium.

2. Experimental

The experimental unit, which allows to studying the supercritical fluid extraction process with the use of both pure and modified extractant for the catalyst regeneration schematically shown in Figure 1.

The unit contains a high pressure plunger pump “Waters P50A”, which provides a constant flow rate of solvent in supercritical state within 1 to 50 g/min at a pressure of 60 MPa. To ensure the normal operation of the pump, it is necessary to supply liquid carbon dioxide (СO2) into its inlet circuit. The gas is liquefied in the condenser and immediately in the pump with a refrigerant circulating in the cooling jacket of the pump and in the shell side of the condenser. The temperature to which the refrigerant (–15˚C) is cooled by the refrigerating unit is controlled by a chromel-copel thermocouple positioned in the condenser.

The co-solvent is fed by a LIQUPUMP 312/1 high pressure plunger pump from the vessel. The pump makes

Figure 1. Scheme of the experimental unit: (1) CO2 gas bottle, (2) condenser; (3) high pressure pump “Water P50A”; (4) refrigerating unit; (5) vessel for co-solvent; (6) high pressure pump “LIQUPUMP 312/1”; (7) three way valve; (8) extraction cell; (9) heat exchanger; (10) electronic measuring controlling device 2TRM1; (11а,11b) extract collectors; (12) thermostatic bath; (13) throttle valve.

it possible to regulate the co-solvent flow rate within 0.01 - 9.99 ml/min and thereby provides the required concentration of the modifier (2% - 10%) in the SC CO2. Design feature of the pumps is the presence of two pump heads. The plungers in a heads, operates in successively mode due to which the solvent and co-solvent flow fluctuation is dampened and a high degree of uniformity feeding of solvent and co-solvent is provided [7] . To prevent CO2 and co-solvent returning into the pumps, check valves are used.

The extraction cell is a high pressure vessel divided into two parts: one part for extraction of solids, another part—the extraction of liquids. The cell is installed in a heat exchanger which is a thick walled copper tube equipped with the heating cable and pipe where the preheating of the solvent for extraction takes place. Such design provides for the maximum decrease of temperature gradients inside the cell due to uniform heating of the cell itself and preheating of the solvent. The cell is equipped with two temperature transmitters, one of which is installed directly on the cell body and the other one is on the heat exchanger. Transmitters signals are sent to the electronic measuring controlling device 2TRM1 maintaining the temperature with ±0.25˚C accuracy. Exchanger surface is covered with thermal insulation.

Collectors of extract represent the high pressure vessels, inside of which the interchangeable sleeves for extracts are located. Collectors are placed in a thermostatic bath. Throttle valves that act as the restrictor allows to fractionate the mixture by pressure changes.

The amount of coke deposit was determined by integral thermal analysis—thermogravimetry, derivative thermogravimetry in combination with differential thermal analysis (TG–DTA) on a “F.PAULIK” derivatograph (MOM, Hungary) within the temperature range from 293 - 1123 K; analysis was performed in air using 600 mg samples placed into open plate type platinum holders. The absolute measurement error of the temperature is ±5 K, whereas the relative error in measuring the mass at a set sensitivity of 0.2 mg is ±0.5%.

The qualitative analysis of the deactivated catalysts contaminating compounds was performed using the IR spectroscopy study. A 10 g catalyst sample was flooded with 25 ml of chloroform. After 2 h, the extract obtained was applied onto a NaCl plate and evaporated to obtain a thin film of the substance to be analyzed. The plate was placed into a Vector 33 FTIR spectrophotometer equipped with an attenuated total reflection device, and spectra within 600 + 4000 cm−1 were recorded at room temperature for 1 min.

To quantitatively analyze the deactivating components, they were extracted in a Soxhlet extractor as described in [4] : the catalyst weight, 5 g; extractant (acetone) volume, 20 ml; and extraction time, 1 h. The concentrations of the extract components were determined by gas-liquid chromatography on a Kristall Lyuks 4000 instrument equipped with a flame ionization detector. The conditions of the analysis are as follows: carrier gas (hydrogen) flow rate, 1 ml/min; heating rate, 10˚C/min (within the temperature range from 40˚C to 200˚C); capillary column length, 50 m; capillary diameter, 0.32 mm; and stationary phase (polyethyleneglycol) thickness, 1.2 μm. The components were identified using a DSQ chromatomass spectrometer (Thermo Electron Corporation, USA) and the Xcalibur 1.4 software under the conditions identical to those used for the chromatographic analysis (column length, 50 m; capillary diameter, 0.32 mm).

3. Results and Discussion

3.1. Regeneration of a Nickel on Kieselguhr Catalyst

Catalysts nickel on kieselguhr is used for hydrogenation of unsaturated hydrocarbons more specifically for purifying isoprene from acetylene compounds. Table 1 lists the physicochemical characteristics of the nickel on kieselguhr catalyst that is used at the Nizhnekamskneftekhim plant.

The data of TG-DTA thermal analysis are displayed in Figure 2 and in Table 2. When a coked catalyst sample was heated, its weight gradually decreased, being accompanied by one endothermic and two exothermic effects. The endothermic effect (100˚C - 120˚C) is associated with the release of weakly bound water and low boiling hydrocarbons. The exothermic effects (peaks at 240˚C and 800˚C) are indicative of oxidative processes. The existence of two effects suggests that the composition of the deposits is nonuniform. The maximum mass loss of the deactivated catalyst was observed at temperatures within 130˚C - 600˚C and 700˚C - 850˚C, with the total content of densification products reaching 22.4% [3] .

An analysis of the IR spectra (Figure 3) of the worked out catalyst shows that the coke deposits are largely composed of reaction products, more specifically, oligomers of isoprene, cisand trans-isoamylenes, and oxidation products. The bands observed in the spectra were assigned to the following functional groups: RR’C = CH2 (890 cm–1, bending vibrations); CHR = CHR1 (965 cm–1, bending vibrations); CO (1709 cm–1, stretching

Table 1. Physicochemical characteristics of the catalyst.

Table 2. IR spectroscopy and TG-DTA analysis data for the deactivated catalyst.

Figure 2. TG-DTA curves for the deactivated nickel on kieselguhr catalyst.

Figure 3. IR spectrum of the deposit on the nickel on kieselguhr catalyst.

vibrations); and C-O (1166 cm–1, stretching vibrations).

The data on the composition of the densification products obtained by chromatography and chromate mass spectroscopy are presented in Table 3.

An analysis of the results led us to conclude that the largest amount of compounds deactivating the catalysts falls at isoprene oligomers. This suggests that the coke precursors are components of the reaction mixture and their hydration products. In the course of catalyst operation, active sites are blocked. The formation of deposits can also result in a decrease in the diffusion rate of the reaction mixture components in the catalyst granules. All these changes can occur during hydrogenation of acetylene compounds [3] .

In the first series of experiments, the regeneration of the catalyst was accomplished using pure SC CO2 at temperatures of 70˚C and 150˚C and pressures of 10, 20, and 30 MPa (Figure 4). The process was accompanied by a decrease in the catalyst mass (up to 3.4%), indicative of the principle possibility of removing deposits by using the proposed method. An evengreater effect can be achieved by increasing the mass of carbon dioxide used, adjusting the parameters of the process, and modifying the extractant (by introducing a polar additive).

The IR spectra of the regenerated catalyst samples (Figure 5) confirm the occurrence of changes, primarily a decrease in the amount of deactivating compounds. The most important spectral range for this catalyst is 1800 - 1200 cm–1, where bands belonging to the compounds most strongly decreasing the catalytic activity lie. As can be seen from Figure 5, compounds with absorption bands near 1500 cm–1 are removed most effectively.

This suggests that the absorption bands at 1600 and 1380 cm–1 can be assigned to polar compounds or inorganic compounds, which are only slightly dissolved in and, hence, poorly removed by pure SC CO2.

The dissolution ability of non-polar carbon dioxide with respect to polar substances can be substantially increased by adding polar co-solvents. Given that the interaction between co-solvent and solute molecules is of specific nature, the selectivity of the process of extraction often increases. Pure SC CO2 only slightly dissolves polar compounds, but its dissolution ability increases sharply upon addition of a co-solvent.

Table 3. Chromatomass spectrometry data.

Figure 4. Change in the mass of the catalyst in the course of its regeneration versus the mass of extractant used (pure CO2).

Figure 5. IR spectra of the deactivating compounds (coke) for various samples (fresh, worked out, regenerated at different regeneration parameters) of the test catalyst.

Modifiers, such as methanol, ethanol, etc., in amounts of 0.1 wt% to 20 wt% can be added either before introducing the extractant into the extractor or immediately in the extractor. The results of studying the regeneration of the catalyst in a 3 wt% methanol-SC CO2 are displayed in Figure 6. These data show that the efficiency of regeneration increases markedly with the pressure and temperature, but the most important factor being the methanol additive.

As can be seen from Figure 7, regeneration with modified SC CO2 makes it possible to remove polar compounds more efficiently as compared to pure SC CO2, as can be judged from a decrease in the intensity of the 1600 and 1400 cm–1 absorption bands. Thus, the modification of SC CO2 by adding a polar co-solvent allows the removal of polar compounds entering into the composition of coke. To achieve the best result, it is necessary to select an optimal polar co-solvent and its optimal concentration.

The catalysts were tested in a pulse microcatalytic setup. This setup was used for both pretreating the catalyst (reduction with hydrogen) and testing its activity. The activity of the catalyst was estimated from the extent of hydrogenation of ethylene to ethane as a 50% ethylene +50% hydrogen mixture was introduced in pulses into the carrier gas flow upstream of the microreactor.

Four catalysts were tested: initial (freshly prepared), worked out, and two regenerated with the SC carbon dioxide. One sample was regenerated with pure SC CO2, another one with a 3 wt% methanol-SC CO2 mixture.

Figure 6. Change in the mass of the catalyst in the course of its regeneration versus the mount of extractant used: (1 - 6) SC CO2 and (7, 8) SC CO2 + 3 wt% methanol; (1 - 3, 7, 8) 70˚C and (4 - 6) 150˚C; (1, 4) 10 MPa, (2, 5, 8) 20 MPa, (3, 6) 30 MPa, and (7) 15 MPa.

Figure 7. IR spectra of the deactivating compounds of catalyst samples regenerated in pure and modified SC CO2.

The results are summarized in Table 4. As can be seen, the catalytic properties of a sample deactivated under real conditions are completely recovered after treatment in a medium of both pure and methanol modified SC CO2.

Activated aluminum oxide is used as a catalyst for the dehydration of methyl phenyl carbinol. Physical and chemical properties of the catalyst are specified in the Table 5 [8] :

During the dehydration reaction of methyl phenyl carbinol the carbon deposition occurs on the catalyst surface which reduces the catalyst activity.

After 400 - 600 hours of operation the catalyst is to be regenerated for the purpose of its reactivation. The catalyst regeneration is accomplished with vapour-air mixture at temperature of 400˚C - 600˚C. However the catalyst is not completely regenerated using this method as it is impossible to remove all coke; part of it unavoidably will remain on the catalyst. There is also a risk of catalyst sintering due to styrene polymer occurrence reducing the catalyst service life.

Table 4. Activity of the catalyst samples subjected to various treatments in the hydrogenation of ethylene.

Table 5. Physical and chemical catalyst properties.

The data of TG-DTA thermal analysis are displayed in Figure 8 and in Table 6. The maximum mass loss of the deactivated catalyst is observed at temperatures within 440˚C - 560˚C, with the total content of deposit reaching 9.7%.

An analysis of the IR spectra (Figure 9) of the worked out catalyst shows that the coke deposits are largely composed of reaction products: oligomers of styrene, ether of methyl phenyl carbinol, styrene polymers and resins.

The results of the chromatographic analysis of the extract from the catalyst are in Table 7 [9] .

Determination of the possibility of coked catalyst regeneration assumes the availability of solubility data for pure compounds, deactivating compounds in supercritical carbon dioxide. On this basis the studies were made for the solubility of such compounds in supercritical carbon dioxide, more specifically styrene, methyl phenyl carbinol, acetophenone [9] [10] . The results show the satisfactory solubility of pure compounds in supercritical СО2.

Activated aluminum oxide catalyst was regenerated at temperature of 423 K and within the pressure range 10 - 30 MPа. The results of the analysis are as follows (Figure 10).

The determined decrease of catalyst mass (Figure 10) confirms that deactivating compounds were effectively removed.

The IR spectra of the regenerated catalyst samples (Figure 11) confirm the decrease in the amount of deactivating compounds in matrix.

As it was mentioned above, if modifiers 0.1 wt% - 20 wt% such as methanol, ethanol etc. are added the dissolution ability of SC СО2 is increased. On this basis the impact of various co-solvents on the catalyst mass during the regeneration was studied. Chloroform, methanol, acetone and dimethylsulfoxide (DMSO) were chosen as co-solvents. Co-solvents concentration varied from 1 to 9 wt%. Figure 12 represents the results of impact study of various co-solvents on the catalyst mass during the regeneration at temperature Т = 343 K and pressure Р = 20 MPа. With the increase of co-solvent concentration the change of the catalyst mass grows in the beginning then passes through the maximum point and after that decreases. The optimum value of co-solvent concentration falls within the range of 1.5% - 2.5%.

The analysis of catalyst mass change in the course of its regeneration using the modified SC carbon dioxide with the optimum co-solvent concentration was made at the temperature of Т = 423 K and pressure Р = 20 MPа (Figure 13). It is seen from the diagram that the regeneration efficiency with the DMSO adding has increased by 120% due to polar compounds removal. This data is supported by the IR spectra of the deactivating compounds for catalysts samples regenerated with pure and modified SC СО2 (Figure 14).

Furthermore within the scope of this study the measurement of the regenerated catalyst selectivity and conversion was made on the unit for the methyl phenyl carbinol vapor-phase dehydration process research.

Table 6. IR spectroscopy and TG-DTG analysis data for the deactivated catalyst.

Table 7. Composition of the compounds deactivating the catalyst.

Figure 8. TG-DTG curves for the deactivated activated aluminum oxide catalyst.

Figure 9. IR spectrum of the fresh and deactivated activated aluminum oxide catalyst.

Figure 10. Change in the mass of the catalyst in the course of its regeneration versus the mass of extractant used (pure CO2) at Т = 423 K.

Figure 11. The IR spectra of the deactivating compounds for various samples of the analyzed catalyst.

Figure 12. Change in the mass of the catalyst in the course of its regeneration at Т = 343 K and Р = 20 MPа versus the concentration of various co-solvents.

It is known that the catalyst activity characterizes the change of reaction rate when the catalyst is fed to the reaction system. Energy of activation, degree of reactant conversion (conversion), reaction product output, reaction time and temperature during which the certain conversion degree is achieved are sometimes used as an activity degree of the catalyst.

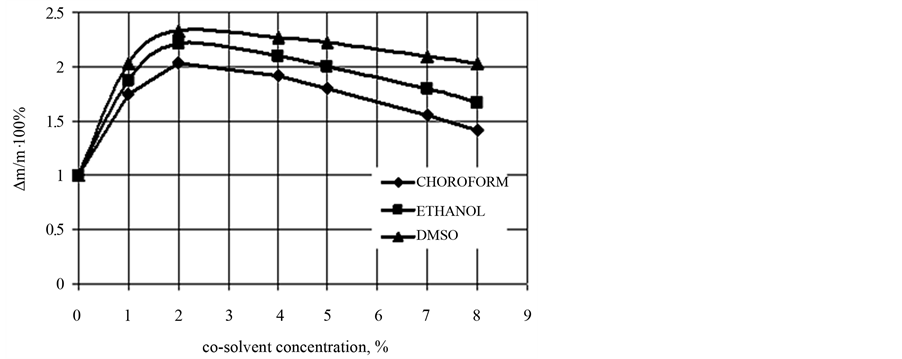

Figure 13. Change in the mass of the catalyst in the course of its regeneration versus the mass of extractant used (modified СО2): 1—SC СО2; 2— SC СО2 + 2% DMSO.

Figure 14. The IR spectra of the deactivating compounds for catalysts samples regenerated with pure and modified SC СО2.

In this case the conversion rate of methyl phenyl carbinol (methyl phenyl carbinol conversion) and selectivity to styrene were the criteria for activated aluminum oxide catalyst activity evaluation.

Methyl phenyl carbinol (MPC) fraction consists of high boiling products the total amount of which is determined as a heavy residue. The heavy residue includes the compounds (methyl phenyl carbinol ether, phenylethanol) which can be converted into styrene or methyl phenyl carbinol during the reaction. Therefore the conversion of heavy residue was also estimated during the catalyst testing.

The results of methyl phenyl carbinol conversion and activated aluminum oxide catalyst selectivity analysis are in Table 8.

Regenerated catalyst MPC conversion value, i.e. the catalyst regenerated activity, proves the SCFE method efficiency for removal of contaminants from the surface of activated alumina.

3.2. Regeneration of Palladium Catalyst LD-265

Samples of spent cocked catalyst LD-265, pretreated with air-steam mixture were taken from Nizhnekamskneftekhim hydrogenation reactors as these catalysts were to be replaced due to the expiration of the catalyst life cycle.

Physical and chemical properties of LD-265 are given in Table 9.

Complete thermal analysis data (thermogravimetric and differencial thermogravimetric curves) are given in Figure 15 and Table 10.

Table 8. MPC heavy residue conversion and styrene formation selectivity values.

Table 9. LD-265 physical and chemical properties.

Table 10. Catalyst samples weight loss detected by TG-DTG method.

Conflicts of Interest

The authors declare no conflicts of interest.


[1] Gumerov, F.M., Sabirzyanov, A.N. and Gumerova, G.I. (2000) Sub- and Supercritical Fluids in Polymer. Science, Kazan, 328 p.
[2] Bilalov, T.R., Gumerov, F.M., Gabitov, F.R., Fyodorov, G.I., Kharlampidi, K.E. and Sagdeev, A.A. (2009) Supercriti- cal Carbon Dioxide Assisted Synthesis and Regeneration of Palladium Catalyst. Supercritical Fluids: Theory and Practice, 4, 34-52.
[3] Gallyamov, R.F., Sagdeev, A.A., Gumerov, F.M. and Gabitov, F.R. (2010) Regeneration of “Nickel on Kieselguhr” Catalyst Using Supercritical Carbon Dioxide. Supercritical Fluids: Theory and Practice, 5, 40-51.
[4] Bogdan, V.I., Koklin, A.E. and Kazansky, V.B. (2006) Regeneration of Deactivated Palladium Catalyst of Selective Acetylene Hydrogenation by Supercritical CO2. Supercritical Fluids: Theory and Practice, 1, 5-12.
[5] Cansell, F. and Petitet, J.-P. (1995) Fluides supercritiques et materiaux. LIMHP CNRS, Paris, 327 p.
[6] Johnston, K.P. (1989) New Direction in Supercritical Fluid Science and Technology. Journal of the American Chemical Society, 406, 1-12.
[7] Apparatus for Studying the Solubility of Substances Using Supercritical Fluids. Useful Model Patent RF No.133012 published on October 10, 2013.
[8] State Standard (GOST) 8136-85 Activated Alumina.
[9] Galimova, A.T., Sagdeev, A.A. and Gumerov, F.M. (2013) Izvestiya vyshih uchebnuh zavedeny. Seriya Khimiya i khimicheskaya tekhnologiya, 56, 65-68.
[10] Galimova, A.T., Sagdeev, A.A. and Gumerov, F.M. (2013) The Solubility of the Acetophenon and Methylphenylcarbinol in Supercritical Carbon Dioxide. Vestnik Kazanskogo Tekhnologicheskogo Universiteta, 16, 296-298.
[11] Sagdeev, K.A., Gallyamov, R.F., Sagdeev, A.A. and Gumerov, F.M. (2013) Regeneration of Palladium Selective Hy- drogenation Catalyst by Supercritical Fluid Extraction Process. Vestnik Kazanskogo Tekhnologicheskogo Universiteta, 16, 20-23.

Copyright © 2024 by authors and Scientific Research Publishing Inc.

Creative Commons License

This work and the related PDF file are licensed under a Creative Commons Attribution 4.0 International License.
