1. Introduction
Astronomical data refer to data that are collected and used in astronomy and other related scientific endeavours. In radio astronomy, data that are collected from radio telescopes and satellites are stored and analysed by astronomers, astrophysicists and scientists. Digital astronomical data sets have traditionally been stored in the Flexible Image Transport System (FITS) file format, and are very large in size. More recently, the Hierarchical Data Format (HDF5) has been adopted in some quarters, and it is designed to store and organize large amounts of numerical data, as well as provide compression and other features.
With the size of astronomical data archives continuing to increase at an enormous rate [1], the providers and end users of these data sets will benefit from effective data compression techniques. Data compression reduces the time taken and the bandwidth used when transferring files, and it can also reduce the costs involved with data storage [2].
The SKA Project
The MeerKAT project, which involves a radio telescope array to be constructed in the Karoo in South Africa, is a pathfinder project for the larger Square Kilometre Array (SKA) [3]. Once the MeerKAT is complete, it will be the world’s most powerful radio telescope and provide a means for carrying out investigations, both in terms of astronomical studies and engineering tests, facilitating the way towards the efficient and successful completion of the SKA.
The SKA will allow scientists to explore new depths of the Universe, and it will produce images and data that could be in the order of Petabytes (PB) of size [4].
A software environment is used to analyze and extract useful information from these pre-processed data sets, which are used by scientists and astrophysicists. Improving the performance and functionality of this software environment is one of the main focus areas of research being conducted as part of the MeerKAT project.
Previous studies have discussed the big data challenges that would be faced by large radio arrays [5] and have explored the signal processing [1,6] and data compression techniques [7] that are used in analyzing astronomical data.
2. Objectives
The requirements and objectives for this study stem from meetings with members of the Astronomy Department at the University of Cape Town and with the chief software engineers working on the SKA project. The meetings helped to gain a better understanding of how this project would benefit the end users (astrophysicists and scientists), and how it would reduce storage costs and allow faster access to the data sets for the SKA project.
The SKA project has a custom software environment used to process and extract information from HDF5 files. The HDF5 file format has a well-defined and adaptable structure that is becoming a popular format for storing astronomical data.
The main focus of this project was to compress the total size of the files containing the astronomical data without any loss of data, and do this while streaming the data from the source to the end user. This main objective has been divided into the following research goals:
1) Investigate and experiment with different data compression techniques and algorithms;
2) Find the optimal data compression algorithm for the given data sets;
3) Attempt to implement the algorithm while streaming the data sets from a server;
4) Demonstrate the algorithms functionality by testing it in a similar environment to the SKA as a stand-alone program.
3. Background
3.1. Astronomical Data in Radio Astronomy
Astronomical data refers to data that is collected and used in astronomy and other related scientific endeavours. In radio astronomy, data that is collected from radio telescopes and satellites is stored and analysed by astronomers, astrophysicists and scientists [1]. Digital astronomical data sets have traditionally been stored in the FITS file format, and are very large in size [8]. More recently, the Hierarchical Data Format (HDF5) has been adopted in some quarters, and is designed to store and organize large amounts of numerical data.
The invention and commercialization of CCD data volumes has led to astronomical data sets growing exponentially in size [9]. (Figure 1) below provides evidence of this, showing how astronomical data has grown in size from the 1970s. These results were obtained from a study carried out on the LOFAR project, which is a pathfinder to the SKA.
Figure 1. Increasing bit size of astronomical data [10].
Most astronomers do not want to process and analyze data and have to delete it afterwards. Variable astronomical objects show the need for astronomical data to be available indefinitely, unlike Earth observation or meteorology. The biggest problem that arises from this situation is the overwhelming quantity of data which is now collected and stored [1].
Furthermore, the storage and preservation of astronomical data is vital. The rapid obsolescence of storage devices means that great efforts will be required to ensure that all useful data is stored and archived. This adds to the necessity of using a new standard to overcome the potential break down of existing storage formats [11].
3.2. The HDF5 File Format
The Hierarchical Data Format (HDF) technology is a library and a multi-object file format specifically designed to transfer large amounts of graphical, numerical or scientific data between computers [12]. HDF is a fairly new technology and was developed by the National Centre for Supercomputing Applicaionts (NCSA), while the HDF Group currently maintains it. It addresses problems of how to manage, preserve and allow maximum performance of data which have the potential for enormous growth in size and complexity. It is developed and maintained as an open source project, making it available to users free of charge.
HDF5 (the 5th iteration of HDF) is ideally suited for storing astronomical data as it is [13,14]:
• Open Source: The entire HDF5 suite is open source and distributed free of charge. It also has an active user base that provides assistance with queries.
• Scalable: It can store data of almost any size and type, and is suited towards complex computing environments.
• Portable: It runs on most commonly used operating systems, such as Windows, Mac OS and Linux.
• Efficient: It provides fast access to data, including parallel input and output. It can also store large amounts of data efficiently, has built-in compression and allows for people to use their own custom built compression methods.
3.3. Data Compression Algorithms
Data compression algorithms determine the actual process of re-arranging and manipulating the contents of files and data to reduce their size. Golomb coding and Rice Coding are two of the most commonly used algorithms, and serve as the basis for numerous compression techniques.
The following were found to be the best performing algorithms for the given HDF5 files.
3.3.1. SZIP
SZIP is an implementation of the extended-Rice lossless compression algorithm. The Consultative Committee on Space Data Systems (CCSDS) has adopted the extended-Rice algorithm for international standards for space applications [15]. SZIP is reported to provide fast and effective compression, specifically for the data generated by the NASA Earth Observatory System (EOS) [16].
SZIP and HDF5
SZIP is a stand-alone library that is configured as an optional filter in HDF5. Depending on which SZIP library is used, an HDF5 application can create, write, and read datasets compressed with SZIP compression, or can only read datasets compressed with SZIP.
3.3.2. GZIP
GZIP, is a combination of LZ77 and Huffman coding and is based on the DEFLATE algorithm. DEFLATE was intended as a replacement for LZW and other data compression algorithms which limited the usability of ZIP and other commonly used compression techniques.
3.3.3. LZF
The LZF filter is a stand-alone compression filter for HDF5, which can be used in place of the built-in DEFLATE or SZIP compressors to provide faster compression. The target performance point for LZF is very highspeed compression with an “acceptable” compression ratio [17].
3.3.4. PEC
The Prediction Error Coder (PEC) is a highly optimized entropy coder developed by researchers at the University of Barcelona in conjunction with the Gaia mission, which is a space astrometry mission of the European Space Agency (ESA) [18]. The PEC is focused on the compression of prediction errors, thus a pre-processing stage based on a data predictor plus a differentiator is needed. It is a very fast and robust compression algorithm that yields good ratios under nearly any situation [13].
FAPEC
The FAPEC (Fully Adaptive Prediction Error Coder) is a fully adaptive model of the PEC, meaning that it automatically calibrates the necessary settings and parameters based on the type of data that needs to be compressed.
It is a proprietary solution commercialized by DAPCOM Data Services S.L., a company with expertise on efficient and tailored data compression solutions, besides data processing and data mining. The company offers not only this efficient data compression product, applicable to a large variety of environments, but also the development of tailored pre-processing stages in order to maximize the performance of the FAPEC on the kind of data to be compressed.
3.3.5. LZ4
The LZ4 algorithm was developed by Yann Collet and belongs to the LZ77 family of compression aglorithms. Its most important design criterion is simplicity and speed [19].
4. Methodology
The data collected from the SKA will be stored in huge data centres, from which various end users will access the data. It was initially proposed that the compression should occur while the data is stored at the server end (as soon as it is collected), before the end user can access it (Figure 2).
This was modified at a later stage, with the compression to occur while the files were being read from the server, which is in line with the third objective of the project.
The intention was for the compression algorithm to be assimilated into the software stack that the SKA currently has in place. An additional functionality was that it should work as a stand-alone program.
From discussions with the SKA, the main priority with regards to the compression of the data was the compression ratio, with compression time and memory usage coming next. It was also mentioned that all of the data contents must be preserved, including any noise, making the compression lossless. Thus, two main stages of test-
Figure 2. Image showing the process of data capture, storage and consumption (Adapted from [20]).
ing were carried out:
1) Compressing the entire data set and attempting to obtain as the highest possible compression ratio;
2) Modifying and using different parameters within the algorithms to opitmize their performance and obtain the best results.
Various algorithms were investigated and considered, with the following 5 being chosen for use in the testing process based on the compression ratios and speeds they provided for the given data sets.
1) GZIP 2) SZIP 3) LZF 4) FAPEC 5) LZ4 The algorithms were evaluated as follows:
• Each algorithm was run on data sets of different sizes, across a wide range (30 MB to 9 GB).
• The compression ratio and time taken were recorded for each test.
• The results from these tests helped to determine which algorithm/technique was the best for the given astronomical data sets.
• Compression was applied while the data sets were streamed from the server to the user, simulating the SKA environment.
5. System Design and Testing

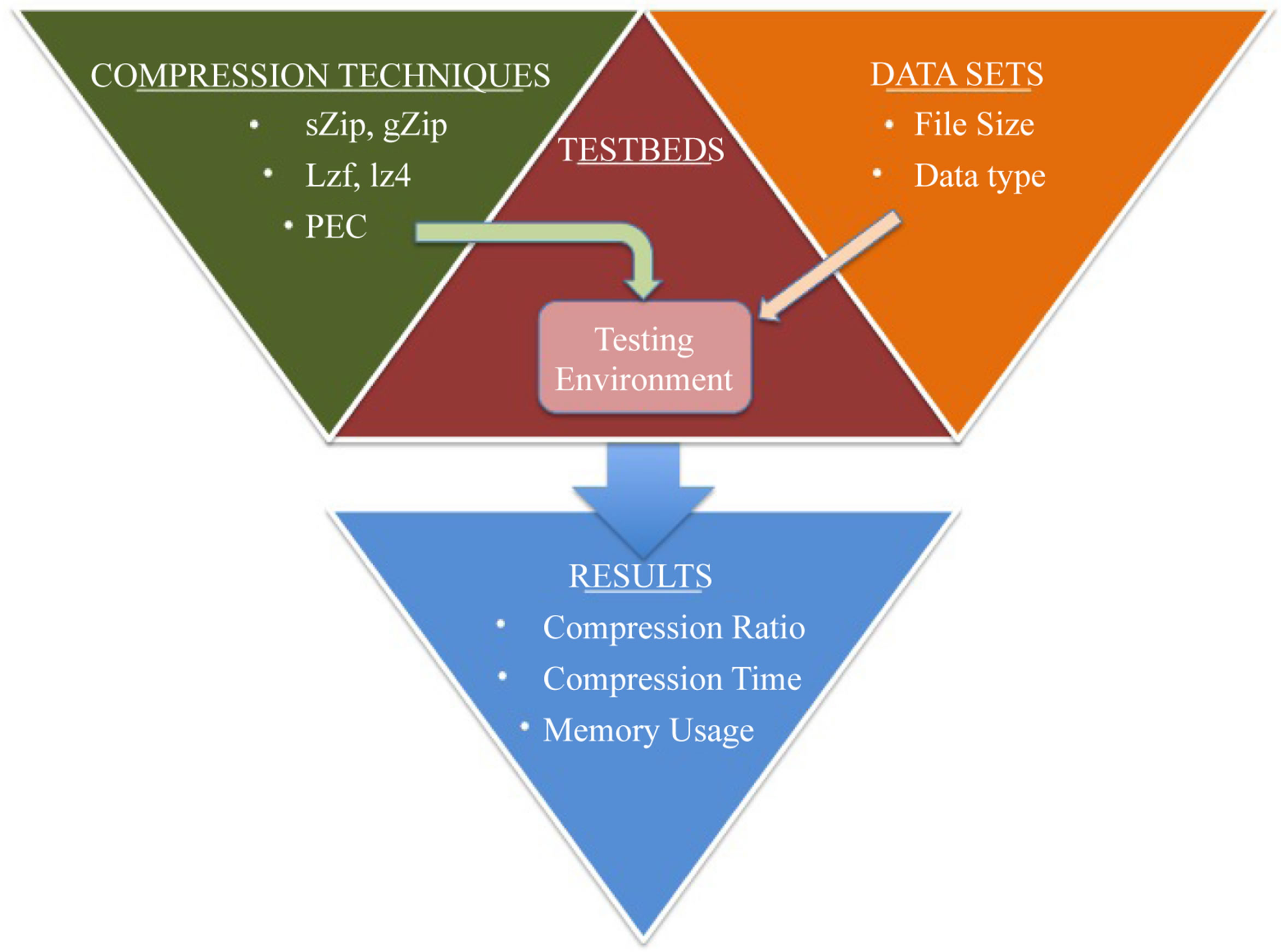

The testing system was comprised of the:
• Testbeds—Computers and software used for testing
• Datasets—Files collected from SKA to be tested on
• Compression techniques—Techniques used to compress datasets on the testbeds The different compression techniques were installed on the testbeds. When the datasets were loaded or read, the testing environment was activated and the algorithms were run on the files being tested. The achieved compression ratio, time taken and memory used (in certain scenarios) then formed the results for this project (Figure 3).
5.1. Testbeds
The testbeds consisted of the computers, and the software applications and tools on them that were used to run and test the performance of the different compression techniques on the datasets.
In order to obtain relevant results, it was necessary to attempt to simulate the computing environment used by the SKA. This included:
• Computers running Linux-based operating systems—The majority of the machines at the SKA run versions of the Ubuntu operating system. Given that Ubuntu is open source and that the researcher had previous experience using it, it was chosen as operating system to use.
• h5py Interface—The h5py interface is a python module designed for the HDF5 format. It allows users to easily access and manipulates HDF5 files using python commands.
• Streaming files from a server—This involved streaming the datasets from another computer (which acted as the server) and attempting to compress them as they were being read.
A main computer (primary testbed) was used to run the compression algorithms, while a second machine (server testbed) was used to host and send the data when re-creating the streaming environment. This machine had the same specifications as the main computer.
5.2. Datasets
A total of 11 datasets were obtained from the SKA. They ranged from 30 MB to 9.35 GB in size, of which 10 were collected during a 24 hour period on the 1st of December, 2012. File number 6 was collected on the 16th of December 2011. (Table 1) below shows each dataset and its size.
5.3. Compression Techniques
The selected lossless compression algorithms, SZIP, GZIP, LZF, FAPEC and LZ4, were installed and run on the primary testbed.
5.4. Streaming Compression
The aim of streaming compression is to compress a file while it is being read. This normally involves loading the file that is being read into memory and then applying the compression algorithm to the file. The effectiveness of this process relies heavily on the amount of RAM that is available and the size of the file that is being compressed.
Given the requirements for the project, two important factors had to be considered:
• The amount of time taken to compress the data while streaming;
• The time taken to send the file (network throughput).
These two metrics are crucial to the process of streaming compression as the trade-off between the time taken to compress the file and the time taken to send it would determine the effectiveness of streaming compression.
As a result, the following equations were established:
(1)
(2)
where:
• To is the total time taken to transfer the original file
• So is the time taken to stream the original file
• Tc is the total time taken to transfer the compressed file
• C is the time taken to the compress the file
• Sc is the time taken to stream the compressed file For streaming compression to be effective, Tsc would always have to be less than To.
5.4.1. SKA Compress
In order to explore the feasibility of streaming compression, a program was written which would perform the tasks shown in the following image. The program was named “SKA Compress”. The algorithm which was used to design the program is shown in (Figure 4).
The threshold of the file size would need to be set in the program depending on which compression algorithm was being used and the available network speed.
For example, if it took 30 seconds to transfer File A, and a total time of 40 seconds to compress and then transfer the compressed version of File A, the program would not compress the file and simply transfer. However, if it took 60 seconds to transfer a larger file (File B), and 50 seconds to compress and transfer the compressed version of File B, then the program would go ahead and compress the file and send it to the user.
The program was designed to take in the file that was to be opened as an input parameter. It would then compress the file, creating a compressed file named “tempfile”, which would then be sent to the user. Once the users have finished accessing the file, they could close the program, upon which the temporary file would be deleted.
Although the program would not strictly be compressing the file while it was being streamed to the user, the intention was for the program to operate so quickly that it would give the impression that stream-only compression was being achieved.
5.4.2. Stream-Only Compression
The final step was to implement stream-only compression i.e. applying the compression only while the file was being streamed from the primary testbed to the secondary testbed, neither before nor after.
The LZ4 algorithm implemented a function to carry out such a process, which was modified slightly to improve its performance. However, it was not tailored to suit the specific content and format of the files. Thus, it carried out a more generic approach towards the streamonly compression.
6. Results and Evaluation
Three phases of testing that were carried out, which were:
1) Initial performance testing 2) Final performance testing 3) Streaming compression testing
6.1. Initial Performance Testing
An inital set of testing was carried out smaller data sets to compare the performances of the different algorithms. These were files 1-6, which ranged from 29 MB to 466.5 MB in size.
This testing helped to give an indication of the algorithms’ compatibility with the specific arrangement and structure of these files, so that the best performing algorithms could be tested on the larger files (Figure 5).
The compression ratios, with the odd exception, gradually decreased as the file sizes increased, which is to be expected [18]. SZIP and GZIP provided the highest ratios, ranging between 1.4 - 1.6, while the FAPEC and LZ4 provided lower but consistent ratios. The LZF filter provided the lowest ratios. The relative compression ratios for SZIP, GZIP and LZF were in line with those that were found in the studies conducted by Yeh et al. [16] and Collette [17]. This was reflected further in the compression times.
The FAPEC and LZ4 were significantly faster than the other three algorithms. The LZ4 filter was also relatively quick while SZIP took longer, with GZIP being by far the slowest (Figure 6).
6.2. Final Performance Testing
The best three compression algorithms were selected from the initial testing in this stage. Based on the three key metrics, it was intended that the algorithms which
Figure 5. Compression ratios for initial performance testing.
provided the best ratio, quickest compression times and had the least memory usage would be selected. However, LZ4 provided the quickest compression speeds as well as the least memory usage, thus the FAPEC was chosen, as its ratio and timing results were very similar to those of LZ4. The final algorithm that was selected was SZIP, which provided the highest compression ratios.
Datsets 7-11 were used for LZ4 and SZIP, but only 7 and 8 could be used for the FAPEC due to time restrictions in sending the datasets to the researchers at the University of Barcelona.
Figure 7 below compares the compression ratios obtained from the final performance testing. As was with the inital stage, the FAPEC and LZ4 provided steady and similar ratios, ranging between 1.15 and 1.25. SZIP initially provided high ratios close to 1.5 for files 7 and 8, but its performance drastically declined on the three files greater than 4GB in size, reaching a similar level to that of LZ4.
