Biphenyl- and carvone-induced protein expression patterns in Rhodococcus sp. ACS ()
Keywords: Polychlorinated Biphenyl (PCB); Carvone; Rhodococcus; Protein Expression
1. INTRODUCTION
Polychlorinated biphenyls (PCBs) were once widely used as coolants and lubricants in transformers, capacitors, and dielectric insulators; however, the production and use of PCBs have since been outlawed due to severe toxicity and environmental contamination. It is estimated that approximately 1.5 million tons of PCBs were produced worldwide before 1988 [1]. Although the production of these compounds was halted due to their longterm persistence, PCBs continue to threaten human health in contaminated areas, as well as through metabolic products that persist in the environment [2,3].
PCBs are commonly degraded by co-metabolic processes involving dioxygenases, which are induced by growth on medium containing biphenyl or other inducing substrates as the sole carbon source [4,5]. Carvone, a plant-derived monoterpene and the principal component of spearmint oil, has several properties that promote PCB biodegradation [6]. Recent evidence suggests that Grampositive and -negative bacteria respond differently to various inducing substrates, and that Gram-positive bacteria are strongly induced to degrade PCBs following exposure to plant-derived monoterpenes [4,6-10]. A Gram-positive bacterium, Rhodococcus sp. ACS, was isolated by Andrew Singer from PCB-contaminated soil obtained from a site in Staten Island, New York, in 1997. The bacterium is similar in morphology to Arthrobacter sp. strain B1B [11] and has the ability to co-metabolize PCBs when grown in the presence of carvone, as well as other terpenes, including citral and cineole [12]. An analysis of the enantioselectivity of Rhodococcus sp. ACS further suggested that multiple degradation pathways are induced depending on the inducing substrate [12]. The key enzymes involved in PCB degradation are dioxygenases, which are polymeric enzymes. To date, most dioxygenase enzymes have been studied in Gramnegative bacteria [13-15]; relatively few dioxygenases have been characterized from Gram-positive bacteria [16-19]. Previously characterized dioxygenase enzymes contain a large subunit that ranges in size from 51,000 to 65,000 Da [13-15] and multiple small subunits that range in size from 22,000 to 27,300 Da [15]. The large and small subunits assemble into holoenzymes that are approximately 200,000 to 250,000 Da in size [13,15].
2. MATERIALS AND METHODS
As a first step toward identifying PCB-degrading enzymes, we compared the protein expression patterns of Rhodococcus sp. strain ACS grown on two different inducing substrates. The bacteria were cultured on either 1000 mg/L biphenyl or 250 mg/L carvone in a mineral salt medium containing 1% fructose. The concentration of carvone used was the maximum concentration that could be tolerated without negatively affecting growth. Soluble proteins were separated by SDS-PAGE and the protein expression patterns analyzed to identify inducible proteins as compared to control cells. The proteins were separated by 15% Laemmli SDS-PAGE, and then stained with Coomassie blue. Proteins that were differentially expressed were excised from the gel. The gel slices were dried in a vacuum and then hydrated in 40 mL of 20 mg/mL trypsin (Promega, Madison, WI) [20]. In-gel digestion was performed for 16 h at 37˚C. Peptides were eluted from the gel slices with 50% (v/v) acetonitrile/5% (v/v) trifluoroacetic acid, and the eluent was dried in a vacuum [20]. A mass spectrometric analysis was performed by LC-MS/MS (Waters, Milford, MA) at the Analytical Chemistry Instrumentation Facility of the University of California, Riverside (Riverside, CA) to determine similarities to other previously characterized proteins in the NCBI protein database. The nucleotide sequence data for Rhodococcus sp. ACS will appear in the GenBank/EMBL/DDBJ nucleotide sequence databases under accession number DQ286393.
3. RESULTS AND DISCUSSION
One-dimensional separation will allow the detection of differentially expressed proteins only if they are not at the same molecular weight as a highly expressed constitutive protein and as long as the bands that are excised are likely to contain multiple proteins, not just one. Coomassie staining will only detect those proteins that are highly expressed in at least one of the treatments. Proteins with lower expression levels may be functionally important but undetectable by these techniques. Thus, the lack of dioxygenases among the identified peptides may reflect these limitations.
SDS-PAGE revealed differences in the expression levels of at least eleven peptides; these peptides were in the approximate size range of previously described large and small subunits of known dioxygenases [13-15]. The eleven peptides selected for analysis included one that was down-regulated in cells grown on biphenyl and carvone, four peptides that were unique to biphenyl-grown cells, and one peptide that was unique to carvone-grown cells; the remaining four peptides were induced by both biphenyl and carvone (Figure 1).
The eleven proteins were analyzed by LC-MS/MS and compared against the NCBI database using the Mascot algorithm [21] for identification. Most of the peptide sequences exhibited significant homology with previously identified proteins in both Gram-positive and -negative bacteria; however, most of these proteins were either hypothetical or poorly characterized [22]. None of the eleven major inducible proteins corresponded to
Figure 1. SDS-PAGE analysis of extracellular proteins from Rhodococcus sp. strain ACS induced by biphenyl and carvone.
amino acid sequences of dioxygenases previously associated with PCB degradation. The two peptides (Figure 1, peptide bands 3 and 8) expressed by cells during growth on carvone were a strong match to a known extracellular protease. The protein down-regulated by growth on biphenyl and carvone had matches that corresponded to a variety of very different enzymes, including an alcohol dehydrogenase, a serine protease from Bacillus subtilis, and Omp C from Escherichia coli (band 8, Supplementary Table S1). Proteins induced by both biphenyl and carvone (Figure 1, peptide bands 1, 2, 5, and 6) included a small acid-soluble protein from B. subtilis (bands 1 and 2) and an uncharacterized hypothetical protein from B. subtilis (bands 5 and 6).
Four peptides were identified as being unique to the biphenyl-grown cells. The first peptide (band 11, 17 kDa) had a match of 120 (Mascot probability score) with spoVP and a match of 60 with peptidyl-prolyl isomerase from B. subtilis; there was also a weak match for a serine protease from B. subtilis (Supplementary Table S1). The second peptide (band 10, 32 kDa) had a probability score of 172 for a molecular chaperonin from B. subtilis, and lower scores for several other peptides, including a spore coat-associated protein from B. subtilis, outer membrane protein II from Shigella dysenteriae, and glucose dehydrogenase (EC 1.1.1.47) from B. subtilis (Sup-

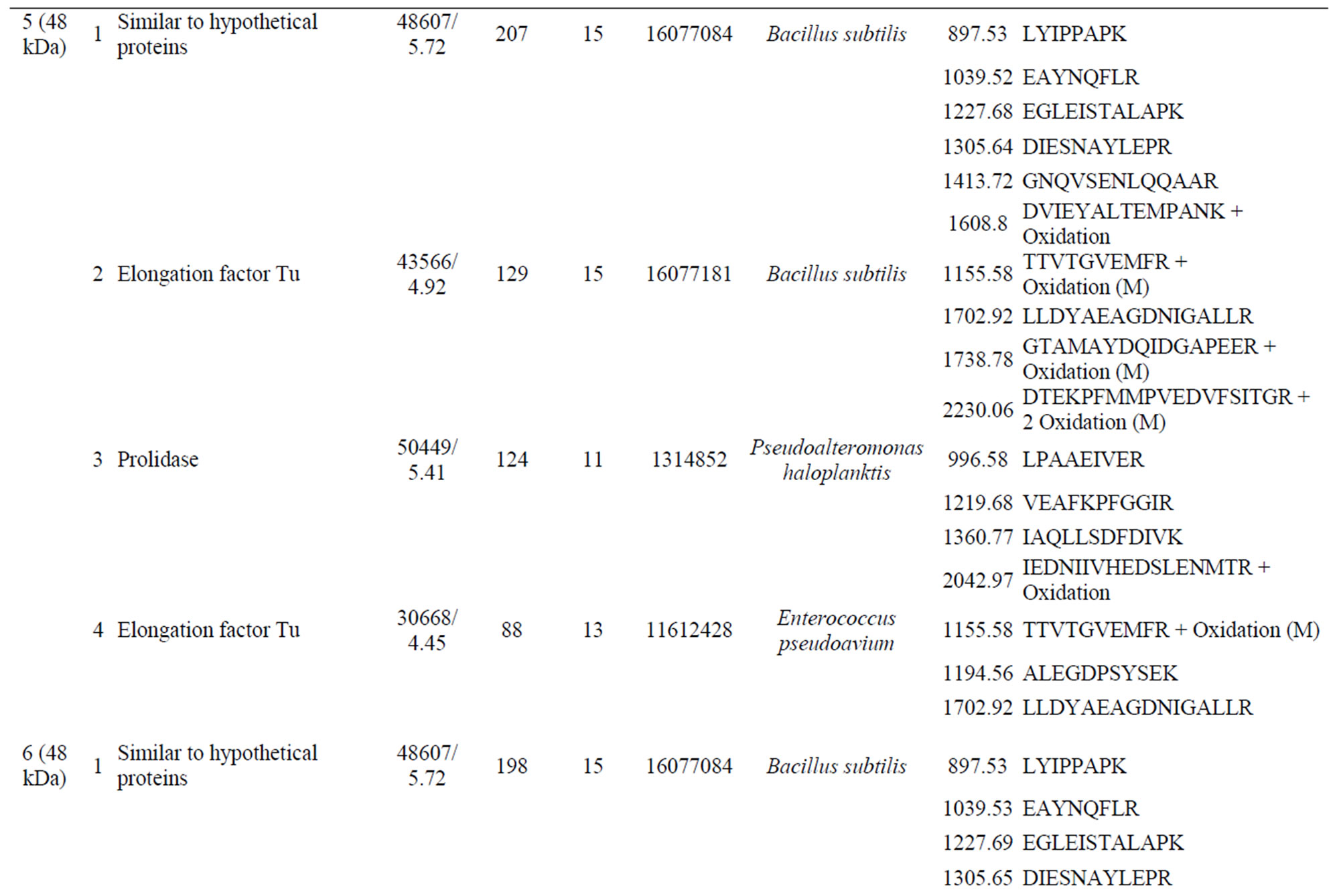

Table 1. List of identified peptide of bands.
plementary Table S1). The third peptide (band 9, 37 kDa) had a match of 82 with extracellular serine protease from B. subtilis, and outer-membrane protein A (outer membrane protein) from E. coli (Supplementary Table S1). The forth peptide (band 7, 41 kDa) had a probability score of 72 for spore coat protein from B. subtilis (Supplementary Table S1). The peptide unique to the carvone-grown cells (band 4) had strong match to an extracellular serine protease from B. subtilis (337) (Table 1).
Generally, a Mascot probability score of >30 indicates similarity to a known enzyme [9]. The results of this study, however, suggest that the proteins from Rhodococcus sp. ACS induced by growth on either carvone or biphenyl have functions unrelated to those from other microorganisms exhibiting high probability scores. The lack of dioxygenases in the protein matches may be due to methodological limitations; moreover, many other proteins may also be important for the response of the bacterium to biphenyl and carvone. Functional analyses, through methods such as transposon mutagenesis, will be necessary to determine the activity of these proteins and their role in PCB degradation. In addition to dioxygenases, PCB degradation pathways contain numerous enzymes involved in stepwise transformations of PCBs and their intermediates. Monoterpenes, including carvone, are toxic at high concentrations and cause cell lysis above 500 ppm [6]. There are minimal estimates of several hundred million genes present in environmental samples, the majority of which code for unknown proteins. It is therefore not surprising that protein sequence alignments are currently unable to provide insight into the degradative enzymes of poorly characterized microorganisms. The identification of major inducible proteins is nonetheless a first step in identifying important degradative enzymes, which can now be targeted for further study.
