Supercritical Fluid Adsorption of Domperidone on Silica Aerogel


Silica aerogel (SA) was loaded with domperidone to demonstrate the potentiality of adsorption processes based on the usage of supercritical carbon dioxide to treat poorly water-soluble drugs, forming new kinds of drug delivery systems. The effects of pressure, temperature and solution concentration on loaded SA were studied. Adsorption isotherms were measured at 35and 45 and fitted with Langmuir model. Release kinetics of the adsorbed drug were also evaluated by in vitro dissolution tests. Results showed that domperidone can be uniformly dispersed into the aerogel and that the release rate of domperidone from the composite, constituted by drug and silica aerogel, is much faster than that of the crystalline drug. The proposed adsorption method is suitable for the production of domperidone fast release tablets.

Share and Cite:

Caputo, G. (2013) Supercritical Fluid Adsorption of Domperidone on Silica Aerogel. Advances in Chemical Engineering and Science, 3, 189-194. doi: 10.4236/aces.2013.33024.

1. Introduction

The poor water solubility of some drugs limited their bioavailability. A fast dissolving system can be defined as a dosage form for oral administration, which when placed in mouth, rapidly dispersed or dissolved increasing compliance and efficacy of the therapy. Fast dissolving and fast dispersing drug delivery system may offer a solution to these problems [1]. Domperidone (DMP), a dopamine antagonist, is widely used in the treatment of nausea and vomiting in the dose range of 10 - 40 mg/day. It has a low water solubility at low pH that limits its bioavailability in the gastric fluid. When given as an immediate release tablet, its onset of action is after half an hour and the drug effect lasts for 4 - 7 h [2]. DMP has an even more reduced solubility in alkaline pH. Because oral dosage forms are exposed to an environment of increasing pH, the poorly soluble DMP molecules may get precipitated in the intestinal fluid resulting in low DMP bioavailability (<15%) which therefore, may not minimize the rate of vomiting [1,2]. A possible approach for ensuring maximum bioavailability in the intestinal fluid is the increase of DMP solubility after adsorption at molecular level on a proper host matrix.

To improve the dissolution rate of drugs, different techniques have been developed [3]. The most common approach is based on particle size reduction that can be achieved by processes based on micronization or nanosuspension. Each technique utilizes different equipment for the reduction of the particle size [4,5]. In the field of supercritical fluids, various promising techniques of micronization of drugs and excipients with SC-CO2 have been developed [6-8] and also the use of the less expensive SC-N2 is being explored [9]. An alternative way to improve the availability of a drug is its dispersion on a biocompatible substrate [10]. Silica based materials used as substrate are widely employed as additives, free flow agents and drug carriers also in commercial products. A special class of silica materials is silica aerogels (SA). They are low density nano-porous solids with a fine openpore structure that exhibit unique properties, such as high porosity (90% - 99%), high surface area (400 - 1000 m2/g), extremely low density (0.003 - 0.15 g/cm3). These properties allow them to be used as a host matrix for drug delivery. Silica aerogels were recently shown to be a potential candidate for oral drug delivery systems [11-13]. A promising method to adsorb a drug into porous substrates is supercritical (SC) deposition or adsorption [11, 12,14-16]. Essentially, the process involves the dissolution of the active molecules in a supercritical fluid and the impregnation of the substrate by its exposure to this solution. Supercritical carbon dioxide (SC-CO2) is commonly used due to its relatively good solvent power for various drugs, mild critical temperature (31˚C), low critical pressure (7.4 MPa) and inertness. After the removal of the SCF by expansion, a drug-loaded matrix free of solvent residues is obtained. This method takes advantage of the unique properties of SCFs. Indeed, a SCF possesses a unique combination of gas-like and liquidlike properties, which can be adjusted by small changes in temperature or pressure.

Low viscosity and high diffusivity of SC-CO2 allows a rapid equilibration and micropore penetration of the fluid phase within the matrix. SCFs also have zero surface tension that not only facilitates the rapid permeation and diffusion into porous substrates, but also avoids the pore collapse of SA that occurs using organic liquids, due to capillary stresses caused by the liquid-vapor menisci within pores.

In this work, the adsorption of domperidone on SA was studied at various conditions of temperature and concentration. The experimental work basically consisted in 1) study of the solubility of DMP in SC-CO2 to know the saturation conditions as a function of temperature and pressure; 2) study of adsorption isotherms to know the relationship between concentration of DMP in the fluid phase and in the solid phase at equilibrium; 3) in vitro drug release tests to study the properties of the composite material and its potentiality for industrial applications.

2. Experimental

2.1. Materials

Hydrophilic silica aerogel (SA) in form of monolithic blocks was purchased from Merketech Int. (USA). The nominal density is 0.1 g/cm3 and the surface area is 800 m2/g and the mean pore size is about 20 nm. Deposition experiments were performed using cubic blocks of 1 cm obtained by cutting SA monoliths with a knife. CO2 research grade 4.8 was purchased from SON (Italy). All products were used as received. Domperidone (purity 98%) was kindly donated by Italchimicis. p.a. (Pomezia, Italy).

2.2. Solubility Measurements

The solubility of nimesulide in SC-CO2 was determined experimentally at 45˚C in the pressure range 10.0 - 18.0 MPa using a static synthetic method [17]. A variable volume view cell was used for measurements (Figure 1). The cell is equipped with anair-driven piston (A) that allows to smoothly change the internal volume from 32 to 61 cm3. One front and one back sapphire windows allow to look inside the cell. An optical microscope (Nikon SMZ800, 6× mag.) allows to inspectsolubilization of small crystals. The cell is heated by electric cartridges (Watlow, USA) whose thermal control is guaranteed by a PID controller (Watlow, USA). The temperature inside the cylinder is measured by a J-type thermocouple with an accuracy of ±0.1˚C. Pressure is measured by a digital gauge manometer (Parker, USA). A specific amount of domperidone was weighed with an analytical balance (Shimadzu, Japan) having repeatability < 0.1 mg and put at the bottom of the cell. The cell was closed and heated to the set-up temperature. Then, CO2 preheated to the same temperature was pumped in the cell up to the final pressure by means of a manual piston pump (P1). The system was stored for 15 min under mechanical stirring to ensure that DMP were dissolved.

Starting from this condition, the cell volume was gently changed until cloud point was observed.

Cloud point indicates the formation of solid phase from the solution. The pressure at which cloud point was observed is assumed as solubility point.

2.3. Adsorption Experiments

Adsorption isotherms were obtained using a static method described elsewhere [15]. The main part of the plant is an autoclave, consisting of a stainless steel cylinder having an internal volume of 100 mL. The autoclave was loaded with accurately weighed amounts of SA (about 0.25 g) cubic monoliths wrapped in filter paper in order to pre-

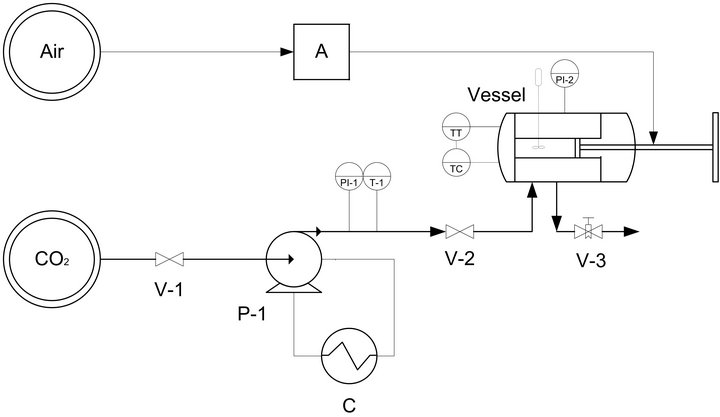

Figure 1. Experimental set-up for the measurement of the solubility of drugs in SC-CO2.

vent their contact with the solid domperidone placed on the bottom of the autoclave. A weighed amount of the drug was placed in a small container opened on the top to allow contact with CO2 and mounted axially on the impeller shaft. The autoclave was closed, heated to the fixed temperature and, then, CO2 was slowly added to the system at constant flow rate of 10 mL/min. The amount of CO2 in the autoclave was calculated from the density data. When the working pressure was reached, the system was stored for a fixed time. Then, CO2 was vented out at a constant pressure drop of about 0.1 MPa/min. After the vessel was cooled, the impregnated SA was removed and weighed. The amount of adsorbed compound was determined by the weight change of the SA using an analytical balance. The thermodynamics of adsorption was quantified by an adsorption isotherm, which relates to the concentration of the adsorbate in the SC-CO2 phase to the concentration of the adsorbate in the solid phase. Adsorption isotherms were obtained at 35˚C/ 23.0MPa and 45˚C/23.0MPa. Adsorption experiments were repeated three times. The difference was less than 5% between experiments probably due to loss of material by entrainment during depressurization through the filter paper, and to the deposition of non-adsorbed material on the surface of SA.

2.4. Drug Dissolution Rate Analysis

Domperidone dissolution profiles were obtained with a USP apparatus 2, consisting of Varian 7025, paddle dissolution tester (Varian, Agilent Technologies Italia s.p.a, Italy). All studies were run according to the USP 25 paddle method: 150 rpm, 900 mL of dissolution medium, T = 37.2˚C ± 0.1˚C, sink conditions. The adsorbed SA monoliths were coarsely crushed in a mortar and suspended in water. Then, the aqueous solution was continuously pumped to a flow cell in a spectrophotometer and absorbance was recorded at 284 nm.

Dissolution curves were studied with samples of SA equivalent to 10 mg of DMP in 900 mL of buffer solution. Following the method of Nagarsenker et al. [2], two buffer solutions were used. A buffer solution at pH = 1.2 and a buffer solution at pH = 6.8. The first solution represents the gastric fluid, the second solution represents the intestinal fluid.

3. Results and Discussion

The experimental work basically consisted in 1) study of the solubility of DMP in SC-CO2 to know the saturation conditions as a function of temperature and pressure; 2) study of adsorption isotherms to know the relationship between concentration of DMP in the fluid phase and in the solid phase at equilibrium; 3) in vitro drug release study.

3.1. Solubility Measurements

The knowledge of DMP solubility is necessary to prepare saturated liquid phase solution for adsorption experiments. In literature, no solubility data of DMP in SC-CO2 were found.

The solubility of DMP in SC-CO2 was measured at 45˚C under different pressures. Experimental results are shown in Figure 2. In the pressure range 11.0 - 23.0 MPa, the DMP solubility varied from 15 × 10−6 to 110.3 × 10−6 mole fraction (y). As expected, the solubility increased with pressure as a result of the increase in the density of CO2. A solubility of DMP in SC-CO2 of 121 × 10−6 mole fraction was also measured at 35˚C/23.0MPa.

3.2. Isotherms of Adsorption

The adsorption isotherms of DMP on SA were obtained at 35˚C and 45˚C and 23.0 MPa. These conditions have been selected because they correspond to the maximum solubility of DMP in SC-CO2 measured in this study. To ensure that equilibrium was reached, the adsorption process was carried out for a period of 24 h. The corresponding isotherm curves are presented in Figure 3 where the DMP loading is reported as qe (mmol of DMP /grams of silica aerogel) and the solution concentration is expressed as C0 (mmol of DMP/liter of CO2).

Obviously, the concentration of DMP on SA increases with increasing concentration of DMP in CO2; the maximum loading obtained is 0.035 mmolDMP/gSA that corresponds to 1.5 wt% of DMP with respect to SA. Thus, in 1 g of SA can be adsorbed 15 mg of DMP. Because the conventional therapeutic dose of DMP is 10 mg, it should be possible to prepare a 0.66 g SA tablet containing the therapeutic dose of DMP.

Brunauer et al. [18] classified the isotherms that are

Figure 2. Solubility of DMP in SC-CO2 as a function of pressure. Solubility is expressed as molar fraction (y).

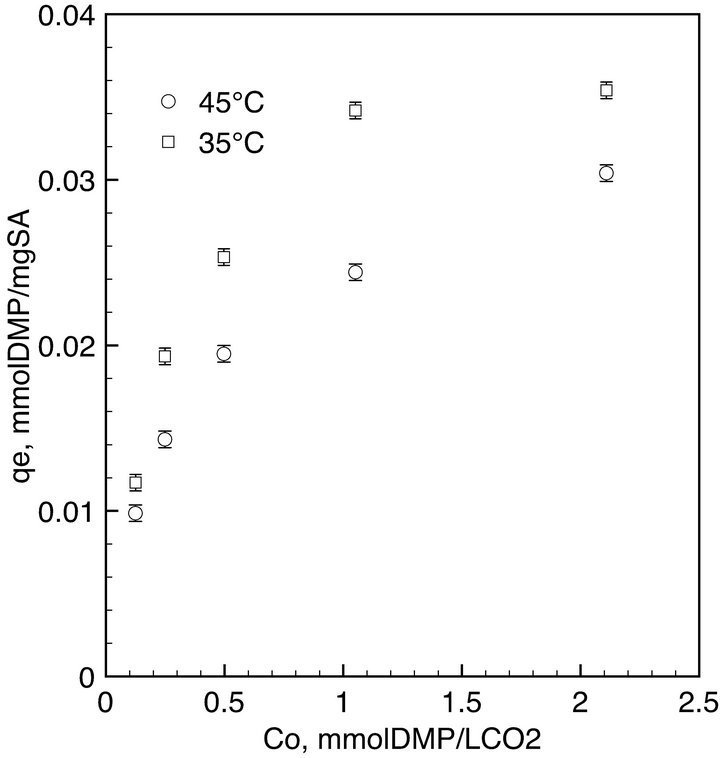

Figure 3. Adsorption isotherm for domperidone on silica aerogel at 35˚C/23.0MPa and 45˚C/23.0MPa.

convex upward throughout (type I) as “favorable” to uptake of solute, whereas the ones that are concave upward throughout (type III) as “unfavorable” to uptake of solute. According to this classification, the isotherms obtained at 35˚C and 45˚C are favorable.

The Langmuir adsorption isotherm is most widely used for the sorption of organic compound from liquid and gaseous solutions. The model is based on several basic assumptions: a) sorption takes place on specifichomogeneous sites within the adsorbent; b) a molecule occupies a site; c) the adsorbent has a finite capacity for the adsorbate (at equilibrium, a saturation point is reached and further adsorption can proceed); d) all sites are identical and energetically equivalent (adsorbents are structurally homogeneous). The linear form of the Langmuir equation is represented as follows:

where qmax is the maximum capacity of adsorbate to form a complete monolayer on the surface (mmolDMP/ gSA), KL is the Langmuir constant related to the heat of adsorption. By plotting Ce/qe versus Ce, it is possible to obtain the value of qmax and KL from the slope and the intercept. The Langmuir isotherm model for DMP on SA are found to be linear over the whole concentration range studied with correlation coefficient R2 = 0.989. These high correlation coefficient values strongly support the fact that the adsorption closely follows the Langmuir model of adsorption in both examined cases. The parameters found were qmax = 0.032 mmolDMP/gSA and KL = 69.44 for the isotherm at 45˚C; qmax = 0.036 mmolDMP/gSA and KL = 194.79 for the isotherm at 35˚C.

Large KL constant indicates a good affinity of adsorbents for the adsorbate resulting in a stable adsorption product. Thus, there is much stronger binding of DMP to SA at 35˚C.

3.3. Dissolution Test

We studied the dissolution rate of the drug in vitro. Water solution at pH = 1.2 and pH 6.8 were chosen as dissolution media following the recommendation US Pharmacopeia. The dissolution profiles of the drug from the powdered loaded aerogel were compared with that of commercial DMP tablets. Release kinetics are shown in Figure 4. In the buffer at pH = 1.2 the dissolution of DMP from loaded aerogel is faster than dissolution of DMP-tablets. 65% of DMP dissolves from the aerogel within 15 minutes, whereas dissolving 65% of the crystalline drug takes 30 min. 90% of DMP dissolves after 2 h

Figure 4. Release kinetics of DMP-tablets (commercial DMP) and DMP adsorbed on silica aerogel in buffer solution at pH = 1.2 (left) and pH = 6.8 (right). Dissolution curves were obtained from samples equivalent to 10 mg of DMP in 900 mL of buffer solution.

in both cases.

In the buffer at pH = 6.8 representing the intestinal fluid, a lower solubility of DMP was expected. Indeed, 7% of DMP dissolves from tabletwithin one hour and than the concentration increases up to 11.5% within 8 hours. DMP-SA has a much faster dissolution rate. 22% of DMP dissolves within one hour and 62% dissolves within 8 hours. These results are in good agreement with data reported by Nagarsenker et al. [2].

Thus, the use of hydrophilic aerogels as a carrier promotes fast release of the drug both at pH 1.2 and 6.8 with a marked gain in the latter case. This effect can be explained by both an increase of specific surface area of the drug adsorbed on the aerogel and its non-crystalline structure in this state. In the case of the crystalline drug, even with a very small particle size, the crystal should be destroyed before the drug can be actually dissolved. If the drug is adsorbed on the aerogel, this step is eliminated and the dissolution process is accelerated. Another important effect is the partial collapse of aerogel structure in water. Hydrophilic aerogels are rapidly wetted with water, so the drug molecules are surrounded with water allowing a fast dissolution of drugs [12].

4. Conclusion

In this study, it was demonstrated that the supercritical fluid adsorption is an effective way to incorporate domperidone into a microporous silica aerogel. This technique allows to obtain ultra pure drug delivery systems avoiding the use of organic solvents. Particularly, supercritical adsorption is suitable to generate domperidone/ SA composites for the fast release of domperidone. It is possible to prepare a 0.66 g SA tablet containing 10 mg therapeutic dose of domperidone with an enhanced drug release rate both in the gastric and intestinal fluid. The enhanced dissolution rate can be explained by both the increase in the specific surface area of the adsorbed drug and its non-crystalline structure in the formulation. The adsorption isotherms can be fitted to a Langmuir isotherm model confirming the monolayer adsorption of DMP on SA, with the maximum monolayer adsorption capacities of 0.036 mmolDMP/gSA at 35˚C and 0.032 mmolDMP/gSA at 45˚C. These results encourage the development of industrial application of the proposed process.

5. Acknowledgements

Italchimicis.p.a. (Pomezia, Italy) is kindly acknowledged for financial support.

Conflicts of Interest

The authors declare no conflicts of interest.
