1. Introduction
Power supply is the one basic requirement to operate the machine or devices. As technology advances, the need of power is increasing drastically. Centralized power systems for generation thus produces fluctuations at load side as demand is not being fulfilled properly and this basic need is increasing rapidly. Thus utilities feel a great pressure on them for an increasing generation [1] and transmission lines. Consumers are not satisfied fully with the present scenario of available power especially in developing countries. So, Distributed Generation is one of the basic means of generating power for a certain locality, which is environmentally friendly as it minimizes the emissions of hazardous gases. MG consists of power generators capable of power generation rang from several KW to a few MW using Renewable Energy Resources such as solar, wind, biomass etc. and can run on fossil fuels such as coal, gas, oil etc. Operation of Micro Grids can be performed in two basic modes. One form of operation is in autonomous mode and other form of operation is in nonautonomous mode.
In power system planning and operation, Demand Responses are one of the most important factors. Currently modern power system smart grids in new emerging technology using Renewable Energy Resources (RER) plays a vital role in fulfilling current energy demand. Currently different demand response distribution schemes are widely implemented and distribution voltage reduction is one of them. In this paper, demand response impact on smart grids is discussed and renewable energy technologies (bio-gas, solar cell, wind energy) is used to propose algorithm fulfill increasing demand of power. Basically micro-grid is a form of smart grids which provides power (normally in KW) to load controlled by the intelligent energy management system.
2. Objectives of Demand Response
Decrees in the generation need, under this objective sum of demand and losses are reduced in distribution and transmission in power system. Different factors effect on this objective like cost of generation, availability of energy resources, and overall system reliability.
Increase the overall system reliability, under this objective maintain a balance between demand and supply of power to load in different time intervals.
Elimination of overloads from power systems, under this objective of overflow of current is reduced by Advance Energy Management System (EMS).
3. Proposed Demand Response Micro-Grid Network
In this paper proposed demand and response algorithm can be implemented on non-autonomous micro-grid mode of operation. In non-autonomous mode which MG acts as a standby system with electrical utilities. These DG sets are installed with electric utility to provide strength [2,3] to the power plant by supporting its voltage level or by supporting power for reducing the peak demand during certain times. Stand-by power generating units with present electrical infrastructure can be used for micro-grids. MG can prove to be one of the best choices for installing it in a certain locality, provided that it costs low and also provides a certain acceptable level of reliability [4] for a fighting with present electrical utilities in the modern age. The trends of MG are enormously rising as they share some basic load from the utility. This basic trend is growing especially growing in developing countries where RER is sufficient to generate the demands of people alone as well as by sharing with utility. The basic and the foremost specialty of MG is that they can operate in Islanding mode [5] thus provides safety against troubling effects of faults.
3.1. Demand Response Power Flow Network
In proposed power and control Demand and Response power network show in Figure 1. Micro-Grid Central Controller (MGCC) is the link between Electrical utility and load through Local controller. Renewable Energy Resource (RER) and other small power production resources are connected to local Controller and supply the power to own connected load. Power is supplied to load from own power generation.
3.2. TCP/IP Control Network
In decentralized approach, DG source controller [6] is mainly responsible for power management. The DG source controller is called local controller and micro-grid central controller is connected to the local controller for power management from main utility. In Figure 2, intel-
Figure 1. Distributed renewable energy resource micro-grid setup.

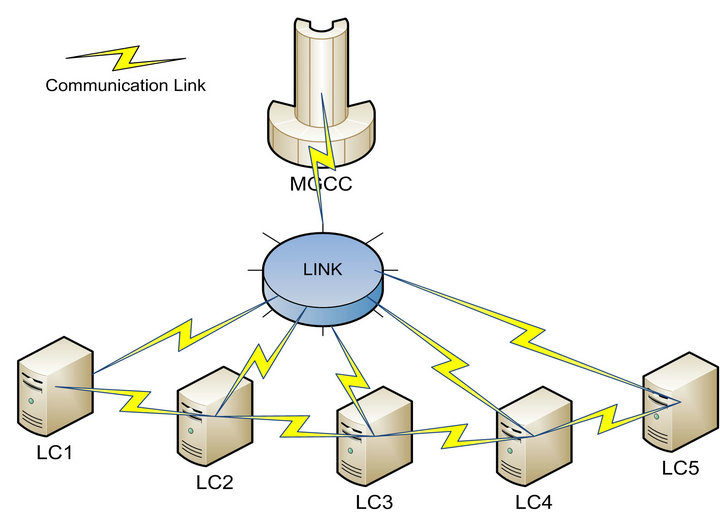

ligent TCP/IP controller network figure electrical utility is connected through Micro-Grid Central Controller (MGCC) and Local Controller (LC).
In peak hour of demand intelligent local controller which is connected by TCP/IP networking cable sends request to micro-grid central controller through TCP/IP communication protocol.
In Figure 2 TCP/IP controller network intelligent MGCC checks the available power from utility that can supply to load through local controller and local controller control the power supply to the load. If power required to load is available power that can be supplied to load then MGCC send a signal to.
Local controller starts sending power to load through LC. If more power required than local controller send requests to other local controller to send the power. In case of power requirement is not fulfill then intelligent local controller.
Perform intelligent load shedding. The ultimate objective providing the smooth and reliable power supplied to load in different circumstances. Different types of “intelligent load shedding” [7-10] scheme have been discussed in literature for power management. In [11] describe the decentralized software control approach with intelligent agents the on FIPA software where the local controllers compute one another to optimize MGCC operation of the MG.
4. Demand Response Algorithm
The primary components of demand response algorithm show in the flow chart shown in Figure 3.
1) Micro-Grid Central Controllers (MGCC) checks the connected Local controller by sending connectivity command using TCP/IP protocol.
2) Micro-Grid Central Controller (MGCC) maintains the database of Local Controller (LC) connected load peak hour and normal hour power demand.
3) Local Controller (LC) compares the current demand and supply of power to load attached to the local controller (LC). If demand is greater than response power supply then local controller send a request to Micro-Grid Central Controller (MGCC) to send the required power and if demand is less than the supply then send an update request of a database of available power for MGCC.
4) If the Micro-Grid Central Controller (MGCC) can not fulfill the current demand of local controller connected load then MGCC performs intelligent load shedding.
5) MGCC performs intelligent load shedding by shed
Figure 3. Demand response micro-grid algorithm.
down the low priority local controller loads then 2nd least priority load and so on until the demand and supply is not balanced.
System States
Here we use the notation PMGCC is the power of microgrid central controller power from connected from main utility and PLC is power generated by the local controller from own connected renewable energy resources. PDemand represents the power demand of connected load.
Case I:
In this case local controller sends a request to main utility by using Micro grid central controller through the TCP/IP protocol for power supply.
Case II:
If the power generated by the local controller than the power demand then Local controller sends a request to Micro grid central controller for required power. Then system equations as fallows
Case III:
In this case the micro-gird central controller will perform the intelligent load shedding with the help of Local controller.
5. Benefits of Demand Response in Micro-Grids
The most promising feature of MG is the establishment of business industry that can worth millions and billions of dollars for providing backup power and support to the masses. With the well equipped setup it is capable of exporting the power to utilize and to some required residential areas as well as to some private sector. Thus, it provokes thirsty businessmen to invest money in this sector and can earn healthy profit. For example in a certain community of 10 - 15 houses there exists an MG setup and each owner of the house has to buy a membership of MG for backup power. So, in case of failure of delivery from utility MG provides its members quality power for certain time. Each member has to pay to MG owner who gains profit through exporting power to residential sector and in utility in times of need. In economics module of formulating the participation of Customer in Demand Response Program shows customer demand varies according to tariff rates and customer is benefited [12].
The concept of demand response in micro-grids minimizes a lot of risks to electrical utilities. These risks include fault occurring in central plant, in transmission lines, in MG. Thus, it adds a security feature to utility while operating in non-autonomous mode as it is capable of operating in an island mode. During heavy loading conditions MG can be subjected to intentional or emergency islanding. Other types of risks include load forecasting, prices of the fuel regularity issues etc. MG smaller units requires less project capital and lead time compared to large and heavy utility units. Demand Response is a useful tool at a time of high wholesale market price less power consumption [13].
Rapid increment of power demand has made the need of Demand response more attractive for system operators and customer [14].
MG provides supporting and control services to utilize such as:
1) By the injection/absorption of reactive power for controlling the voltage of the grid.
2) Can act as spinning reserve.
3) Can provide network stability.
4) Avoid system blackouts.
5) By the control of regulation etc. [15].
6. Conclusion
