3,6-Bis-β-Dicarbonylsubstituted Carbazoles Bearing N-Spacers and Their Eu(III) Complexes as Immunofluorescent Labelling Agents


New reagents for immunofluorescence analysis of carbazole series containing fluorinated β-dicarbonyl fragments and carboxylic substituent groups separated by spacers of different lengths from the light-gathering carbazole scaffold have been developed. The markers in complex with Eu3+ ions possess stability in the aqueous phase, intense and prolonged luminescence (τ 550 - 570 μs) with characteristic emission maxima in the region of 615 nm and excitation wavelengths in the region of 380 - 390 nm, which distinguishes them from most of the analogs used. In the study of marker conjugation with streptavidin, a reagent containing 4 - 5 europium labeling complexes based on spacer-containing carbazole tetraketone was obtained. The marker-doped silicate nanoparticles exhibit intense and long-lived luminescence in the characteristic region.

Share and Cite:

Pugachev, D. , Zatonsky, G. , Kostryukova, T. , Shubina, A. and Vasiliev, N. (2024) 3,6-Bis-β-Dicarbonylsubstituted Carbazoles Bearing N-Spacers and Their Eu(III) Complexes as Immunofluorescent Labelling Agents. International Journal of Organic Chemistry, 14, 20-31. doi: 10.4236/ijoc.2024.141002.

1. Introduction

Lanthanide fluorescence immunoassay (LFIA) with delayed fluorescence involving immunofluorescence of lanthanide reagents is one of the primary immunobiological assays for the determination of microbial and viral pathogens as well as genetic mutations [1] [2] .

The most intensely luminescent complexes in aqueous media are complexes of aromatic fluorinated β-diketones with Eu(III) ions. A large number of scientific researches on the luminescence of such complexes and their application in various fields of molecular detection [3] [4] [5] , as well as in the field of OLED technologies [6] [7] have been published.

One of the ways to further increase the sensitivity and rapidity of the method is the search for aromatic β-diketones with enhanced spectral properties and improved stability. Previously studied carbazole compounds containing two β-dicarbonyl polyfluorinated fragments have satisfactory luminescence and increased stability of complexes by two to three orders of magnitude in comparison with conventional β-diketones [8] [9] . Earlier, we obtained a biomolecular labelling agent—a carbazole-based tetraketodiester with two methoxycarbonyl groups separated by difluoromethylene spacers from the chelating center [10] . The drawback of this marker is its bifunctionality that leads to “crosslinking” of protein molecules with the subsequent precipitation.

In order to cope with various tasks of molecular diagnostics, it seemed necessary to synthesize and study markers bearing spacers of various lengths that separate the labelling groups from the chromogenic fragment. The present work includes the synthesis of carbazole based long-life fluorescence complexes with long-wavelength absorption, high binding constants with lanthanide ions and reactive groups for the formation of conjugates with biomolecules. The choice of the carbazole moiety is based among other things on the auxochromic effect of the heterocyclic N atom on the fused aromatic fragment as well as N being a reactive site for the introduction of labelling group spacers. Meanwhile, well-established “mild” protocols for the conjugation with proteins have been developed for the carboxyl group, so this group is suitable for labelling. It was also necessary to obtain labelling reagents with a short and with a long spacer separating the carboxylic group from the chromophore. The formation of luminescent nanodispersions including such labelling probes was also of interest, as it can result in the development of corresponding biochips.

2. Results and Discussion

2.1. Preparation of Precursors

The carboxyl group with С5 spacer was introduced by the reaction of the diacetyl derivative 1 with 6-bromohexanoic acid in dry 1,4-dioxane in the presence of lithium hydride (Scheme 1). Compound 2a yields were not less than 45% after crystallization from ethyl acetate. The introduction of a shorter spacer С1 is more difficult and has to be achieved in 2 steps, as direct alkylation of diacetylcarbazole 1 with bromoacetic acid was unsuccessful under various conditions. Therefore, tert-butyl bromoacetate was used as the alkylating agent, giving the intermediate 1а. The subsequent cleavage of the tert-butyl group with trifluoroacetic acid yielded 79% of 2b.

2.2. Synthesis of Labelling Reagents

Compounds 3a-d were obtained by the Claisen condensation of perfluorinated carboxylic acid esters with diacetylcarbazoles 2а, b (Scheme 2). Three different perfluorinated fragments were introduced—CF3, C3F7, C4F9, as it seemed interesting to evaluate the effect of fluorinated substituents on the luminescent properties of the corresponding complexes. It is known that the introduction of perfluorinated fragments of various lengths can be utilized to regulate the hydrophilic-hydrophobic balance which sometimes has a strong influence on the spectral and luminescent parameters of tetraketones and their Eu3+ complexes [11] .

Lithium hydride has been successfully applied as a base for the synthesis of fluorinated β-diketones [12] . To obtain tetraketones 3a-с we used lithium hydride in refluxing THF. Due to the low solubility of compound 2b, the synthesis of 3d was carried out in DMF at ambient temperature (Scheme 2). The resulting yields of compounds 3a-d are satisfactory: 65% - 74%.

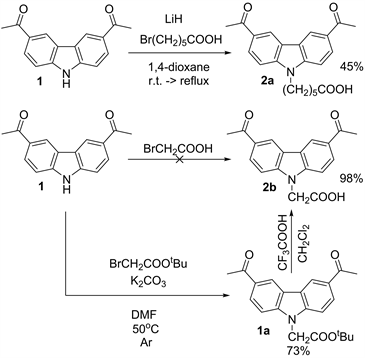

Scheme 1. Synthesis of N-carboxyl-containing 3,6-diacetylcarbazoles.

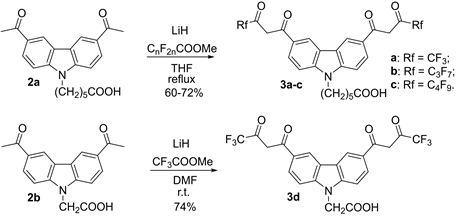

Scheme 2. Synthesis of N-carboxyl-containing fluorinated tetraketones.

2.3. Luminescence Properties and Complex Formation

Two major absorption maxima are observed in the spectra of carbazoles 3a-d in bidistilled water (Table 1).

A stable bathochromic shift in the area of >400 nm is observed for spectra recorded in Tris (pH 7.8). This effect becomes more distinguished as the length of the perfluorinated fragment increases (Figure 1 for 3c). When a solution of Eu(III) is added, a hypsochromic shift is induced in the absorption spectra of the complexes of tetraketones 3a-d, with distinct maxima at about 375 - 380 and 340 nm (Figure 1, e.g. 3c, and Table 2).

When luminescence parameters of Eu3+ mixed complexes with compounds 3a-d and trioctylphosphine oxide (TOPO) (3:2:6 ratio) were studied in aqueous solutions. It was found that for compounds with a longer perfluorinated fragment—3b,c—the intensity of luminescence is by average 15% higher than for 3a

Table 1. Absorption of carbazoles 3а-d in bidistilled water (C3 = 10−5 M. (n = 3; P = 0.95)).

Table 2. Long-life luminescence parameters for the complexes of ligand 3 (10−5 М) with Eu3+ and TOPO (3:2:6) in Tris (0.05 М, pH 7.8) and Triton X-100 (0.1%) containing Tris (0.05 М, pH 7.8).

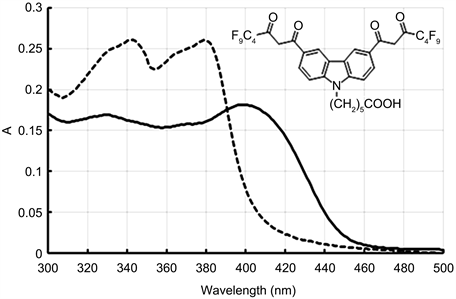

Figure 1. Absorption spectrum of tetraketone 3с (10−5 М) (solid curve) and its complex with Eu3+ and TOPO (dashed curve) (ratio 3:2:6) in Tris (0.05 М, pH 7.8).

and 3d. TOPO is a known synergist of luminescence for europium complexes, as it displaces water from the complexes and thus reduces its fluorescence quenching effect [13] . In a micellar buffer solution, the lifetime of the luminescent state is increased for all the complexes of N-spacer bearing tetraketones 3a-d, but at the same time the luminescent intensity is decreased, which can be due to the presence of the hydrophilic carboxyl-containing spacers that shift the distribution of Eu complexes between the aqueous and the micellar phase in favor of the former.

Stability of the Eu3+ complexes of the synthesized compounds 3 was tested in aqueous buffers for 80 days. It was found that the spacer-bearing tetraketone 3c with the C4F9-fragment possesses the best luminescent performance.

2.4. Synthesis of a Protein Conjugate

The conjugate was obtained using the complex of carbazole 3c, as its luminescence parameters are the most promising. Conjugation was performed in a model experiment with streptavidin after a preliminary activation of the carboxyl group with dicyclohexylcarbodiimide and hydroxybenzotriazole in DMF. The activated intermediate was not isolated and was added to streptavidin in buffer solution (Scheme 3 and Scheme 4).

After the conjugation, the reaction mixture was separated on a Sephadex G25 column. Fractions were analyzed by absorption spectroscopy and the degree of conjugation of the complex to the protein was evaluated (Table 3).

The luminescence spectra of the purified conjugates were recorded in buffer solutions (Tris and MES) containing an excess of TOPO. The parameters of luminescence allow the confident detection of labelled proteins at about 1011 М concentration in both buffers. Therefore, we can conclude that in conjugate 5 there are about 4 - 5 labelling europium tetraketone 3c complex molecules.

2.5. Formation of Nanodispersions

Formation of nanodispersions with carbazole based labelling agents was achieved in several ways. The best results were obtained by doping “Aerosil 380” silica based nanomaterial which had been earlier sonicated in order to overcome the formation of aggregates. Thus formed dispersions possess high aggregate stability as well as luminescence stability which is typical for tetraketone complexes of europium (Figure 2).

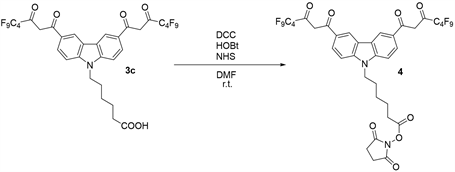

Scheme 3. Activation of carboxylic group with NHS.

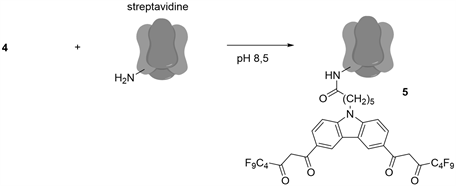

Scheme 4. Preparation of a conjugate 4 with streptavidin.

Table 3. Parameters of the conjugates of compound 3с with streptavidin. F/P is the average number of the bound ligand molecules, detected spectroscopically at 280 and 356 nm.

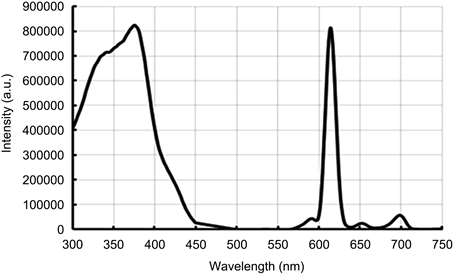

Figure 2. Excitation (left) and emission (right) spectra of the phosphorescent nanoparticles doped with Eu3+ chelate 3а (total Eu3+ content in the dispersion is 1.6 × 10−5 mol/L).

3. Conclusion

In this study, 3,6-bis-β-dicarbonylsubstituted carbazoles bearing N-spacers of different lengths were obtained in satisfactory yields. Under conditions of complexation with Eu3+, these compounds exhibit high luminescence intensity, which allowed to consider the successful possibility of their use for streptavidin conjugation. In addition, formation of luminescent nanodispersions based on the studied carbazoles is perspective. The experimental results show good possibility of the synthesized luminescence probes in applications such as immunoassay protocols.

4. Experimental

The 1H, 19F and 13С NMR spectra were recorded on JEOL JNM-ECX400 (400, 376 and 100 MHz, respectively) and Bruker Avance III 500 (500, 470 and 125 МГц, respectively) instruments in DMSO-d6, with the internal standards being TMS for 1H and 13C NMR and CFCl3 for 19F NMR. Elemental analysis was conducted on a Perkin Elmer CHN РЕ 2400 SII analyzer. Melting points were determined in glass capillaries on a Gallenkamp MPD350.BM3.5 device. The UV-vis spectra were recorded on Shimadzu UV-1650PC in a 1 cm quartz cell and on an in-house Arduino based photometric device. The luminescence parameters of Eu3+ complexes were studied in the wavelength range 200 ÷ 800 nm on a Perkin Elmer LS-5B time-resolved luminescence spectrophotometer and a Thermo Fischer Varioscan Flash microplate reader with a 100 microsecond time delay (td) and 1000 microsecond integration time (tg) in the presence of air oxygen. Sonication was performed in Elmasonic S10/H ultrasound bath at 37 kHz and 30 W power willed with bidistilled deionized water. The reagents used in this work are either industrially produced or supplied by Sigma-Aldrich. Carbazole 1 was synthesized by a modified procedure [14] . Dialysis was conducted in dialysis tubes (cellulose tubular membrane, CelluSep 4, MWCO 12,000 - 14,000 g/mol, 30 mm tube width). Commercial reagents and solvents were purified and prepared according to known guidelines [15] .

Synthesis of tert-butyl 2-(3,6-diacetyl-9H-carbazol-9-yl)acetate 1a:

To a solution of carbazole 1 (0.51 g, 2.03 mmol) in 18 mL of dry DMF, potassium tert-butoxide was added (0.76 g, 6.80 mmol) and the mixture was stirred for 20 min. Subsequently, bromoacetic acid tert-butyrate was introduced (0.44 mL, 3.00 mmol) and stirring continued for 18 h. The reaction mixture was poured to 80 mL of ethyl acetate and the organic layer was washed with saturated brine (4 × 20 mL) and then water (2 × 20 mL). The organic layer was dried with sodium sulfate and evaporated in vacuo (~20 torr). The residue was crystallized from ethanol. The yield is 0.54 g (73%) of colorless powder, m.p. 179˚C - 182˚C (dec.).

1H NMR (CDCl3), δ: 1.42 (s, 9H, −C(CH3)3), 2.71 (s, 6H, 2CH3), 4.94 (s, 2H, CH2), 7.36 (d, 2H, carb., J = 8.0 Hz), 8.16 (dd, 2H, carb., J = 8.0 Hz, J = 2.0 Hz), 8.76 (d, 2H, carb., J = 2.0 Hz). Found, %: C 72.53; H 6.42; N 3.71. C22H23NO4. Calculated, %: C 72.31; H 6.34; N 3.83.

6-(3,6-diacetyl-9H-carbazol-9-yl)hexanoic acid (2a)

To a mixture of carbazole 1 (0.20 g, 0.79 mmol) and 6-bromohexanoic acid (0.33 g, 1.69 mmol) in 30 mL of dry dioxane, 60% sodium hydride suspension was added (0.12 g, 3.00 mmol) and the mixture was refluxed for 2 days. After cooling to ambient temperature, the mixture was poured into a mixture of 20 g of ice and 100 mL of 2% HCl. The separated precipitate was filtered, washed with 2 × 50 mL water, dried in a dessicator over P2O5 and then crystallized from 18 mL of ethyl acetate. The yield is 0.13 g (45%) of light-beige powder, m.p. 122-123°С.

1H NMR (DMSO-d6), δ: 1.25 (m, 2H, CH2), 1.44 (m, 2H, CH2), 1.75 (m, 2H, CH2), 2.12 (m, 2H, CH2), 2.69 s (6H, 2CH3), 4.44 (m, 2H, CH2), 7.69 (d, 2H, carb., J = 8.0 Hz), 8.05 (dd, 2H, carb., J = 8.0 Hz, J = 2.0 Hz), 9.01 (d, 2H, carb., J = 2.0 Hz). Found, %: C 72.68; H 6.71; N 3.55. C22H23NO4. Calculated, %: C 72.31; H 6.34; N 3.83.

2-(3,6-diacetyl-9H-carbazol-9-yl)acetic acid (2b)

To compound 1а (0.3 g, 0.82 mmol) in 10 mL of methylene chloride, trifluoroacetic acid (0.61 mL, 8.2 mmol) was added and the mixture was stirred for 12 h. The mixture was then evaporated (~20 torr) and 3 times co-evaporated with 20 mL portions of methanol. The yield is 0.25 g (98%) of beige powder, m.p. 284˚C - 288˚C (dec.).

1H NMR (DMSO-d6), δ: 2.68 (s, 6H, 2CH3), 5.35 (s, 2H, CH2), 7.68 (d, 2H, carb., J = 8.0 Hz); 8.06 (dd, 2H, carb., J = 8.0 Hz, J = 2.0 Hz), 9.01 (d, 2H, carb., J = 2.0 Hz). Found, %: C 69.95; H 4.74; N 4.61. C18H15NO4. Calculated, %: C 69.89; H 4.89; N 4.53.

6-(3,6-bis(4,4,4-trifluoro-3-oxobutanoyl)-9H-carbazol-9-yl)hexanoic acid (3a)

To a chilled (5˚C) suspension of lithium hydride (0.050 g, 6.3 mmol) in 30 mL of dry dioxane, methyl trifluoroacetate (0.35 g, 2.7 mmol) was added, followed by 3a (0.40 g, 1.1 mmol) in 10 mL of dry dioxane. The obtained mixture was maintained at 80˚C for 96 h. The reaction mixture was cooled to ambient temperature and poured into a mixture of ice and 4% sulfuric acid. The aqueous layer was extracted with 3 × 15 mL of chloroform, washed with 2 × 10 mL of distilled water, the organic extract was dried with sodium sulfate and evaporated to dryness under reduced pressure. The residue was dissolved in 8 mL of chloroform and precipitated with 15 mL of heptane. Yield 0.26 g (43%) of yellow powder, m. p. 108˚C - 112˚C.

1H NMR (DMSO-d6), δ: 1.25 (m, 2H, CH2), 1.44 (m, 2H, CH2), 1.75 (m, 2H, CH2), 2.12 (m, 2H, CH2), 2.69 (s, 6H, 2CH3), 4.48 (m, 2H, CH2), 7.13 (s, 2H, =CH), 7.76 (d, 2H, carb., J = 8.0 Hz), 8.20 (dd, 2H, carb., J = 8.0 Hz, J = 2.0 Hz), 9.18 d (d, 2H, carb., J = 2.0 Hz). 19F NMR (DMSO-d6), δ: −74.55 s (6F, 2CF3). Found, %: C 56.33; H 4.01; N 2.19. C26H21F6NO6. Calculated, %: C 56.02; H 3.80; N 2.51.

6-(3,6-Bis(6,6,6,5,5,4,4-heptafluoro-3-oxohexanoyl)-9H-carbazol-9-yl)hexanoic acid (3b)

To a chilled (5˚C) suspension of lithium hydride (0.09 g, 11.3 mmol) in 30 mL of dry dioxane, methyl perfluorobutanoate (1.25 g, 5.50 mmol) was added, followed by 3a (0.40 g, 1.1 mmol) in 10 mL of dry dioxane. The resulting mixture was refluxed for 84 h. The reaction mixture was then cooled to ambient temperature and poured into a mixture of ice and 4% sulfuric acid. The aqueous layer was extracted with 3 × 15 mL of chloroform, washed with 2 × 10 mL of distilled water, the organic extract was dried with sodium sulfate and evaporated under reduced pressure to a volume of 15 mL. Heptane (5 mL) was added and the mixture was crystallized at −20˚C. The small crystals formed were filtered and the filtrate was evaporated under reduced pressure. The yield was 0.30 g (36%) of a yellow-green powder, m.p. 110˚C - 114˚C.

1H NMR (DMSO-d6), δ: 1.25 (m, 2H, CH2), 1.44 (m, 2H, CH2), 1.75 (m, 2H, CH2), 2.12 (m, 2H, CH2), 2.69 (s, 6H, 2CH3), 4.43 (m, 2H, CH2), 7.15 (s, 2H, =CH), 7.79 (d, 2H, carb., J = 8.0 Hz), 8.22 (dd, 2H, carb., J = 8.0 Hz, J = 2.0 Hz), 9.21 (d, 2H, carb., J = 2.0 Hz). 19F NMR (DMSO-d6), δ, ppm: −83.4 (wid.t, 6F, CF3, J = 12.0 Hz), −127.1 (m, 4F, CF2); −129.4 (m, 4F, CF2). Found, %: C 47.09; H 2.29; N 1.98. C30H21F14NO6. Calculated, %: C 47.57; H 2.79; N 1.85.

6-(3,6-Bis(7,7,7,6,6,5,5,4,4-nonafluoro-3-oxoheptanoyl)-9H-carbazol-9-yl)hexanoic acid (3c)

To a chilled (5˚C) suspension of lithium hydride (0.09 g, 11.3 mmol) in 30 mL of dry dioxane, methyl perfluoropentanoate (1.52 g, 5.50 mmol) was added, followed by 3a (0.40 g, 1.1 mmol) in 10 mL of dry dioxane. The obtained mixture was refluxed for 84 h. The reaction mixture was then cooled to ambient temperature and poured into a mixture of ice and 4% sulfuric acid, followed by extraction with 3 × 20 mL of chloroform, washing with 2 × 10 mL of distilled water, drying with sodium sulfate and evaporation to dryness under reduced pressure. The residue was dissolved in 30 mL of chloroform and refluxed for 1 h with activated charcoal. On filtering the charcoal, half of the solvent was evaporated and the product was precipitated with 20 mL of heptane. The yield was 0.55 g (58%) of a greed powder, m. p. 140˚C - 146˚C (dec.).

1H NMR (DMSO-d6), δ: 1.25 (m, 2H, CH2), 1.44 (m, 2H, CH2), 1.75 (m, 2H, CH2), 2.12 (m, 2H, CH2), 2.69 (s, 6H, 2CH3), 4.44 (m, 2H, CH2), 7.14 (s, 2H, =CH), 7.80 (d, 2H, carb., J = 8.0 Hz), 8.24 (dd, 2H, carb., J = 8.0 Hz, J = 2.0 Hz), 9.19 (d, 2H, carb., J = 2.0 Hz). 19F NMR (DMSO-d6), δ: −82.2 (t, 6F, CF3, J = 6.0 Hz), −121.3 (m, 4F, CF2), −124.3 (m, 4F, CF2), −127.0 (m, 4F, CF2). Found, %: C 44.67; H 2.86; N 1.81. C32H21F18NO6. Calculated, %: C 44.82; H 2.47; N 1.63.

2-(3,6-Bis(4,4,4-trifluoro-3-oxobutanoyl)-9H-carbazol-9-yl)acetic acid (3d)

To a solution of 3b (0.20 g, 0.65 mmol) in 8 mL of dry DMF at ambient temperature, lithium hydride (0.025 g, 3.23 mmol) was added and the mixture was stirred for 5 min. Methyl trifluoroacetate (0.21 g, 1.62 mmol) was subsequently added and the mixture was stirred for 20 hours without heating. The reaction mixture was poured into 50 mL of 5% HCl and extracted with 2 × 20 mL of ethyl acetate. The organic layer was washed with 2 × 10 mL of saturated brine, dried with sodium sulfate and evaporated under reduced pressure. The product was crystallized from 75 mL of chloroform. The yield was 0.24 g (74%) of a yellow powder, m. p. 263˚C - 268˚C (dec.).

1H NMR (DMSO-d6), δ: 1.25 (m, 2H, CH2), 1.44 (m, 2H, CH2), 1.75 (m, 2H, CH2), 2.12 (m, 2H, CH2), 2.69 (s, 6H, 2CH3), 4.44 (m, 2H, CH2), 7.69 (d, 2H, carb., J = 8.0 Hz), 8.05 (dd, 2H, carb., J = 8.0 Hz, J = 2.0 Hz), 9.01 (d, 2H, carb., J = 2.0 Hz). 19F NMR (DMSO-d6), δ: −74.57 (s, 6F, 2CF3). Found, %: C 52.98; H 2.81; N 2.55. C22H13F6NO6. Calculated, %: C 52.71; H 2.61; N 2.79.

A general procedure for the preparation of Eu3+ complexes with carbazoles 3 and TOPO in Tris

A required amount of ligand 3 was dissolved in 2 mL of DMF to give a solution with a concentration of 5 × 103 М. An aliquot was taken and diluted with 0.05 М Tris (рН 7.8) to 105 М. Freshly prepared solutions of 10-4 М of Eu3+ in 105 М НСI and 2 × 104 М of TOPO in ethanol was added, subsequently diluted with the buffer to yield the final solution with the ligand:Eu:TOPO ratio of (1.00:0.67:5.00) × 106 М. The solution was left in the dark for 2 h. In order to prepare a micellar solution, 10% Triton X-100 in ethanol was added that the final concentration of the surfactant was 0.1%. For the study of luminescence properties, 100 μL portions were taken from the solution.

Conjugation of compound 3c with streptavidin

To a 6 × 103 М solution of compound 3c in 875 μL of DMF, a 0.4 M solution of HOBt in 13.25 μL DMF and a 0.2 М solution of DCC in 26.5 μL DMF were added. The mixture was stirred for 15 min. Then, a 0.2 М solution of NHS in 26.5 μL DMF was added and the stirring continued for 19 hours at ambient temperature (20˚С). To perform the conjugation with streptavidin, to 436 μL of the solution of the protein with a concentration of 1.55 mg/mL in 0.05 М phosphate buffer (рН 8.0), 41 μL of the activated ligand solution was added, followed by 3.5 h of stirring at ambient temperature. The conjugate 5 was purified on a column with Sephadex G25, eluting with 0.05 M tris buffer (pH 7.8), flow rate 14 mL/h. The volume of the fractions collected was 0.5 mL.

Synthesis of luminescent silica nanoparticles

Aqueous dispersion of “Aerosil 380” (0.1%, 10 mL) was preliminary sonicated for 4 hours in order to break aggregates, then diluted to 100 mL. While the mixture was stirred at ambient temperature, gradual (30 - 40 min) addition of 1 mL of earlier prepared DMF solution of Eu3+ - tetraketone 3а complex in the presence of luminescence synergist trioctylphosphine oxide (TOPO) was performed ( С E u 3 + TOPO; 1.6 × 102:2.4 × 102:4.8 × 102 mol/L). The formed dispersion was subjected to purification via 3 cycles of dialysis, 10 h each. The procedure was conducted in dialysis tubes, 10 mL of dispersion against 1 L of distilled and deionized water. The intensity of luminescence of the obtained dispersion is comparable to the one of the separately prepared tetraketone 3а complex, but the stability of luminescence is significantly greater (>6 months).

Conflicts of Interest

The authors declare no conflicts of interest regarding the publication of this paper.


[1] Hagan, A.K. and Zuchner, T. (2011) Lanthanide-Based Time-Resolved Luminescence Immunoassays. Analytical and Bioanalytical Chemistry, 400, 2847-2864.
[2] Kricka, L.J. and Park, J.Y. (2014) Assay Principles in Clinical Pathology. Pathobiology of Human Disease, 3207-3221.
[3] Yuan, J. and Matsumoto, K. (1996) Synthesis of a New Tetradentate Β-Diketonate-Europium Chelate That Can Be Covalently Bound to Proteins in Time-Resolved Fluorometry. Analytical Sciences, 12, 695-699.
[4] Romanov, D.V., Vasil'ev, N.V., Lyamin, A.I., Ivanovskaya, N.P. and Osin, N.S. (2006) Synthesis of Fluorine-Containing Tetraketones and Diketo Esters and Luminescence-Spectral Properties of Their Complexes with Lanthanide Ions. Russian Chemical Bulletin, 55, 276-280.
[5] Zhang, L., Wang, Y.J., Ye, Z.Q., Jin, D.Y. and Yuan, J.L. (2012) New Class of Tetradentate β-Diketonate-Europium Complexes That Can Be Covalently Bound to Proteins for Time-Gated Fluorometric Application. Bioconjugate Chemistry, 23, 1244-1251.
[6] Taydakov, I.V., Akkuzina, A.A., Avetisov, R.I., Khomyakov, A.V., Saifutyarov, R.R. and Avetissov, I. Ch. (2016) Effective electroluminescent materials for OLED Applications Based on Lanthanide 1.3-Diketonates Bearing Pyrazole Moiety. Journal of Luminescence, 177, 31-39.
[7] Nehra, K., Dalal, A., Hooda, A., Bhagwan, Sh., Kumar, S.R., Mari, B., et al. (2022) Lanthanides Β-Diketonate Complexes as Energy-Efficient Emissive Materials: A Review. Journal of Molecular Structure, 1249, Article ID: 131531.
[8] Vasil’ev, N., Romanov, D. Ivanovskaya, N. and Osin, N. (2005) Complexing Dibenzene-Containing Five-Membered Cyclic Compounds Containing Two Symmetrical beta-Dicarbonyl Substituents with Fluorinated Radicals. RU Patent No. 2296756.
[9] Pugachyov, D.E., Kostryukova, T.S., Ivanovskaya, N.P., Lyamin, A.I., Romanov, D.V., Moiseyev, S.V., et al. (2019) Fused Fluorinated Bis-β-Diketones and Luminescent-Spectral Properties of Their Complexes with Europium. Russian Journal of General Chemistry, 89, 965-970.
[10] Kostryukova, T.S., Vasil'ev, N.V., Ivanovskaya, N.P., Zatonskii, G.V. and Osin, N.S. (2015) A Label for Immunofluorescence Analysis Based on Europium Complexes With Fluorinated Β-Diketone of the Carbazole Series. Russian Journal of Bioorganic Chemistry, 41, 186-191.
[11] Wu, F.B. and Zhang, C. (2002) A New Europium Β-Diketone Chelate for Ultrasensitive Time-Resolved Fluorescence Immunoassays. Analytical Biochemistry, 311, 57-67.
[12] Ratner, V., Khomutov, O., Karpenko, N., Filjakova, V. and Pashkevich K. (1995) Method of Synthesis of Fluorine-Containing β-Diketones. RU Patent No. 2100345 C1.
[13] Qina, Z., Yua, J., Zhylkob, V., and Daic, L. (2021) Preparation and Photoluminescence of Europium(III) Complexes with TPPO as Neutral Ligand. Russian Journal of Applied Chemistry, 94, 1147-1152.
[14] Plant, S.G.P., Rogers K.M. and Williams S.B.C. (1935) The Friedel and Crafts Reaction in the Carbazole Series. Journal of the Chemical Society, 65, 741-752.
[15] Armarego, W.L.F. and Chai, C.L.L. (2012) Purification of Laboratory Chemicals. 7th Edition, Butterworth-Heinemann, Oxford; Waltham, MA.
