Tissue Matrices Scaffold for the Preparation of Lithium Cobalt Oxide

Parbhej Ahamed, Mohammad Abu Yousuf^*

Department of Chemistry, Khulna University of Engineering & Technology, Khulna, Bangladesh.

DOI: 10.4236/ampc.2020.105009

Abstract

This study reports an innovative approach of solid state reaction for the production of lithium cobalt oxide (LiCoO₂/LCO) using commercially available tissue matrices. Li⁺ and Co²⁺ grafted tissue matrices calcined at 700°C for 6 hours to prepare black color LCO materials. A series of techniques such as FT-IR, XRD, FESEM, TGA and UV-visible spectroscopy were applied for characterization of the prepared LCO materials. Fourier-transform infrared spectroscopy (FT-IR) data identified the vibration mode of CoO₆ and O-Co-O in the prepared LCO materials. FESEM images of tissue assisted LCO possessed larger size and voids compared to the LCO prepared without any tissue matrix. X-ray diffraction (XRD) data approved the layer structure of LCO with R3m space group. Analysis of XRD spectra revealed that tissue matrices reduced the unit cell lattice constant of LCO materials. Properties such as X-ray density (ρ_x), bulk density (ρ_b) and grain size (D) have been calculated from the XRD spectrum for assessment of the structural properties of the prepared LCO materials. Thermal analysis results indicated the relation of tissue matrix combustion carbon coating on LCO surface for different absorption behavior of the prepared materials. The band gap of tissue assisted LCO was found to decrease compared to the LCO prepared without tissue matrix. The synthesis method used in this study can be broadly applicable as a simple and inexpensive approach for the preparation of LCO materials of Li-ion battery.

Keywords

Lithium Cobalt Oxide, Tissue Matrix, Absorption, Solid State Reaction

1. Introduction

Lithium cobalt oxide as an active cathode material has been playing a major role for today’s commercial lithium ion battery since its first market introduction by Sony group, Japan, in 1991 [1] [2] [3] [4] [5]. Portable electronics and electric vehicles perpetual demand around the globe has made LCO a focal point of ongoing LIB research. Statistically more than 31% commercially manufactured LIB use LCO because of its well-ordered layer structure for fast and reversible lithium intercalation [5] [6]. Ideally, layered crystal structure LCO is considered an important material for energy storage solution because of its high specific energy density and volumetric energy density. However, until now the discharge capacity (140 mAh/g) of this key materials is over half of its theoretical capacity (274 mAh/g) [7] [8]. Such behavior of capacity loss belonged to the irreversible phase change of LCO during de-intercalation and/or intercalation process [9] [10] [11]. It has been reported that phase changes of LCO is a function of the extraction of Li⁺ ions from LCO and its operating potential [12] - [17]. This structural phase transitions of LCO represented a dramatic change in the mechanical properties of the LCO crystallite [18].

To solve the aforementioned dilemma of LCO, various methods such as solid state reaction [19] [20], sol-gel [21] [22], hydrothermal [23], co-precipitation [24], pulsed layer deposition [25], freeze-drying rotary evaporation [26] have been developed to maintain its structure stability. These methods require long reaction time, complex conditions, chemicals, large quantity of solvents and organic materials, thus affect the environment negatively. In addition, they are still far way to prepare stable structure LCO because of their strict synthetic conditions and complicated procedures [27]. Regarding this context the development of an eco-friendly method for the fabrication of LCO will be worthy.

This study demonstrated a novel green synthesis approach of tissue matrix and water to prepare LCO materials. The purpose of using tissue was to provide a soft template for the insertion of metal components into its pore through physical interaction. It is found that the ordered cross-linked tissue scaffold could be a useful means of preparing nanostructured LCO without any special conditions such as expensive equipment, large quantity of solvents, organic materials and others. To the best of our knowledge, research regarding the use of tissue scaffold for optimizing the structure of LCO materials has not yet been published elsewhere. So, the formation of LCO materials from the metals ions captured tissue scaffold and analysis of the prepared materials structure using various techniques have been presented in this study.

2. Experimental

LiOH·H₂O (Loba Chemie Co. Ltd., India), CoSO₄·7H₂O (Merck, Germany), wet tissue (Baby wipes, Pozzy, Istanbul, Turkey) and facial tissue (Fresh, Bangladesh) were purchased and used as received. Stoichiometric amount of LiOH·H₂O was dissolved in deionized water. Then the solution was absorbed by tissue. LiOH·H₂O aqueous solution absorbed tissue was then evaporated at 110˚C to remove water. In the same way LiOH·H₂O grafted tissue was placed into CoSO₄·7H₂O solution. After complete absorption of CoSO₄·7H₂O aqueous solution the tissue matrices were evaporated again at 110˚C to eliminate water. Both LiOH·H₂O and CoSO₄·7H₂O grafted tissue matrices were then placed into a muffle furnace and calcined at 700˚C for 6 hours. The prepared sample was cooled down to room temperature and taken into a vial. The aforementioned procedure was followed to prepare LCO using two types of tissue paper separately. Prepared samples were subjected to FT-IR, XRD, FESEM, TGA and UV-visible spectroscopy techniques for characterization.

2.1. Fourier Transform Infrared Spectroscopy (FT-IR)

Samples for FT-IR measurements were made by mixing LCO materials in KBr pellets. FT-IR spectra were recorded using IR Tracer-100 of Shimadzu Corporation, Japan. The prepared LCO samples were finely grinded with KBr. The mixture was then pressed with a pressing machine to obtain a transparent pellet. Pellet for each material was scanned in the wave number range of 400 - 4000 cm⁻¹.

2.2. Powder X-Ray Diffraction (XRD)

The phases present in the prepared LCO materials was confirmed with a high resolution Bruker Advance D8 XRD diffractometer. The diffractometer was equipped with a CuK_α monochromated beam (λ = 0.15406 Ǻ) produced at 40 kV and 40 mA. The sample holders have been loaded by simply pouring it with LCO materials. Then it was mounted on the diffractometer. The scanning (2θ) was performed from 10˚ to 70˚.

2.3. Parameters Such as X-Ray Density, Bulk Density and Grain Size Determination

Various structural information such as X-ray density (ρ_x), bulk density (ρ_b), grain size (D) and percentage of porosity of the prepared samples were calculated from the obtained XRD spectra using the following equations.

X-ray density, ${\rho }_x=\frac{ZM}{NV}$ (1)

where M is the molecular weight of the corresponding composition, N is the Avogadro’s number (6.023 × 10²³ mole⁻¹), V is the volume of the unit cell and Z is the number of molecules per unit cell.

Bulk density, ${\rho }_b=\frac{m}{V}$ (2)

where m is the mass and V is the volume of the sample.

Grain size, $D=\frac{0.9\lambda }{\beta \cos \theta }$ (3)

where D is the crystal size; λ is the wavelength of the X-ray radiation (λ = 0.15406 nm) for CuK_α and β is the line width at half-maximum height.

2.4. Field Emission Scanning Electron Microscopy (FESEM)

The morphologies of the prepared LCO materials were investigated using JSM-7610, Shimadzu Corporation, Japan. Sample was suspended in ethanol. Then a conductive carbon tape was pasted on the alumina plate. 2 - 3 drops of the suspended sample was put on the conductive carbon tape. It was thereafter allowed to dry for a sufficient period of time. Excess powder on the sample plate was removed using an air blower and sputtered with gold. Finally, the sample plate was mounted on the sample chamber for SEM operation.

2.5. Thermogravimetric Analysis (TGA)

Thermogravimetric analyses (TGA) of the prepared LCO materials were performed using STA7200, Hitachi thermal analysis system. LCO material was added to a TGA sample holder pan. Mass of the sample was noticed with a precision balance. It was therefore held on the pan at room temperature under a flow of nitrogen gas to create inert environment for the sample and gases such as oxygen, water vapor were driven off. Sample was then heated at a rate of 10˚C/min until the temperature reached from room temperature to 550˚C. TGA curves of the samples were obtained from computer based TGA program.

2.6. UV-Visible Spectroscopy

Band gap energy for each LCO material was determined by using the respective absorption spectrum obtained using UV-1800 spectrophotometer of Shimadzu Corporation, Japan, in the range 200 - 800 nm. LCO sample was suspended in ethanol by shaking well. Then it was taken in a cuvette and was placed into the cuvette holder of UV-visible spectrometer for measuring the absorbance spectrum.

3. Results and Discussion

Figure 1 is a schematic illustration of the process used to prepare tissue assisted LCO materials. The tissue matrix comprised of cellulose backbone material absorbed Li⁺ ions from its aqueous solution. Upon evaporation Li⁺ ions were grafted into the pores of cellulose backbone by cross-linking with cellulosic hydroxyl groups. Then, Co²⁺ ions were inserted into Li⁺ grafted tissue matrix in the same way. Calcination reaction at 700˚C removed tissue templates and yielded LCO materials. LCO without tissue template was also prepared under the same reaction condition. The prepared samples were characterized using FT-IR, XRD, FESEM, TGA and UV-visible spectroscopy techniques.

FT-IR spectrum of LCO samples recorded within 400 - 4000 cm⁻¹ and presented in Figure 2. The oxide network of LCO is mainly composed of stretching mode of Co-O bond and bending mode of O-Co-O bond in the octahedral CoO₆ moiety [28] [29] [30] [31] [32] as a high frequency shoulder. According to Huang and Frech IR active mode of LiO₆ octahedral moiety appears as a lower frequency shoulder due to the motion of lithium atom [33]. FT-IR analyses exhibit that the

Figure 1. Schematic diagram of the preparation of tissue assisted LCO materials.

Figure 2. FTIR spectrum of the prepared LCO materials.

position of υ (CoO₆) and δ (O-Co-O) vibration mode located between 570 - 650 cm⁻¹ and 470 cm⁻¹, respectively. Thus, possible stretching vibration of Co-O and bending motion O-Co-O of CoO₆ octahedron of prepared LCO materials recorded by FT-IR spectroscopy. Location of peak positions in these regions are also closely resembled with the reported values found in the literature [34]. The absorption spectrum of LiO₆ octahedron below 300 cm⁻¹ has not been recorded due to instrument limitation. Thus, the appearance of distinct peaks in the region of 400 - 600 cm⁻¹ confirmed the formation of LCO with R3m space group.

Appearance of peak for C=O vibration observed in the region of 1140 - 1150 cm⁻¹. The absorption at 1636 and 3400 cm⁻¹ have been identified for the bending and stretching vibration modes of −OH group of absorbed water molecules on the surface of the LCO [35]. Peaks related to C=O and −OH groups has been ascribed for the absorption of CO₂ and water on LCO in the air. These results are in close agreement with other studies [36] and suggested the disordered rhombohedral LCO structure as evidenced by the presence of small band at ≈450 cm⁻¹ [29].

The XRD patterns of the prepared LCO compounds are given in Figure 3. The reflection lines located at 2θ of 18.977, 36.821, 38.519, 44.771, 49.037, 59.294, 65.186 and 68.573 corresponding to the planes (003), (101), (006)/(012), (104), (015), (107)/(009), (018)/(110) and (113) agree well with the standard XRD patterns of LCO [37]. From the XRD pattern it is seen that crystalline LCO formed along with some impurity phases. The possible impurities are Li₂CO₃ [38] and Co₃O₄ [39]. Impurities formation may have been resulted from the non-homogeneous distribution of metal ions (Li⁺ and Co²⁺) into the tissue matrix. However, the layered structure of the LCO materials is marked by the presence of (003) and (104) peak [40]. The clear splitting of (006)/(012) and (108)/(110) peaks are also confirmed about LCO layered structure [41]. XRD information of the prepared LCO materials is summarized in Table 1.

In the layer structure LCO crystallizes where Li⁺ ions present as edge sharing octahedra between the extended anionic sheets of cobalt and oxygen atoms. Each close packed layer arranged is firmed by piling the atoms in a regular triangular lattice. According to Bragg’s law [42],

$2d\sin \theta =n\lambda$ (4)

where n is the order of diffraction (usually n = 1), λ is the X-ray wavelength and d is the spacing between planes of given Miller indices h, k and l. Interplanar spacing d of a hexagonal rhombohedral structure is related to the lattice constants a, c and the Miller indices by the following relation [42].

$\frac{1}{d_{hkl}^2}=\frac{4}{3}\left(\frac{h^2+hk+k^2}{a^2}\right)+\frac{l^2}{c^2}$ (5)

The lattice constant a, c were calculated from the splitting peaks (107) and (009) of XRD spectrum using Equation (5). Values of a and c are almost consistent with those reported by Akimoto et al. [43]. The lattice parameter values of the tissue assisted LCO are little bit smaller than the LCO prepared without using tissue. This small decrease of the lattice parameter value of the tissue assisted LCO may be related to a higher electronic attraction between the CoO₂ layers. The obtained lattice parameter values of the prepared LCO materials were used to calculate unit cell volume using the following formula [44].

Figure 3. XRD spectra of the prepared LCO materials.

Table 1. Positions of the X-ray peaks, interplanar spacing and corresponding miller indices of each plane.

$V=\frac{2}{\sqrt{3}}{a}^{2}c$ (6)

Grain sizes of LCO samples were calculated using Equation (3). The calculated values are given in Table 2. The comparison of lattice parameter and volume of the prepared LCO samples with their grain size are depicted in Figure 4. It is evident from Figure 4 that the tissue assisted LCO grain sizes are larger relative to the LCO_0 one. This is possibly associated with the grain growth environment of LCO precursors. In case of LCO_0 the precursors have larger dispersion and the grain growth may be occurred in a more disordered way. In contrast, the dispersion of LCO precursors in tissue matrices is occurred in the ordered cellulose network of tissue matrix. The ordered cellulose network and its combustion energy may favor the formation of larger grain sizes LCO.

X-ray density (ρ_x) and bulk density (ρ_b) of the prepared LCO materials has been calculated using Equations (1) and (2), respectively. These values are listed in Table 3. X-ray density ρ_x was found to be slightly increased for tissue matrix assisted LCO materials. This may be related to LCO crystallite growth process in presence of tissue matrix. Combustion of tissue matrix might enhance LCO precursor’s nucleation rate and produced dense LCO particles. Therefore, the electronic attraction between the CoO₂ layers of LCO crystal structure has been increased. It is found that the bulk density slightly decreased with using tissue matrix. This may be due to the formation of voids on the surface of LCO particles. The relation between X-ray density and bulk density is depicted in Figure 5.

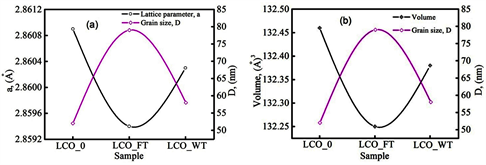

Figure 4. Comparison of (a) lattice parameter with grain size (b) volume with grain size.

Figure 5. Variation of bulk density and X-ray density of the prepared LCO in cellulose matrix.

Table 2. Structural information of the prepared LCO materials.

Table 3. X-ray density, bulk density and porosity of the prepared samples.

Field emission scanning electron micrographs are shown in Figure 6. It represents the distinctly different morphologies of the prepared LCO samples. Tissue assisted LCO samples consist of agglomerated particles whereas LCO_0 do not. The prepared LCO are mainly rhombohedral in shape [36]. The variation in the size of the particles clearly reveals that tissue matrix greatly affect the morphology of the prepared LCO material. LCO_0 represents smaller particle size compared to LCO produced in presence of tissue matrices. This may be related to the crystallite growth environment. During the formation of LCO_A and LCO_AL the crystallite growth environment got more energy from the combustion of tissue matrix and resulted larger size particles compared to LCO_0. The respective crystallite sizes (Table 2) of LCO materials as calculated from the XRD spectra are in good agreement with this observation.

Thermal analyses of the prepared LCO samples were performed in the temperature range of 30˚C to 550˚C. Figure 7 shows the TGA plot of LCO samples.

The initial weight loss below 300˚C is related to the losses of absorbed water molecules on LCO samples [45]. Weight loss for both tissues assisted LCO is about 3% while that for LCO_0 is 4.2%. The attachment of carbon on LCO from tissue matrix during calcination may play an important role to inhibit the absorption of water molecule. As a result, weight loss by tissue matrix assisted LCO is less than LCO_0. The recorded thermogram remains almost same at temperature > 320˚C. It followed a plateau up to 550˚C which implies the formation of high temperature R3m LCO phases [45].

According to valence bond theory, LiCoO₂ is formed through the hybridization of O 2p orbital with Co 3d orbital [46]. Some spectroscopic measurements such as X-ray photoelectron spectroscopy (XPS) and X-ray absorption spectroscopy (XAS) suggested that O 2p − Co 3d hybridized orbital in LiCoO₂ present as (t_2g)⁶ − (e_g)⁰ [47] [48]. The electronic transition in LiCoO₂ takes place as a result of d-d transition of electron from (t_2g)⁶ orbital to (e_g)⁰ orbital [49] [50]. The investigated optical absorption spectra of the prepared LCO materials in ethanol are shown in Figure 8.

The transition of electron is broadened and appeared after 300 nm. This broadening and shifting of absorption band to lower wavelengths (higher energies) may be due to the favorable interaction of Co³⁺ with protic ethanol solvent. The absorption peak for LCO_0 is located at 277 nm. Tissue matrix assisted LCO_FT and LCO_WT located at 279 nm and 281 nm, respectively. Two reasons are expected for the variation of absorption peaks position of the prepared LCO materials. One is related to the size of the particles. The other is the coating of carbon on LCO from the combustion of tissue matrices. However, the measured absorption spectra are typical of LiCoO₂ as reported by Ghosh et al. [36].

The band gap values of LCO samples were determined by using their respective absorption spectra through Tauc formula [51].

${\left(\alpha h\nu \right)}^{1/n}=A\left(E-E_g\right)$ (7)

where α is the absorbance coefficient, A is a constant, E = hv is the photon energy, E_g is the band gap energy and n = 1/2 for direct transition of electron. The E_g values of LCO samples are obtained by extrapolating the linear portions of (αhv)² vs hv graph to intercept the photon energy axis. Tauc plots of LCO samples are given in the inset of Figures 8(a)-(c). E_g values of LCO_0, LCO_FT and LCO_WT are 5.4577, 5.4361 and 5.4285 eV, respectively. The calculated band gap energies are related to their respective particle size (Table 2) and coated carbon on LCO surface. E_g values variation of LCO is represented in the following Figure 9. It is seen that E_g values of LCO_FT and LCO_WT samples are reduced by 0.4% and 0.5% in compared to LCO_0 sample.

(a) (b) (c)

Figure 6. FESEM images of LiCoO₂ (a) without tissue (b) using facial tissue (c) using wet tissue.

Figure 7. Thermal analysis of the prepared LCO materials.

Figure 8. UV-visible spectrum of the prepared LCO materials.

Figure 9. Variation of band gap energy of LCO samples.

4. Conclusion

Tissue matrix as a soft scaffold allowed the formation of LCO with some by products Li₂CO₃ and Co₃O₄. FT-IR identified the presence of CoO₆ vibration peak in the prepared LCO materials. XRD studies confirmed the layer structure in LCO phase with R3m space group. Lattice parameter of tissue matrix assisted LCO decreased slightly compared to LCO_0. Grain sizes of tissue assisted LCO are larger compared to LCO_0 one. It is evidenced by both XRD and FESEM. Thermogravimetric analysis showed that tissue assisted LCO absorbs less amount of water. The narrowing of band gap value of tissue assisted LCO evidenced the coating of carbon on LCO surface.
