Pressure Gradient Control Strategies Based on Disturbance Rejection for Typical Pharmaceutical Cleanrooms ()
1. Introduction
With the fast development of precision manufacturing and cleaner production, the number and scale of cleanrooms increase rapidly over the world. In the United States, cleanrooms space grew from 4.2 million m2 in 1993 to 15.5 million m2 in 2015 [1] , average growth rate was about 11.7% per year. In China, growth rate of cleanrooms is about 26.4% per year. Most of the cleanroom space is pharmaceutical cleanrooms, the problem how to keep pressure gradient among cleanrooms is critical. Adaptive pressure gradient between adjacent cleanrooms can keep good manufacturing circumstances in preventing the reveal of airflow direction and cross infection [2] [3] [4] [5] .
In present, there are two typical controller methods. One approach is constant air volume (CAV), the cleanroom’s pressure difference (PD) is maintained by tuning manually supply or return airflow valves, then the valves are fixed when the system is working. However, after the system runs a long time, the change of the setting or restarting the system, workers must tune again valves and change the supply or return airflows [3] [6] [7] . Another approach is variable air volume (VAV), supply airflow is fixed for keeping air change rate of the cleanroom and designed cleanroom level. The pressure difference is maintained around the designed value based on tuning return airflow in real time by PID controllers [4] [7] .
However, there exist many problems in the control of the pressure difference in cleanrooms. One problem is there are many disturbances in cleanroom system, such as open and close of the door, the periodic change between occupied time and unoccupied time, and so on. These disturbances can cause the pressure difference frequent vibration, long responding time and big overshot [8] . Another problem is that almost all cleanrooms have the high design pressure difference for maintaining manufacturing circumstance, this causes huge energy waste [9] . Thus, a good method with strong disturbance rejection and high precision in controlling pressure difference in cleanroom can attract researcher’s attention.
Active-disturbance-rejection-control (ADRC) algorithm was proposed in [10] , its main idea is to estimate actively the whole disturbances of the system which caused by the unknown dynamics and external disturbances, compensate the disturbance using control laws, and obtain strong disturbance rejection ability [11] [12] . In 2003, Professor Gao in Cleveland State University proposed linear-active-disturbance-rejection-control (LADRC) [13] , the research has attempted to simplify the controller structure and the tuning parameters of the ADRC, promote the technology rapidly development in its applications and theory. The algorithm was applied in thermal power generation [14] [15] [16] [17] , air-condition system [18] , aerospace [19] , magnetic suspension [20] , heat emission [21] etc.; The technology is also applied in producing the Parker Parflex hose extrusion facility [22] and controller chips in Texas Instruments that run LineStream’s SpinTAC software [23] [24] .
In the paper, we divide the disturbances into step disturbance (caused PD to increase and decrease suddenly), ramp disturbance (change of PD slowly) and periodic disturbance (change of operating model, fan vibration). We build cleanroom model composed by a cleanroom and an airlock on Matlab/Simulink software platform, design CAV control, PID control and active-disturbance-rejection-control to keep the cleanroom’s PD. Results show that active-disturbance-rejection-control has advantages in responding time and disturbance rejection, and good capabilities in rejecting disturbance and control precision.
2. Cleanroom and Airlock Model
In the paper, we study the positive pressure pharmaceutical cleanroom composed by a cleanroom and an airlock, and design the pressure differences are 30 Pa and 15 Pa, respectively. Properties and configuration of the system in this study are shown in Figure 1. The three kinds of blue colors represent the three different pressures of the cleanroom p1, airlock p2 and the surrounding p0.
The system’s model is obtained by mass balance in the following.
(1)
and
(unit kg/s), represent change rates of inputting and outputting air mass in cleanrooms, respectively. According the ideal-gas relation of Boyle-Gay Lussac equation, we get
(2)
where R is the gas constant of air, V is volume of the cleanroom, T is temperature of the cleanroom we suppose the temperature is a constant because the change of the temperature is little during the process. Suppose that the flow of the cleanroom is turbulent, the airflows through the leakage areas can be calculated by the following equation
(3)
where k is matching conductance between the rooms with pressure p1 and p2.
According Equations ((1), (3)), we get the formula of the mass change rate
(4)
where
,
are supply and return airflow, respectively,
are leakage conductances. Based on Equations (1) and (3), we obtain the airlock model
Figure 1. The diagram of positive pressure pharmaceutical cleanroom.
(5)
where
,
are supply and return airflow, respectively. Combined Equations ((2) (3) (5)), we get the model of the system, and calculate the initial condition and list them in Table 1.
3. Disturbances Classification of the Cleaner System
In the process of producing for the pharmaceutical cleanrooms, there are many kinds of disturbances that make influence on the setting. Based on investigation, we classify the disturbances of the pharmaceutical cleanrooms into three types, the first disturbance is step which is caused pressure to increase and decrease suddenly by opening/closing the door, supply/return air valves broken, and exhaust hoods open suddenly; the second is ramp disturbance which is caused pressure change slowly by increasing of the resistance force of the pipes and tuning exhaust airflow slowly based on some reasons; the third is periodic disturbance which is caused by operating mode switch between occupied and unoccupied time and airflow periodic fluctuation.
4. Simulations in DP Control of the Cleanroom
4.1. CAV Control
CAV is a passive method to control cleanroom’s DP, it keeps DP of the cleanroom around the design value by preserving the balance between supply and return airflow, the approach is operated by tuning manually airflow valves. We study the different disturbance makes influence on the pressure in CAV control.
1) Step disturbance
Experiment condition: the pressure of airlock increase rapidly 5 Pa at t = 70 s, the pressure change of the cleanroom is shown in Figure 2(a).
Experiment condition: the pressure of airlock increase gradually 5 Pa from t = 70 s to 80 s, the change of cleanroom pressure is given in Figure 2(b).
2) Periodic disturbance (sine wave disturbance)
Experiment condition: sine wave disturbance of the airlock’s pressure is added at t = 70 s, amplitude is 5 Pa, the change of cleanroom’s pressure is shown in Figure 3.

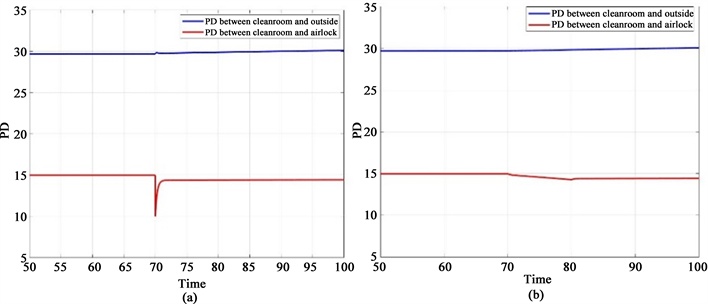

Figure 2. Change of cleanroom pressure in step and ramp disturbances. (a) Step disturbance; (b) Ramp disturbance.
Figure 3. The change of the cleanroom’s pressure difference in sine wave disturbance.
4.2. VAV Control Method
We control the cleanroom’s pressure by the pressure difference sign which is collected by pressure sensor, and design PID control and active-disturbance-rejection-control. The control algorithm can maintain the required pressure gradient. The control diagram is dawn in Figure 4.
We build the equations of the pressure difference and airflows based on Figure 4:
(6)
Thus, the return airflow
(7)
4.2.1. PID Control Diagram
We build the simulating model in Matlab/Simulink software platform, and verified the rejection disturbance capability of the system, the experiment conditions are same with CAV control, the responding curves are given in Figure 5 and Figure 6.
The VAV control method on pressure difference has better abilities in rejecting disturbances than CAV, it represents in lower responding time and higher control precision.
4.2.2. Active-Disturbance-Rejection-Control on PD
In this study, we choose linear active-disturbance-rejection-control (LADRC) to replace PID control in 4.2.1, the following formula is the expression of LESO.
(8)
where u and y are input and output of the controlled object, respectively, β1 and β2 are observer gains, the variables z1 and z2 of the LESO are approximated as y
Figure 4. The control diagram of the VAV.
Figure 5. The responding curves of the system’s pressure difference in PID control. (a) step disturbance; (b) ramp disturbance.
and whole disturbances in real time, respectively. The control law of LADRC can be expressed as follows:
(9)
The diagram of LADRC is given in Figure 7.
The responding curves are shown in Figure 8 & Figure 9 when the system is
Figure 6. The responding curves of the system’s pressure difference in sine wave disturbance.
Figure 8. The responding curves of the system’s pressure difference in LADC. (a) Step disturbance; (b) Ramp disturbance.
Figure 9. The responding curves of the system’s pressure difference in sine wave disturbance.
Table 2. Contrastive analysis on simulation.
influenced in disturbances.
Based on simulation of the three method of PD control, we compare quantitatively the results from responding time and overshot rate in Table 2.
5. Conclusion
There are many frequent disturbances in the manufacturing process of the pharmaceutical cleanroom. There is lower precision of the pressure control algorithm in factory. In this study, we propose to use a new control method to keep setting and avoid cross infection. The new approach is active-disturbance-rejection-control which has strong disturbance rejection ability and high control precision. The VAV control algorithm based on LADRC is designed in typical cleanroom system which consists of an airlock and a cleanroom. The simulation results show that LADRC has better capability in responding time and overshot than traditional CAV control. Especially, LADRC has advantages in rejection disturbances and promoting control precision. The results propose an alternative approach for engineers in pressure control.
Funding
This project is supported the China National Key R&D Program (Grant No. 2018YFC0705201).
