Effect of Organic Dye on the Photovoltaic Performance of Dye-Sensitized ZnO Solar Cell

Abstract

This work investigated the influence of the organic dyes Orange IV and Eosin Y as photosensitizers on the photovoltaic parameters of ZnO photoelectrode dye-sensitized solar cells (DSSCs). ZnO was prepared by homemade ZnO nanoparticles. X-ray powder diffraction (XRD), scanning electron microscopy (SEM) and BET measurements were used to characterize the structures and the morphology of ZnO nanostructures. The Orange IV demonstrated the best performance compared with the cell sensitized with the Eosin Y. This occurred as Orange IV demonstrated the highest molar extinction coefficient.

Share and Cite:

Al-Omair, N. , Reda, S. and Al-Hajri, F. (2014) Effect of Organic Dye on the Photovoltaic Performance of Dye-Sensitized ZnO Solar Cell. Advances in Nanoparticles, 3, 31-35. doi: 10.4236/anp.2014.31005.

The sun’s energy is the primary source for most energy forms found on the earth. Solar energy is clean, abundant and renewable. Solar energy holds tremendous potential to benefit our world by diversifying our energy supply, reducing our dependence on imported fuels, improving the quality of the air we breathe and stimulating our economy by creating jobs in the manufacture and installation of solar energy systems. Currently, a significant and growing solar industry in the world is serving customers by providing solar water heating, pool heating and solar-electric systems [1].

Among alternative forms of solar cells, dye-sensitized solar cells (DSSCs) are low-cost solar-cells belonging to the group of thin film solar cells. These cells have a lot of potentials because they can be made and manufactured with low-cost materials. Unlike traditional solar cells, dye-sensitized cells can work effectively in low light conditions and are less susceptible to losing energy to heat. It is based on a semiconductor formed between a photo-sensitized anode and an electrolyte [2].

Generally, a DSSC device comprises a large band gap semiconductor nanocrystalline porous electrode which was fabricated on a transparent conducting oxide (TCO) glass and modified with dye (usually the ruthenium (II) complex), a Pt counter electrode and an electrolyte solution (usually I3/I in a mixture of organic solvents) between the two electrodes [3,4]. The role of semiconductor (e.g., anatase TiO2) porous electrode is crucial, and the cell’s overall energy conversion efficiency strongly depends on the surface and electronic properties of the electrode [4,5]. Until now, the DSSCs made with porous anatase TiO2 films have represented the highest energy conversion efficiency of 11.1% [6], although various oxide semiconductors, such as ZnO [7], have been used to prepare the porous electrode. The ZnO can be used as electrode material for the DSSCs due to its band gap (3.37 eV) and electronic properties similar to TiO2. In addition, ZnO with flat band potential higher than TiO2 is beneficial for enhancing the cell’s open-circuit photovoltage.

Many kinds of dyes such as Eosin Y and Orange IV have been used as sensitizers. Organic dyes have many advantages for their application in DSSCs. Firstly, absorption coefficients of organic dyes are generally much higher than that of metal complexes, therefore, the used amount of organic dyes is relatively lower. Secondly, there are many species of organic dyes, and light absorption band can be easily controlled and turned. Thirdly, the organic dyes on semiconductor film are easily removed by sinter in air; therefore, recycle use of the photo electrode leads to great cost-down.

In this paper, we present our study on the synthesis and characterization of ZnO in nanocrystalline form to prepare the photoelectrochemical solar cell. There are few studies on the sensitization of the ZnO electrode by organic dyes. This paper focuses on the sensitization of this metal oxide with Eosin Y dye and Orange IV dyes.

2. Experimental

2.1. Preparation of ZnO Nanoparticles

Zinc nitrate hexahydrate (Zn(NO3)2·6H2O), ammonium hydrogen carbonate (NH4HCO3), polyethylene glycol 400 (PEG 400) and, ethanol were obtained from commercial sources as analytical reagents and used without further purification. Typical preparation process as follows: 23.80 g Zn(NO3)2·6H2O were dissolved into 200 ml anhydrous ethanol, 2.0 g PEG 400 were added slowly into the obtained solution under magnetic stirring. Then, 15.80 g NH4HCO3 were dissolved into 140 ml distilled water and 200 ml ethanol. The above Zn(NO3)2 solution was added dropwise into the NH4HCO3 solution under stirring. The resulting white was filtrated and washed with 1.0 M NH4HCO3 solution and ethanol several times, and dried at 80˚C for 6 h to produce white precursor. The dried precursor was further calcined at 400˚C for 2 h to obtain ZnO nanoparticles [2].

2.2. Photoelectrode Preparation

The procedure for fabricating a ZnO-coated working electrode of a DSSC (Figure 1) is as follow: 2 g of ZnO was ground in a mortar with of 2 ml of water, 8 ml ethanol, 0.2 ml of acetylacetone and 0.1 ml Triton X-100. The resulting paste was spread on the top of a FTO-glass substrate (transmission > 70% in visible and sheet resistance 20 W/square). After air drying, the film electrode was fired for 30 min. at 200˚C. The resulting film thickness was about 20 mm. The dye-sensitized electrodes were prepared by immersing the films in Orange IV

Figure 1. Schematic of the DSSC with a ZnO-coated electrode.

(sigma) and Eosin Y (sigma) ethanol solution (0.1 mM) overnight at room temperature.

2.3. Assembling the DSSCs

The dye-sensitized electrode was assembled in a typical sandwich-type cell; namely, the identical carbon FTO counter electrode was placed over the dye-sensitized electrode, and then the electrolyte solution, containing 0.5 M KI, and 0.05 M I2 in acetonitrile, was sandwiched between the photoanode and the counter electrode by firm press and the edges of the cell were sealed. The area of the cell was 2 cm2 (1 × 2 cm2).

Direct sun light was used to illuminate the DSSC.  A digital source-meter (Keithley 2400) was used to measure the open-circuit photovoltage and the short-circuit photocurrent of the DSSC. In addition, the power conversion efficiency η of the DSSC is given by [8]:

(1)

In Equation (1), Voc, Isc, and Pin represent the opencircuit photo voltage, the short-circuit photocurrent per unit area, and the incident light power (1000 mW/cm2), respectively. Aside from this, the fill factor FF is determined by [8]:

(2)

In Equation (2), Vmax and Imax represent the voltage and the current per unit area at the maximum output power point, respectively.

3. Characterization of ZnO Nanoparticles

A detailed study of the fundamental characteristics of the ZnO was conducted by several techniques:

1) X-ray powder diffractometer (Diano Corporation USA diffractometer) with a monochromated Co radiation (l = 0.179 nm) was employed to assess the crystallinity of the ZnO at room temperature.

2) Surface morphology was investigated by SEM (Jeol JXA-840 electron probe microanalyzer).

3) The surface properties namely BET surface area was determined from N2 adsorption isotherm using conventional or classical volumetric apparatus.

4) Fourier transform infrared spectra are generated by the absorption of electromagnetic radiation in the frequency range 400 to 4000 cm−1. Different functional groups and structural features in the molecule absorb at characteristic frequencies. The frequency and intensity of absorption are the indication of the band structures and structural geometry of the molecule. FTIR spectra were taken using Thermo Avtar 370 spectrometer.

4. Results and Discussion

4.1. Characterization of ZnO Nanoparticles

XRD patterns of the ZnO are shown in Figure 2. The diffraction peaks from the ZnO at 2q = (31.9˚), (34.6˚), (36.4˚), (51.7˚), (56.7˚), (62.9˚), and (68.1˚) to the (1 0 0), (0 0 2), (1 0 1), (1 0 2), (1 0 3), (1 1 2) and (2 0 1) diffraction planes, respectively. These diffraction planes can be indexed to the Zincite structure of ZnO (DB card, No. 01-074-9940), indicating its high crystallinity [2].

The average crystallite size of the prepared ZnO was calculated using the Scherrer equation [9]. The determined average size of the prepared ZnO was found to be 40 nm.

Figure 3 shows the SEM images of the ZnO nanopowder indicating the surface morphology. As can be seen from Figure 3(a), the as-synthesized sample has a relative uniform particle diameter. The inserted selected area in Figure 3(a) indicates that the high crystallinity of ZnO, which is beneficial for the improvement of photoelectrochemical properties of its corresponding film electrode. Figure 3(b) shows the existence of some aggregates of ZnO. These aggregates were found to vary in size. The presence of the aggregates can affect the properties and performance of the resulting solar cells. The formation of aggregates of nanoparticles was enhanced by aging the ZnO paste for certain time intervals before use [2].

Figure 4 shows the FT-IR absorption spectrum of ZnO nanoparticles. The peak at 472.54 cm−1 is the characteristic absorption of Zn-O bond.

The Analyzing the hysteresis loop shapes of nitrogen isotherms based on adsorption-desorption isotherms was studied. The as-prepared ZnO show a type-II adsorp-

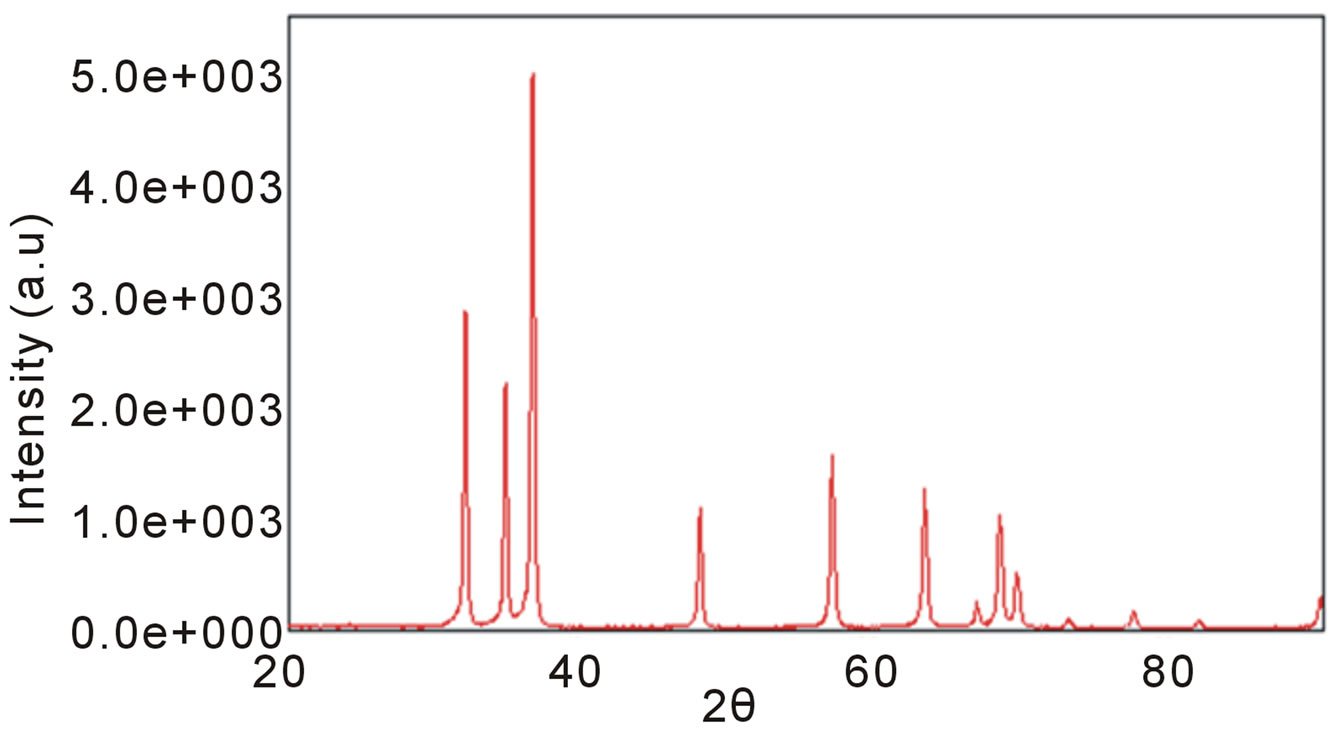

Figure 2. X-ray diffraction patterns of ZnO powder.

Figure 3. SEM images of the prepared ZnO powder.

tion-desorption isotherm, confirming that the sample is mesoporous [10]. The surface area and the average pore radius were calculated as method reported elsewhere [11]. The surface area is 2.96 m2/gm and the average pore radius of about 2 nm. Moreover, the hysteresis loop would suggest that the shape of pore is a wide-mouth pore

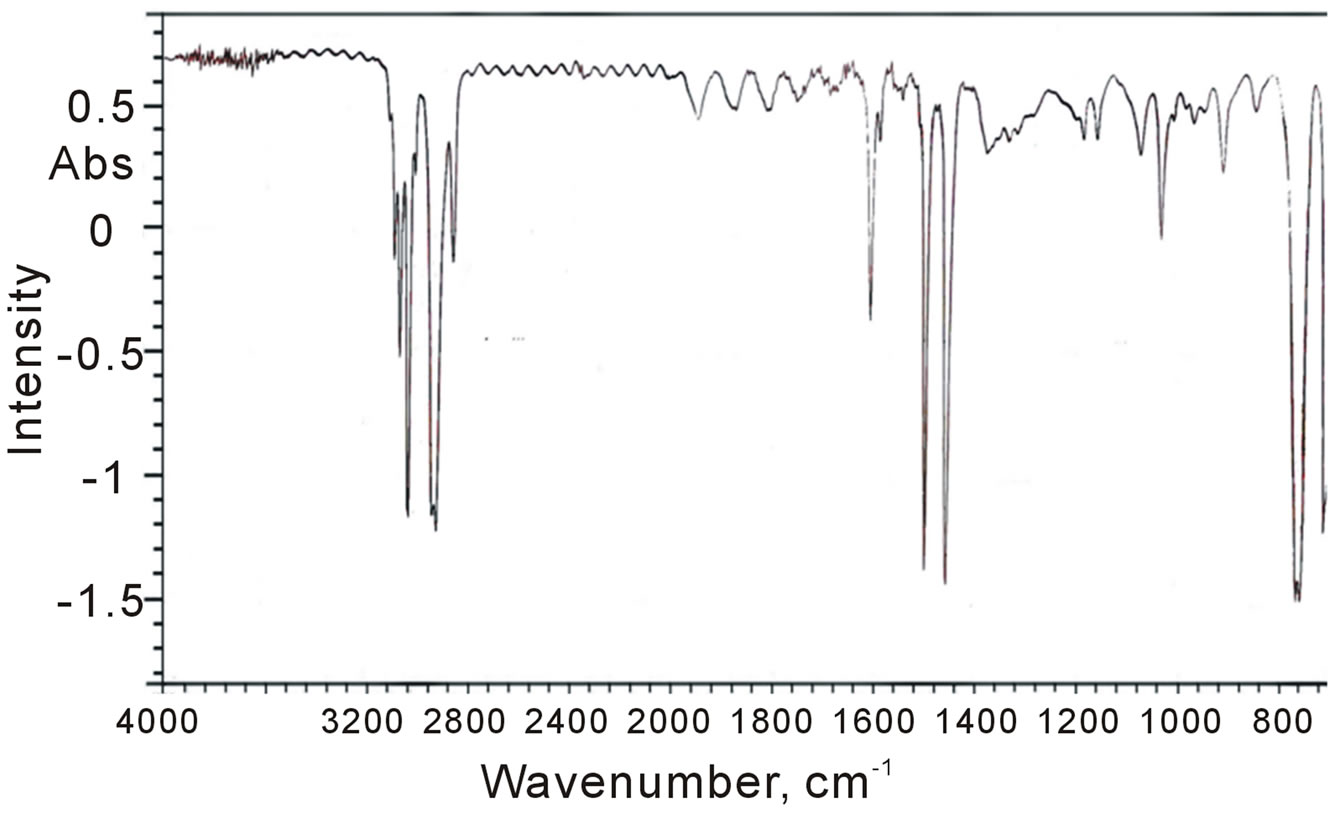

Figure 4. FTIR spectra of ZnO powder.

shape. This type of porous photoelectrode surface permits a better wetting of the film by the adsorbed dye.

Thus, the obtained results show that the prepared ZnO powder demonstrates a great potential for use as electrode material in dye-sensitized solar cell.

4.2. Voc, Isc, (, and I-V Curve of DSSC

Figure 5 shows the I-V curves of the DSSCs with various types of organic dyes under illumination. It was found that the cell sensitized with Orange IV dye showed the largest area of the current-density curve, indicating that this cell generated the highest output power. Meanwhile, the cell utilizing the Eosin Y dye showed the smallest area of the current-density curve, generating the lowest power. However, it was noticeable that the I-V curve areas of the cells were not much different, leading to small differences in the photovoltaic parameters presented in Table 1. From the table, it can be seen that the DSSC with Orange IV dye performed with the highest Isc, Voc and h. Meanwhile, the device sensitized with the Eosin Y demonstrated the lowest Isc, Voc and h. This leads to more electrons being injected from Orange IV dye molecules to the conduction band of ZnO upon light illumination, resulting in an enhancement of the photovoltaic parameters of the cell such as Isc and h. Moreover, the molar extinction coefficient of Orange IV was measured to be over 11.12 × 104 l·mole−1·cm−1, while the molar extinction coefficient of Eosin Y was approximately 3.12 × 104 l·mole−1·cm−1. Due to the higher extinction coefficient of Orange IV, fewer dye molecules need to be adsorbed on the semiconductor surface in order to achieve high efficiency results. As a result, the maximum efficiency of cells sensitized with Orange IV can be achieved for a lower film width than for cells sensitized with Eosin Y.

5. Conclusion

A ZnO nanoparicle was prepared, and it was then applied as working electrode in a solar cell sensitized with

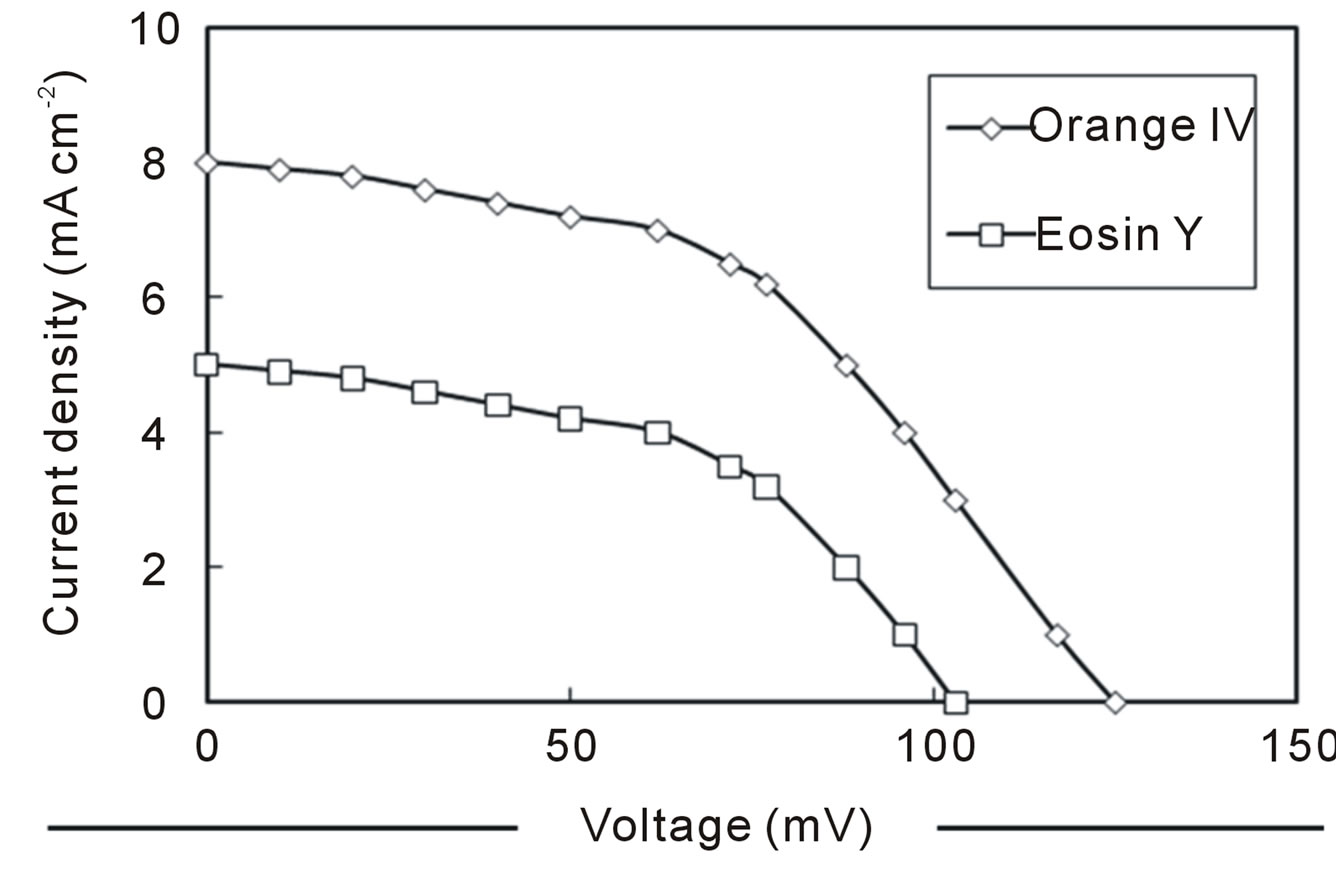

Figure 5. Photocurrent-voltage characteristics of dye sensitized solar cell device based on ZnO electrode.

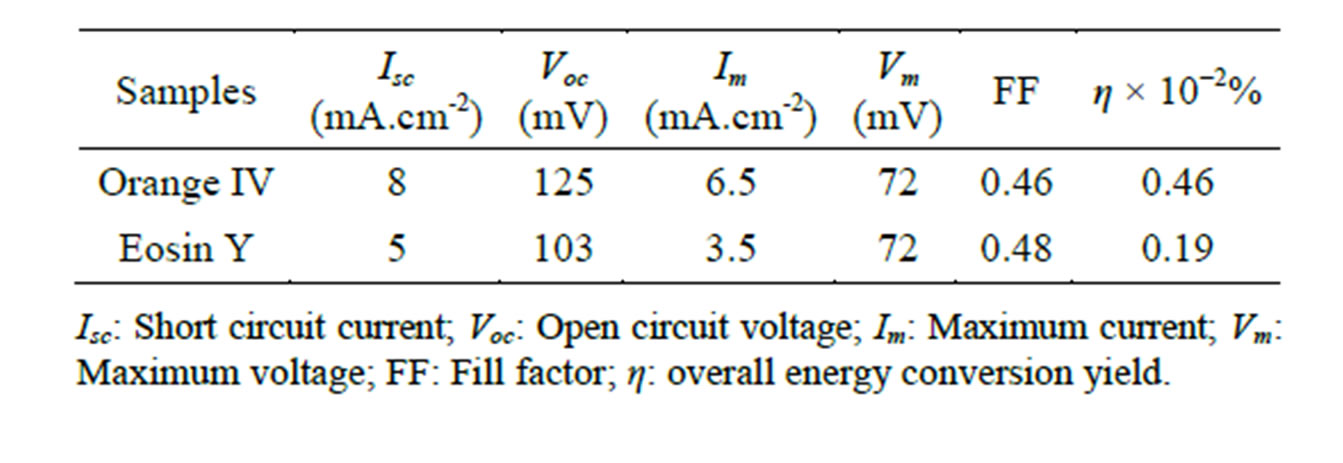

Table 1. Photovoltaic parameters of Orange IV and Eosin Y dye-sensitized nanocrystalline ZnO solar cells.

Orange IV and Eosin Y dyes. The cells sensitized with Orange IV dye demonstrated the best photovoltaic performance compared with the cell sensitized with Eosin dye. The cell sensitized with Orange IV showed the highest short-circuit density, Isc, of 8 mA·cm−2 and conversion efficiency of 0.46%.
